282825-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS VERT 5.08MM Pluggable Terminal Blocks HDR 2P VERT 5.08MM Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5.08mm 节距 2 路 公 绿色 直 PCB 管座, 面板安装, 焊接端接 TERMI-BLOK HEADER,ASSY90 2P.5, |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 300 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
| Voltage - Supply (Min) | 300VAC | ||
Mechanical
| Color | Green | Depth | 8.35 mm |
| Pitch | 5.08 mm | Width | 8.35mm |
| Height | 12 mm | Length | 10.16mm |
| Material | 聚酰胺 | End Style | 不带 |
| Packaging | Bulk | Body Color | 绿色 |
| Orientation | 直 | Termination | Solder |
| Length - Pin | 3.5 mm [ .138 in ] | 2nd Connector | 否 |
| Housing Color | Green | Mounting Type | Through Hole |
| Connector Type | 公插 | Contact Finish | Tin |
| Flange Feature | 是 | Mounting Style | Through Hole |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Length - Overall | 10.16 mm | Package Quantity | 300 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Header, Male Pins, Shrouded (2 Side) |
| Thread/Screw/Hole Size | 不带 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | Buchanan | Number of Levels | 1 |
| Interconnect System | 不带 | Positions Per Level | 2 |
| Side-by-Side Stacking | 是 | ||
Documents & Media
Similar Parts
284041-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm ST Thru-Hole 15A/Contact Pluggable Terminal Blocks PLUG 2P VERT 5.08mm Terminal Block Connectors TERM BLOCK PLUG 2POS 5.08MM Conn Terminal Block F 2 POS 5.08mm ST Thru-Hole 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK VERTICAL PLUG S

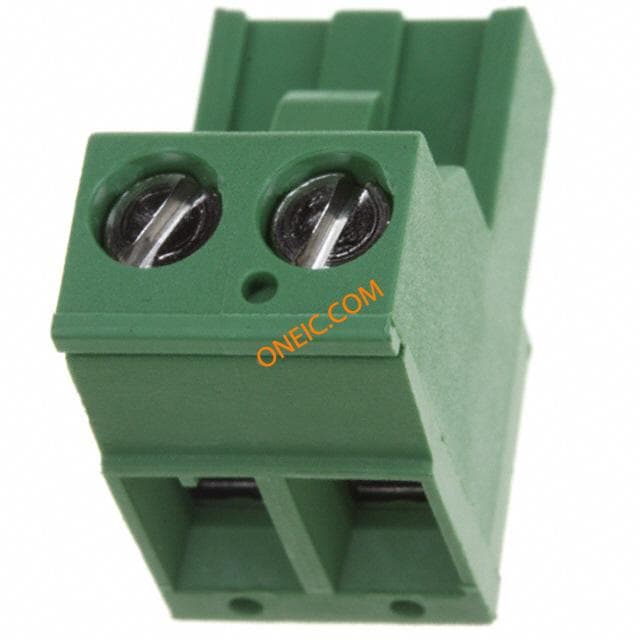

796634-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 2POS STR 5.08MM Non-Fused Terminal Block Cable Mount 2 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 2P Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorHousing Color = GreenNot StackedWithout Threaded FlangeWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK PLUGGABLE, 2POS, 30-12AWG Conn;TermBlk;Plug;2;5.08mm;SideWireEntry;30-12;Green; Pluggable terminal block; plug; female; straight; 0.03÷2.5mm2 TE Connectivity 2 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 2 POS 5.08MM R/A PLUG,TRM BLK
284047-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks 2P 12-30 AWG TIN Terminal Block Connectors TERM BLOCK PLUG 2POS 5.08MM Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 15A/Contact Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK VERTICAL PLUG STACK
1-1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRA Pluggable Terminal Blocks Crimp Style housing 5.08 Gray 2 posn TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount
1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRE Pluggable Terminal Blocks Crimp Style housing 5.08 Gre Eurostyle Terminal Blocks TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Product Highlights:ConnectorType of Connector = PlugShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUGGABLE, 2POS Crimp Style housing, 5.08, Green, 2 posn

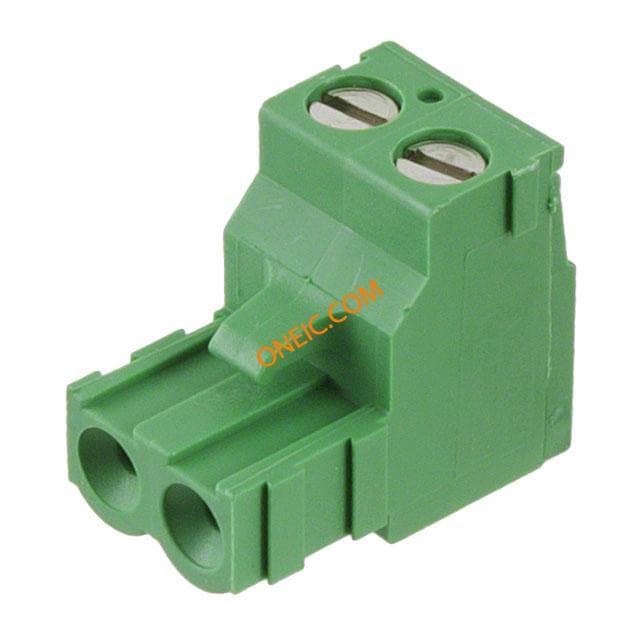

282807-2
