281838-4
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts HOUSING HE13 HE14 COSI 4 P 4 way single row HE14 crimp socket shell Headers & Wire Housings 4 POS RECEPT VERT HE14 Conn Housing RCP 4 POS 2.54mm Crimp ST Loose Piece Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 4WAY 4waysinglerowHE14crimpsocketshell Connector: wire-board; HE14; plug; female; for cable; PIN:4; 2.54mm Cable socket housing Pitch2.54 mm Poles 1 x 4 HE-14, 281838-4, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMPMODU HE13 / HE14 Series | Current Rating (Max) | :3A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Blue | Depth | 15mm |
| Pitch | 2.54 mm | Width | 5.08mm |
| Height | 5.08 mm | Length | 10.16mm |
| Weight | 0.001001 | Packaging | Bulk |
| Row Spacing | 2.54 mm | Contact Type | Female Socket |
| Pitch - Post | 2.54 [.100] | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | Straight |
| Connector Type | Crimp, Insulation Displacement Crimp (IDC) | Mounting Style | for cable |
| Number of Rows | 1 | Package / Case | Receptacle |
| Housing Material | PBT - GF | Length - Overall | 10.16 mm |
| Package Quantity | Loose Piece | Connector - Cable | plug |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| 1st Connector Mounting Feature | 1x4 | ||
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Series | HE13 / HE14 | Preloaded | No |
| CAD Drawing | 3D CAD Model | Coded, Keyed | No |
| Product Type | Housing | Adapter Series | HE14 |
| Number of Units | 1 | ||
Documents & Media
Similar Parts
281786-4
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Loose Piece ASL & HE 13/14 PLUG HE14 IDC 180 4 P AWG 28-26 4 way single row HE14 IDT cable socket Headers & Wire Housings 4P 2.54 mm Socket Female Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE SOCKET IDT, 1ROW, 4WAY 4waysinglerowHE14IDTcablesocket Plug; wire-board; female; PIN:4; 2.54mm; IDC; for cable; HE14 TE Connectivity AMPMODU HE14 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体

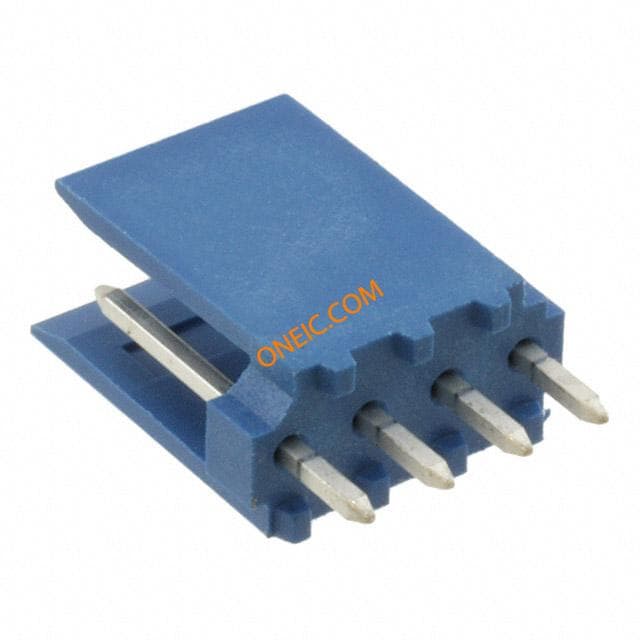

281695-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS IDC STR T/H TIN TE Connectivity HE1402 Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings HEADER VERT 4 POS HE14 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Loose Piece Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, THT, VERT, 2.54MM, 1ROW, 4WAY 4way1rowstraightHE14shroudedheader Connector: wire-board; HE14; socket; male; THT; PIN:4; straight Pin header straight Pitch2.54 mm Poles 1 x 4 HE-14, 281695-4, TE Connectivity TE Connectivity AMPMODU HE14 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接 , 通孔 HEADER HE14 STRAIGHT 4 P
734043-1
te connectivity / amp
Hand Tools For Idc Applications, Pistol Grip Hand Tools PISTOL GRIP HT TOOL HAND PISTOL GRIP PRODUCTION TOOL, HE14
182734-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN CONTACT 24-28AWG TIN CRIMP HE14 crimp terminal Headers & Wire Housings CRIMP SOCKET TIN HE14 182734-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Terminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET,HE14,PK200 HE14crimpterminal Contact; female; 0.08÷0.24mm2; 24÷28AWG; HE14; tinned; crimped Crimp socket Female, 182734-2, TE Connectivity TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT REC HE14 COSI LOOSE P
947679-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HE-14 P G HANDTOOL TOOL HAND CRIMPER HE-14 AMP HE14 crimp tool TOOL, HAND, CRIMP, HE14 AMPHE14crimptool Tool: for crimping; terminals; 28÷24AWG; Series: HE14; 195mm Crimping tool, 947679-1, TE Connectivity TE Connectivity HE13/14 Crimp-on & Snap-in Contacts 压接工具 , 适用于28 → 24 AWG 线规格 HE-14 P.G.HANDTOOL
525421-5
te connectivity / amp
Connector/Terminal-To-Tool Reference Hand Tools PROTOTYPING TOOL M/F 7 AMP HE14 IDT prototyping tool Tee Handled Insertion Tool PROOTYPE TOOL, HE14 AMPHE14IDTprototypingtool TE Connectivity HE14 系列 端接工具端接工具

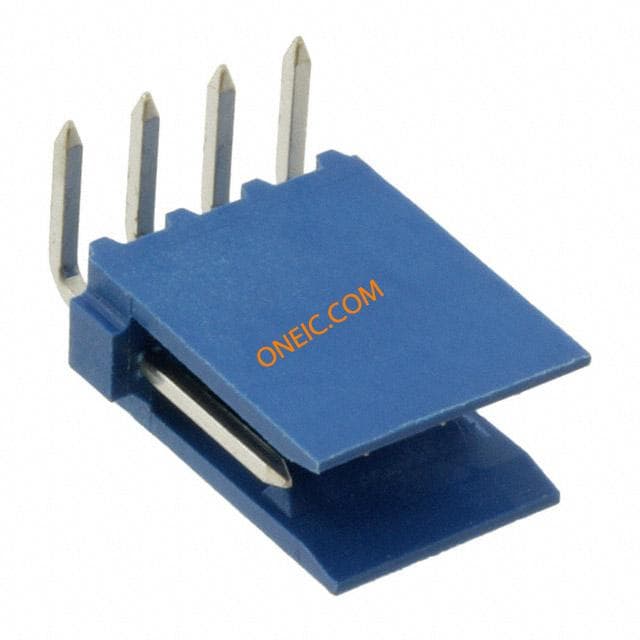

281698-4
