281786-8
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Loose Piece ASL & HE 13/14 PLUG HE14 IDC 180 8 P AWG 28-26 8 way single row HE14 IDT cable socket Headers & Wire Housings PLUG HE14 IDC 180 8P AWG 28-26 Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE SOCKET IDT, 1ROW, 8WAY 8waysinglerowHE14IDTcablesocket TE Connectivity AMPMODU HE14 系列 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :HE, NFC |
| RoHSELV Compliance | RoHS compliant / ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - AMPMODU HE14 Series | Voltage - Working | :500V |
| Contact Resistance | :30mohm | Current Rating (Max) | :3A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Blue | Pitch | 2.54 mm |
| Width | :5.1mm | Length | :17.8mm |
| Weight | 0.002 | Material | :Glass Filled Polyester |
| Packaging | Bulk | Wire Type | Discrete |
| Wire Gauge | 26-28 AWG | Row Spacing | 2.54 mm |
| Termination | :IDC | Contact Type | Socket |
| Lead Spacing | :2.54mm | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | Straight |
| Connector Type | Housing | Contact Finish | Tin |
| Mounting Style | Wire | Number of Rows | 1 |
| Connector Style | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | PBT - GF | Package Quantity | Loose Piece |
| Primary Material | Phosphor Bronze | Cable Termination | IDC |
| Termination Style | Crimp / Insulation Displacement Crimp (IDC) | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Blue | Number of Contacts | 8 |
| Contact Termination | :IDC / IDT | Insulation Diameter | 1.0 |
| Number of Positions | 8 | Row Spacing - Mating | 2.54 |
| Center Contact Finish | 2.54 | Mated Stacking Heights | Without |
| Contact Material - Mating | Tin | Wire Gauge or Range - AWG | 0.08-0.15² [28-26] |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Housing | Gender | RCP |
| Series | HE13 / HE14 | CAD Drawing | 3D CAD Model |
| Coded, Keyed | No | Manufacturer | AMP |
| Product Type | Connector | Other Specifications | Wire/Cable |
| For Use With/Related Products | Centerline Receptacle | ||
Environmental
| Mating Cycles | :30 | Operating Temperature | :105°C |
Documents & Media
Similar Parts

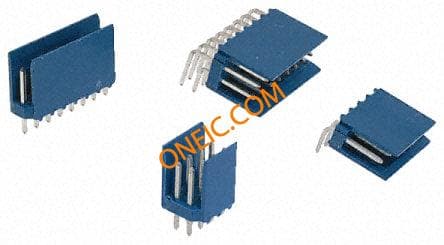

281695-8
