280390-2
| Manufacturer | |
| Description | Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DUAL R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 2X08P HDR SHROUDED R/A 15 AU Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16way2row,(2x8),r/ashroudedheader Socket; wire-board; male; PIN:16; 2.54mm; THT; AMPMODU MOD II PCB header 2 x 8P, 280390-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 2X8P MODU II SHRD HDR,RT ANG,0.38AU |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 100 | Number of Poles | 2 x 8 |
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Current Rating (Max) | 3 A | Voltage - Protection Rating (VPR) | 750 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 2.59 g | Base Type | 不带 |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Lead Style | 圆形, 圆形 |
| Shaft Size | .025 | Stabilizer | 不带 |
| Orientation | angled 90° | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Pitch - Post | 2.54 [.100] | 1st Connector | No |
| 2nd Connector | With | Mounting Type | Right Angle |
| Connector Type | Shrouded | Contact Finish | Gold |
| Mounting Style | 标准 | Number of Rows | 2 |
| Package / Case | 3-Sided | Shell Material | 3- 面 |
| Connector Style | 90° | Insert Material | 黄铜 |
| Locking Feature | Detent Windows | Profile (W x H) | Standard |
| Contact Material | Brass | Housing Material | Thermoplastic Glass Reinforced |
| Mounting Feature | Without | Package Quantity | 500 |
| Panel Mount Type | Without | Primary Material | WiretoBoard |
| Termination Rows | 焊接 | Connector - Cable | socket |
| Termination Style | Through Hole | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 16 |
| Termination Finish | 带有 | Number of Positions | 16 |
| 1st Connector Gender | Male | Connector - AC Input | 0.4 µm Au |
| Length - Post (Mating) | 6.6 mm | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 6.60 [0.260] | Surface Mount Land Size | No |
| Termination Post Length | 3.50 [0.138] | Contact Finish Thickness | 15µin (0.38µm) |
| Contact Material - Plating | gold plated | Static Discharge Shielding | 不带 |
| 1st Connector Mounting Feature | 2x8 | ||
Product Info
| Mfr | 1.65 | Spg | 27 |
| Type | Wire to Board | Design | Pin strip, double row 90° |
| Gender | HDR | Series | AMPMODU |
| Coverage | 覆盖 | Key Type | 否 |
| CAD Drawing | 3D CAD Model | Manufacturer | AMP |
| Product Type | Header | Adapter Series | AMPMODU MOD II |
| Amplifier Type | 22.9 | Number of Units | 1 |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Ingress Protection | 带罩 | Operating Temperature | -55 â +105 |
| Operating Temperature - Junction | 否 | ||
Documents & Media
Similar Parts
926476-8
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings HSG RECPT 2X08P .100 AMPMODU Headers, Housings & Contacts CONN RCPT 16POS DL .100 CRIMP Connector,8way skt shell double row Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 2X8WAY 8WSKTSHELLD/R Crimp housing Pitch2.54 mm Poles 16 Double row / straight AMPMODU MOD IV, 926476-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 连接器外壳 MOD 4 HSG
280366
TE Connectivity AMP Connectors
Conn Housing RCP 16 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 16POS DL CRIMP 16 way (2x8) MODU crimp socket shell Headers & Wire Housings 2X08 POS RECPT Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 8X2WAY 16WSOCKETSHELL(2X8) Plug; wire-board; female; PIN:16; w/o terminals; 2.54mm; for cable Crimp housing 2 x 8P, 280366, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2 行 2.54mm 节距 16 路 直 母 PCB 壳体 HOUSING AMPMODU II CONT RECPT

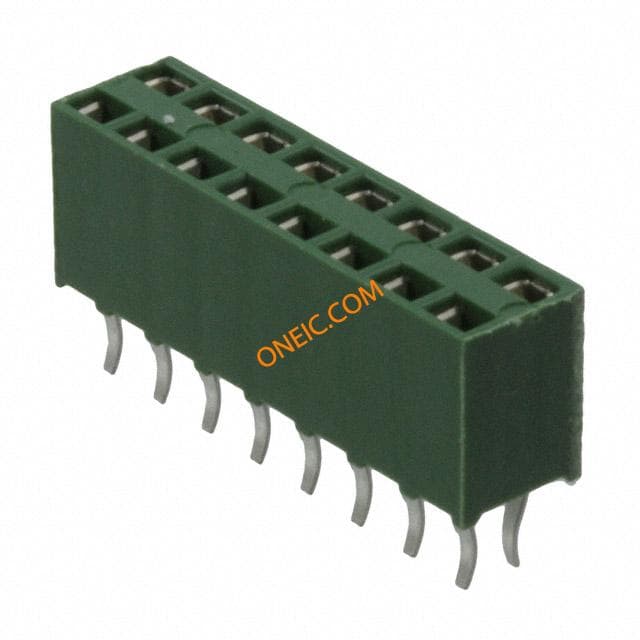

215307-8
