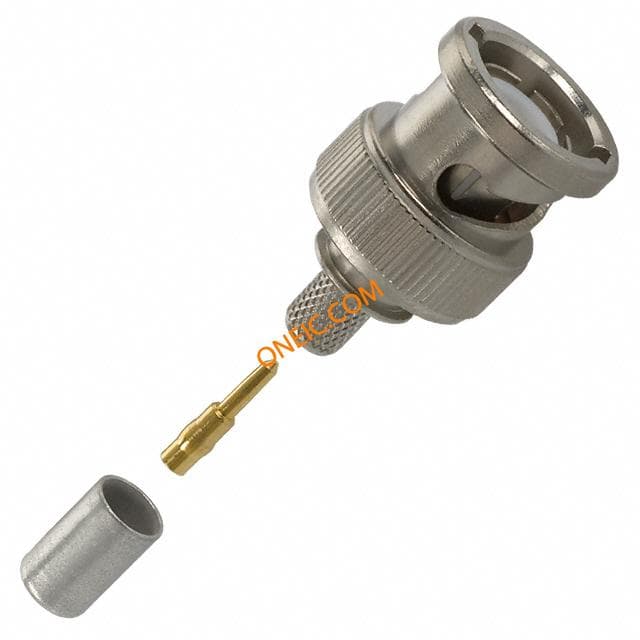

225395-1
| Manufacturer | |
| Description | Conn BNC PL 50Ohm Crimp ST Cable Mount Gold BNC RF Connectors CONN BNC PLUG STR 50 OHM CRIMP BNC plug, dual crimp,RG58, 58A, 58B, 58C RF Connectors / Coaxial Connectors D.C. PLUG 50 OHM Conn BNC PL 50Ohm Crimp ST Cable Mount Gold Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP BNCDUALCRMPMIL-TYP,BNCPLUGDUALCRIMPRG58,A,B,C Straight Connector Crimp-On RG-58 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG58 A/U, RG58 B/U, RG58 C/U, RG58/U电缆, 镀镍本体 BNC PLUG DUAL CRIMP RG58,A,B,C |
| Category |
Business
| Product | Connectors | Other Names | A1100 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85366910 |
| Rad Hardened | No | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500 V |
| Frequency - Max | 4GHz | Insulation Resistance | 5000 MOhms |
Mechanical
| Size | Standard | Weight | 0.009 |
| Diameter | 14.53 mm | Packaging | Bulk |
| Cable Type | RG-58, RG-58A, RG-58B, RG-58C | Body Finish | Nickel |
| Cable Group | RG-58, 58A, 58B, 58C | Orientation | Straight |
| Termination | Crimp | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug, Male Pin |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | Cable |
| Plating - Body | Nickel | Connector Style | BNC |
| Contact Material | Brass | Length - Overall | 30.94 mm |
| Primary Material | BNC | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Fluoropolymer (FP) | Insulation Material | Teflon |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | ||
Product Info
| Type | BNC | Gender | PL |
| Polarity | Normal | Connection Type | Coaxial Cable |
| RF Family/Standard | 225395 | ||
Environmental
| Operating Temperature | - 65 C to + 165 C | ||
