223956-1
| Manufacturer | |
| Description | Connector Accessories Guide Pin Stainless Steel Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE PIN FOR UNIV PWR MOD Hard Metric Connectors POWER MODULE Connector Accessories Guide Pin Stainless Steel Product Highlights:Guide PinNot KeyedThread Length = 6.20 mmThread Size = M4 x 7-6GSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE PIN, Z-PACK UNIVERSAL POWER MODULE GUIDEPIN,UNIVERSALPOWERMODULE,6.20MM,M4X7-6G M4 6.2 mm Thread Length Vertical Connector Guide Pin for Universal Power Module UNV PWR MDL, GUIDE PIN LOCT PL |
| Category |
Business
| Other Names | 2239561 | Product Category | Hard Metric Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Mechanical
| Depth | 7.8 mm | Height | 5.92 mm |
| Weight | 0.004 | Packaging | Bulk |
| Thread Size | M4 x 7-6G | Thread Length | 6.20 [0.244] |
| Mounting Style | PCB | Number of Rows | 1 |
| Insert Material | Passivated Stainless Steel | Contact Material | Stainless Steel |
| Housing Material | Zinc | Length - Overall | 31.36 mm |
| Termination Style | Screw | Number of Contacts | 1 |
Product Info
| Type | Guide Pin | Series | :M4 |
| Coded, Keyed | No | Product Type | Guide Pin |
| Accessory Type | Guide Pin | Specifications | M4 Thread |
| RF Family/Standard | 223956 | For Use With/Related Products | :Z-Pack 2 mm HM, Z-Pack HS3, Z-Pack HM-Zd and Multi GIG RT2J |
Documents & Media
Similar Parts

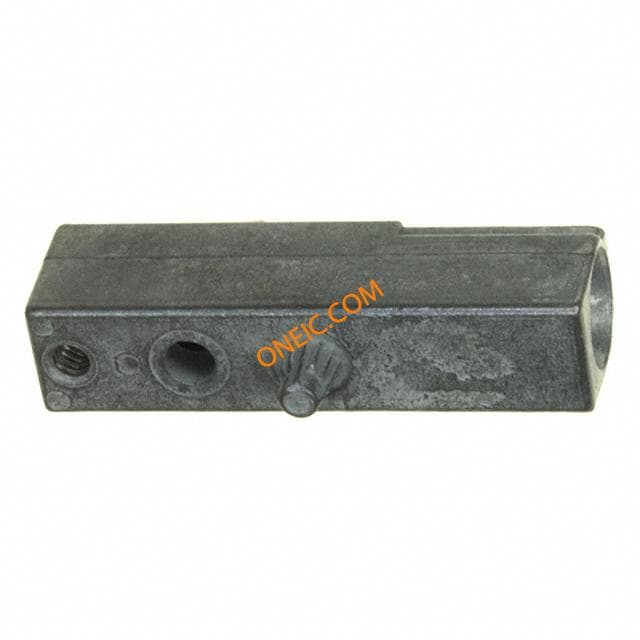

5223957-1
te connectivity / amp
Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN MODULE FEMALE GUIDE 2MM Guide female r/a U-P Module 4-40 Hard Metric Connectors ACC:FEM GUIDE MOD B-PLANE UPM Connector Accessories Guide Module Zinc Alloy Die Cast Chromate Finish Product Highlights:Guide ModuleNot KeyedThread Size = 4-40Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, GUIDE MODULE, Z-PACK UNIVERSAL POWER MOD GUIDEMODULE,UNIVERSALPOWERPACK,4-40,RIGHTANGLE Universal 4-40 Thread Right Angle Power Guide Module TE Connectivity 背板导柱 UPM GUIDE MODULE

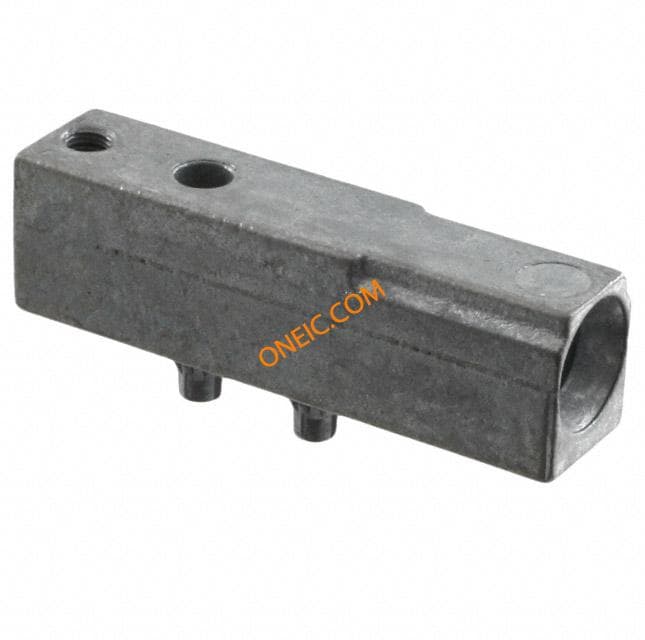

5223979-1
te connectivity / amp
Connector Accessories Guide Module Zinc Alloy Die Casting Chromate Conversion Finish Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN GUIDE MODULE RT ANG High Speed / Modular Connectors UPM GUIDE MODULE Connector Accessories Guide Module Zinc Alloy Die Casting Chromate Conversion Finish Product Highlights:Guide ModuleNot KeyedSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, Zinc Alloy Die Casting Connector Accessory Guide Module UPM GUIDE MODULE

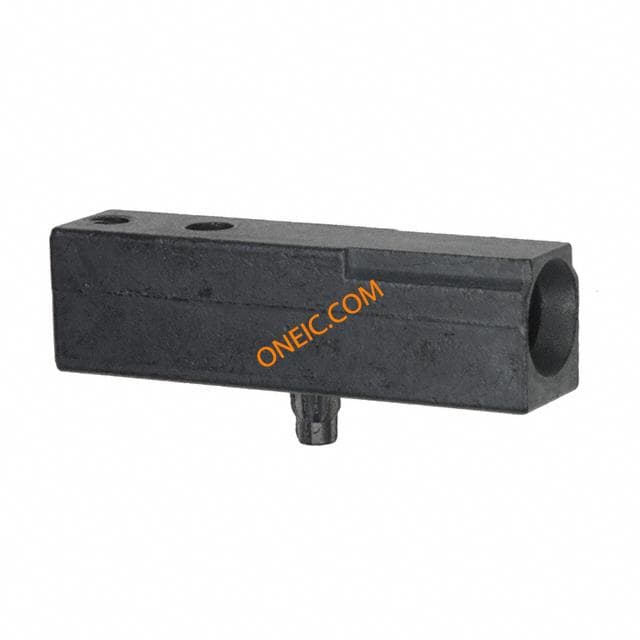

223957-1
