211839-1
| Manufacturer | |
| Description | Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port CPC Connectors CONN RCPT CPC 24POS STD SER 1 Standard Circular Connector REC PIN 23-24 PNL Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2424 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, RECEPTACLE, CIRCULAR, 24WAY CPC RCPT SZ 23-24 W/THRD INSRT |
| Category |
Business
| Tradename | CPC Series 1 | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Number of Channels | 24 | ||
Mechanical
| Depth | 44.45 mm | Height | 44.45 mm |
| Sealed | No | Weight | 0.05 |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 23 | Orientation | A |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 1-3/8 - 18 UNEF-2A | Contact Form | 24Signal |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Panel Mount |
| Connector Type | Receptacle for Male Contacts | Fastening Type | Threaded |
| Mounting Style | Panel | Connector Style | Receptacle |
| Insertion Angle | :23-24 | Material - Body | :Nylon (Polyamide) |
| Housing Material | Thermoplastic | Length - Overall | 34.29 mm |
| Panel Mount Type | Square Flange | Termination Style | Wire |
| 1st Contact Gender | Pin | Mating Orientation | Keyed |
| Number of Contacts | 24 | Insulation Diameter | 2.54 [0.100] |
| Number of Positions | 24 | Shell Size - Insert | All Plastic |
| Shell Material, Finish | Thermoplastic | Thread/Screw/Hole Size | 4-40 |
| 1st Connector Mounting Type | :Panel | 2nd Connector Mounting Feature | Standard |
| Shell Size - Insert (Convert To) | 23-24 | ||
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | RCP | Series | Series 1 |
| Key Type | A | Preloaded | No |
| Product Type | Connector | RF Family/Standard | 211839 |
| Other Specifications | Without | For Use With/Related Products | Pin Contacts |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
206837-3
te connectivity / amp
Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Standard Circular Connector PLG ASSY SIZE 23 24P CPC Connectors CONN CPC PLUG 24POS W/O SOCKET Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG ASSEMBLY SIZE 23-24
206837-1
te connectivity / amp
Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 24 POSITION shell size 23 Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 24 WAY, CABLE ConnectorHousing;CPCPlugAssy;24Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:24 Plug CPC 1 24P Male 23, 206837-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-24
213812-1
te connectivity / amp

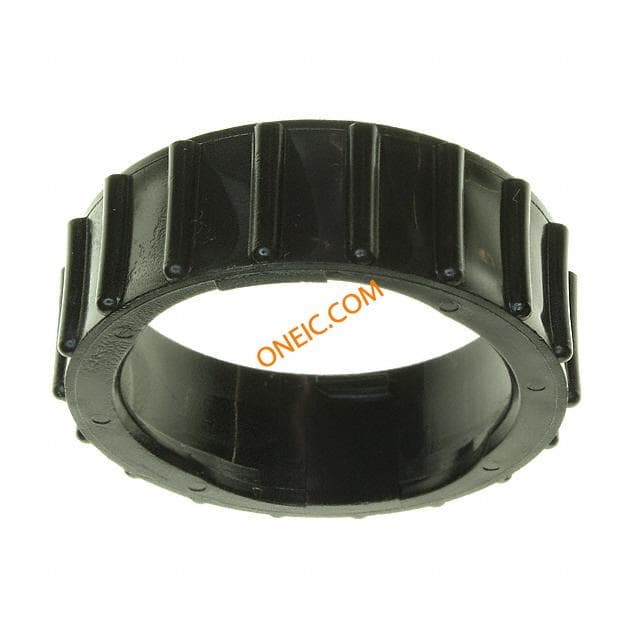

Connector Accessories Coupling Ring Polyester Black CPC Accessories CONN RING COUPLING CPC SIZE 23 Standard Circular Connector COUPLING RING SZ 23 Connector Accessories Coupling Ring Polyester Black Product Highlights:Coupling RingShell Size = 23Polyester Coupling Ring MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, COUPLING RING, CIRCULAR PLASTIC CONN COUPLINGRING,SZ23,CPC COUPLING RING,SZ 23,CPC
66098-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 16-18AWG GOLD CRIMP 1.57mm pin contact 18-16 AWG type 3 Au Pin & Socket Connectors PIN 18-16 AWG GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN TYPEIIICONTACTSSTR,III+PIN,18-16,30AU/FL,STRIP MULTIMATE Type III Series 18-16 AWG Discrete Wire Crimp Signal Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-16,30AU/FL,STRIP
206837-2
te connectivity / amp
Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS SIZE 23 Standard Circular Connector CPC PLUG SZ 23-24 SMALL PACK Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:Not Preloaded24 Positions24 Signal Positions0 Power PositionsConnector Style = PlugSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG,SZ 23-24,SMALL PACK
206512-5
te connectivity / amp
Connector Accessories CPC Clamp Thermoplastic Black Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 23 BLK Series 3 cable clamp,Size 23 Standard Circular Connector LARGE CBL CLAMP 23 Connector Accessories CPC Clamp Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 23Body Style = StraightCable Diameter (Max.) = 28.58 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, SIZE 23, THERMOPLASTIC CircularPlasticConnector(CPC)CableClamp,ShellSize23,Black Cabel hood and fastener; Series: CPC; Case: size 23; UL94V-1 Cable Clamp Large ,Housing size 23, Size 1-3/8-18, 206512-5, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 28.58mm 捆束直径 CLAMP,CABLE SHELL,SIZE 23
206138-8
te connectivity / amp

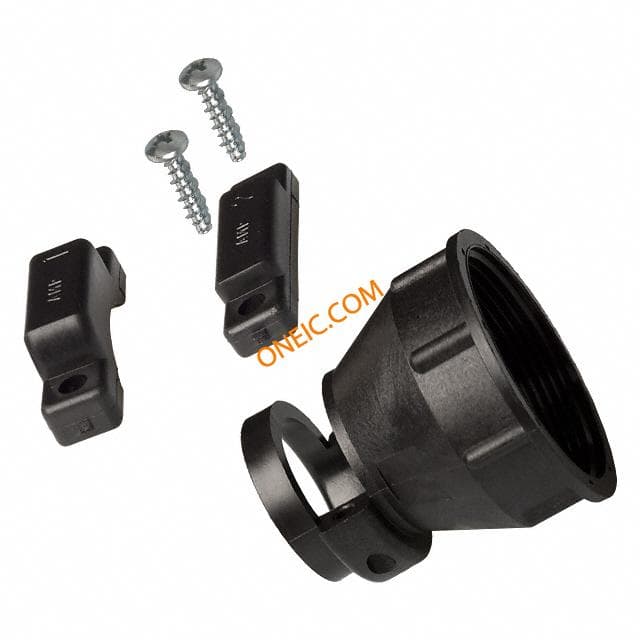

Connector Accessories CPC Cable Clamp Thermoplastic Black Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 23 BLK Cable clamp,shell size 23,CPC Standard Circular Connector STD CABLE CLAMP 23 Connector Accessories CPC Cable Clamp Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 23, M41Body Style = StraightCable Diameter (Max.) = 17.86 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, SIZE 23, THERMOPLASTIC Clamp,Cable;CPCConnectors;23,M41;0.703in.(Max.);1-3/8-18UNEF-2B Cable Clamp, Shell,Housing size 23, Size 1-3/8-18, 206138-8, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 17.86mm 捆束直径 CLAMP CBL SHELL SIZE 23
