211770-2
| Manufacturer | |
| Description | Conn CPC SKT 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CPC Connectors CONN PLUG CPC 19POS STD SER 1 19 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 19 POSITION shell size 23 Conn CPC SKT 19 POS Crimp ST Cable Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, CIRCULAR ConnectorHousing;CPCPlugAssy;19Pos.;Sz.23;Series1;FreeHang;StdSex CPC (Circular Plastic) and Circular Metal-Shell Connectors; Housing Connector Style: Plug 19 Positions 19 Signal Positions 0 Power Positions Plug CPC1 Poles=19, accepts female contacts / Free hanging/cable mount, 211770-2, TE Connectivity TE Connectivity 19路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-19 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | Yes | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | ULRecognized/CSA/VDE |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V ac | Number of Channels | 19 |
Mechanical
| Color | Black | Sealed | No |
| Weight | 2.9 | Diameter | 45.29 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 23 | Orientation | A |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 1-3/8 - 18 UNEF-2A | Contact Form | 19Signal |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug for Female Contacts |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Connector Style | Plug | Insertion Angle | :23-19 |
| Material - Body | :Thermoplastic | Material - Core | Polyester |
| Housing Material | Thermoplastic | Length - Overall | 27.43 mm |
| Primary Material | CircularPlasticConnector | Termination Style | Wire |
| 1st Contact Gender | Female | Mating Orientation | Keyed |
| Number of Contacts | 19 | Insulation Diameter | 3.81 [0.150] |
| Number of Positions | 19 | Shell Size - Insert | All Plastic |
| Shell Material, Finish | Thermoplastic | 1st Connector Mounting Type | :Cable |
| 2nd Connector Mounting Feature | Standard | Shell Size - Insert (Convert To) | 23-19 |
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | PL | Series | Series 1 |
| Key Type | A | Preloaded | No |
| Arrangement | 23-19 | CAD Drawing | 3D CAD Model |
| Manufacturer | Series1 | Product Type | Connector |
| RF Family/Standard | 211770 | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Socket Contacts |
Environmental
| Ingress Protection | IP65 | Operating Temperature | +105°C |
Similar Parts

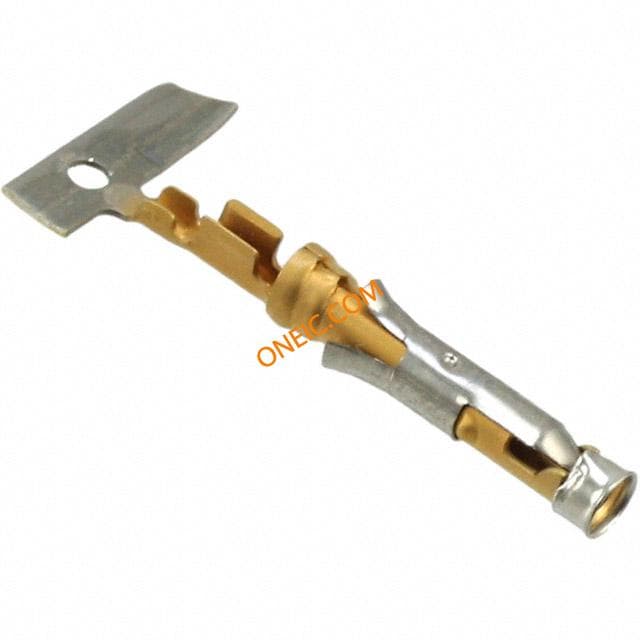

66428-4
