208874-1
| Manufacturer | |
| Description | Conn D-Subminiature SKT 44 POS 2.28mm Solder ST Thru-Hole 44 Terminal 1 Port D-Sub High Density Connectors RCPT ASSY 44 POS Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN RCPT 44POS VERT W/SOCKET Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 90Housing Gender = ReceptacleContact Gender = SocketDensity = HighSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECEPT ASSY,44 POSN,AMPLIMITE |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 1 | Product Category | D-Sub High Density Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | Qualification | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | Not ELV/RoHS compliant |
| Other Specifications | 否 | Approval Agency Marking | No |
Electrical
| Connector Impedance | No | Current Rating (Max) | 5A |
| Connector - Voltage Input | 否 | ||
Mechanical
| Pitch | 2.28 mm | Outline | 3 |
| Material | Stainless Steel | Packaging | Bulk |
| Shell Size | 3 | Termination | Solder |
| Contact Size | 22 | Contact Type | Posted |
| Non-Magnetic | No | Shell Finish | 镉 |
| Mounting Type | Through Hole | Shell Plating | Cadmium |
| Terminal Size | 22 | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Through Hole | Number of Rows | 4 |
| Shell Material | Steel | Connector Style | D-Sub, High Density |
| Insert Material | 含铅镍铜 | Housing Material | 钢 |
| Panel Mount Type | 垂直 | Connector - Cable | 否 |
| Termination Style | Through Hole | Number of Contacts | 44 |
| Number of Positions | 44 | Bushing, Grommet Type | No |
| Mounting Hole Diameter | 3.05 [.120] | Shell Material, Finish | Steel, Cadmium Plated |
| Contact Material - Post | 不锈钢 | Termination Post Length | 6.99 [0.275] |
| Contact Finish Thickness | .64 mm [ .025 in ] | Shell Size, Connector Layout | 3 (DB, B) High Density |
Product Info
| Note | Replacement socket contact Part Number 207684-4. | Type | D-Subminiature |
| Gender | SKT | Series | 90 |
| Density | High | Socket Type | With |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | Printed Circuit Board | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Online Document
Similar Parts
M24308/4-19F
te connectivity / amp
Conn D-Subminiature PIN 44 POS Crimp ST Cable Mount 44 Terminal 1 Port
$326.3320
Details

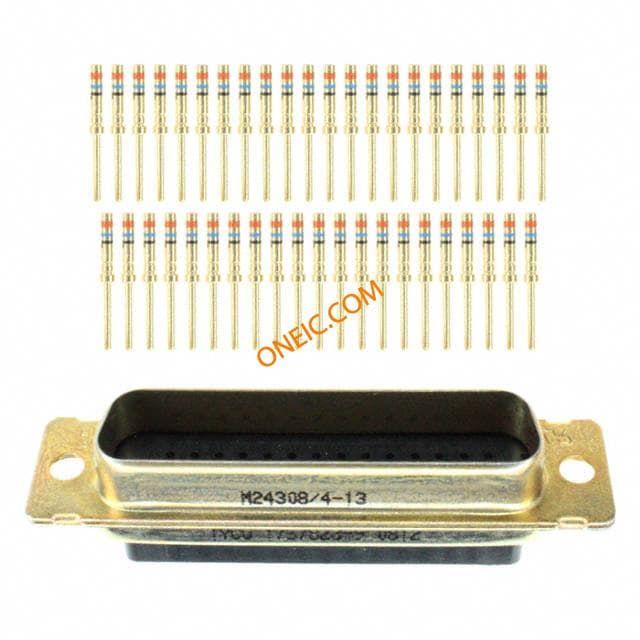

M24308/4-13
te connectivity / amp
Conn D-Subminiature PL 44 POS Crimp ST Cable Mount 44 Terminal 1 Port CONN D-SUB PLUG HD 44POS CRIMP Conn High Density D-Sub PIN 44 POS Crimp ST Cable Mount 44 Terminal 1 Port
$172.0400
Details

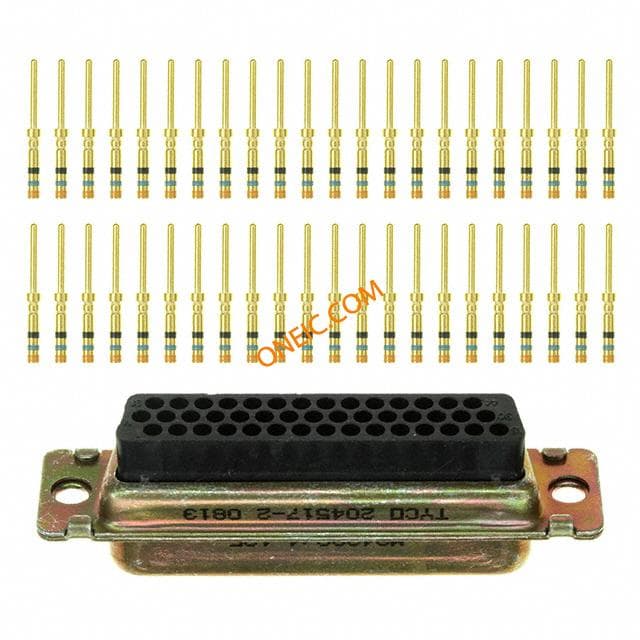

M24308/4-13F
