208872-1
| Manufacturer | |
| Description | Conn D-Subminiature SKT 15 POS Solder ST Thru-Hole 15 Terminal 1 Port D-Sub High Density Connectors RCPT 15 POS STR PCB Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT 15POS STR PCB Conn D-Subminiature SKT 15 POS Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To Printed Circuit BoardNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECPT ASSY,15 POSN,AMPLIMITE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | D-Sub High Density Connectors | Standard Package | Bulk |
Compliance
| RoHS | No | Qualification | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | Not ELV/RoHS compliant |
| Other Specifications | 否 | Approval Agency Marking | No |
Electrical
| Connector Impedance | No | Current Rating (Max) | 5A |
| Connector - Voltage Input | 否 | ||
Mechanical
| Outline | 1 | Material | Stainless Steel |
| Packaging | Bulk | Shell Size | 1 |
| Termination | Solder | Contact Size | 22 |
| Contact Type | Posted | Non-Magnetic | No |
| Shell Finish | 镉 | Mounting Type | Through Hole |
| Shell Plating | Cadmium | Terminal Size | 22 |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Through Hole |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Insert Material | 含铅镍铜 |
| Housing Material | 钢 | Panel Mount Type | 垂直 |
| Connector - Cable | 否 | Termination Style | Through Hole |
| Number of Contacts | 15 | Number of Positions | 15 |
| Bushing, Grommet Type | No | Mounting Hole Diameter | 3.05 [.120] |
| Shell Material, Finish | Steel, Cadmium Plated | Contact Material - Post | 不锈钢 |
| Termination Post Length | 6.99 [0.275] | Contact Finish Thickness | .64 mm [ .025 in ] |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Note | Replacement socket contact Part Number 207684-4. | Type | D-Subminiature |
| Gender | SKT | Series | 90 |
| Density | High | Socket Type | With |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | Printed Circuit Board | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Online Document
Similar Parts
M24308/4-329F
te connectivity / amp
Conn Housing PIN 15 POS Crimp ST Panel Mount
$189.1080
Details

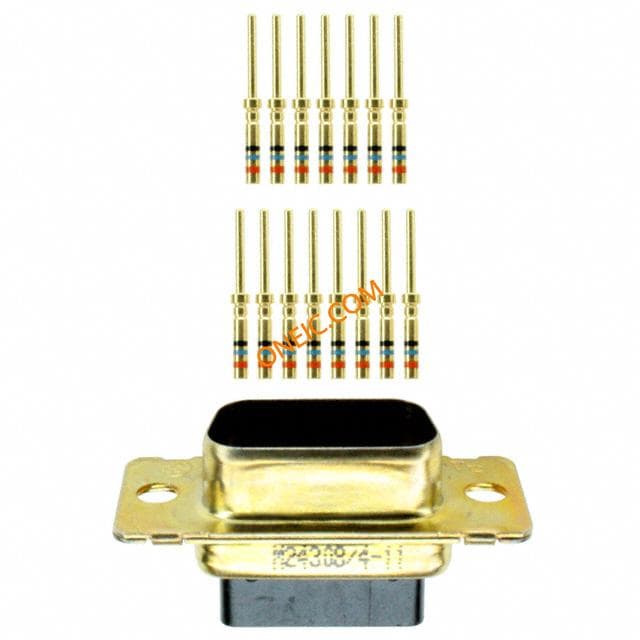

M24308/4-11
