208496-1
| Manufacturer | |
| Description | Conn Metal Shell CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 3 Connector,MetalShellCPC,PlugAssy,3Pos. Standard Circular Connector CMC PLUG ASSEMBLY SZ Conn Metal Shell CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:HousingHousing Type = Plug3 Positions0 Signal Positions3 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;PlugAssy;3Pos.;Sz.22;Series3;FreeHanging CMC PLUG ASSEMBLY,SZ 22 |
| Category |
Business
| Lead Time | 63 Days | Tradename | CPC Series 3 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | Compliance | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 否 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Fluid Resistance | 无 | Number of Channels | 0 |
| Connector - Voltage Input | 反向 | ||
Mechanical
| Color | Black | Sealed | No |
| Outline | 22 | Material | Stainless Steel |
| Packaging | Bulk | Body Color | 黑色 |
| Shell Size | 22 | Orientation | Keyed |
| Shell Style | Plug | Thread Size | 15/16-20 UNEF-2A |
| Contact Size | 3 Power | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Plug for Male Contacts | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Free Hanging |
| Number of Pins | 3 | Shell Material | Zinc alloy |
| Connector Style | Plug | Connector Usage | Threaded |
| Housing Material | Thermoplastic | Package Quantity | 10 |
| Primary Material | CircularPlasticConnector | Termination Style | Wire |
| 1st Contact Gender | Male | Mating Orientation | Keyed |
| Number of Contacts | 3 | Termination Finish | 带有 |
| Insulation Diameter | 5.59 [0.220] | Number of Positions | 3 |
| Shell Size - Insert | Metal | Mounting Hole Diameter | 带有 |
| Shell Material, Finish | Thermoplastic | 2nd Connector Mounting Feature | Reverse |
Product Info
| Note | Contacts Not Provided | Type | Metal Shell CPC |
| Gender | PL | Series | Series 3 |
| Features | ReverseGender | Preloaded | No |
| Arrangement | 22-3 | Manufacturer | Series3 |
| Product Type | Connector | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Pin Contacts |
Environmental
| Operating Range | 不密封 | ||
Documents & Media
Similar Parts
66261-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Standard Circular Contacts PIN CONTACT 16,14-12 tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 14-12AWG, CRIMP MaleContactAssembly;16-12AWG MALE CONTACT ASSY. (L.P.)
66261-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;FINISH=SILVERW/LUBRICANTADDED TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于G 系列以及 CPC 和 M 系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8AWG silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 10-8AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE MULTIMATE Male Type XII Series 10-8 AWG Discrete Wire Crimp Power Pin Assembly TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
208497-2
te connectivity / amp
Conn CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port Standard Circular Connector CMC RECEPTACLE ASSY,SIZE 22 CPC Connectors CONN RCPT CMC HSING 22-3 REV CMC RECEPTACLE ASSY,SIZE 22
66259-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG GOLD CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8 AWG gold Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, GOLD, 10-8AWG CPCTYPEXIICONTACTFORSERIES3;MALE Contact; male; 5÷8mm2; Type XII; gold plated; crimped MULTIMATE 10 - 8 AWG Gold (30) Crimp Contact Crimp Contact 35 A, 66259-2, TE Connectivity TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG TIN CRIMP PIN CONTACT XII TYPE Standard Circular Contacts PIN CONTACT 10 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, AWG10 CPCTYPEXIICONTACTFORSERIES3;MALE;(CONTACTFINISH:TIN-LEAD) Contact; male; 5÷6mm2; Type XII; tinned; crimped TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 10 AWG 线规格 MALE CONTACT ASSY. (L.P.)
208945-7
te connectivity / amp

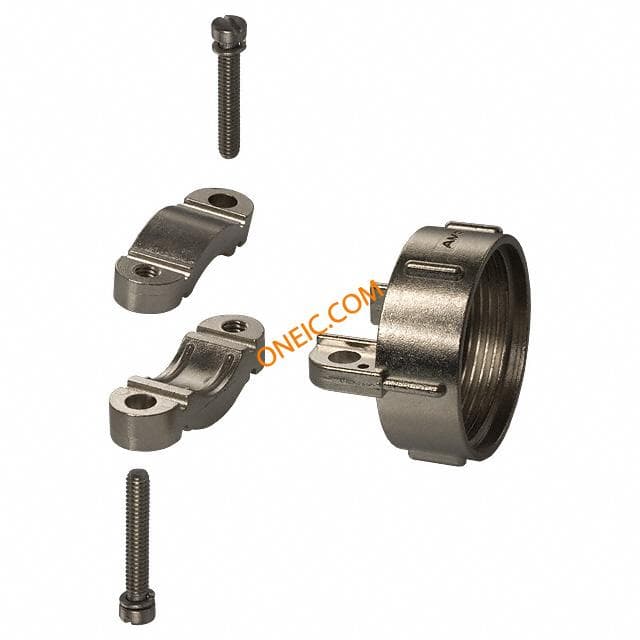

Connector Accessories Clamp Zinc Alloy Nickel Finish Black CPC Accessories CONN CABLE CLAMP SIZE 22 METAL Cable clamp shell,Size 22 Standard Circular Connector CABLE CLAMP SIZE 22 Connector Accessories Clamp Zinc Alloy Nickel Finish Black Product Highlights:Cable ClampShell Size = 22Body Style = StraightCable Diameter (Max.) = 8.26 - 19.05 mmZinc Alloy Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, CPC, SIZE 22 Clamp,Cable;CPCConnectors;22;0.325in.to0.750in.(Max.) Cable Clamp Standard,Housing size 22, Size 1-3/16-18, 208945-7, TE Connectivity TE Connectivity 黑色 电缆夹, 19.05mm 捆束直径 SZ 22 UNASSM KIT,CMC
