207485-1
| Manufacturer | |
| Description | Conn CPC SKT 16 POS ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN PLUG CPC HSING 23-16 STD 16 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 23-16M Conn CPC SKT 16 POS ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, CIRCULAR ConnectorHousing;CPCPlugAssy;16Pos.;Sz.23;Series4;FreeHang;StdSex Connector: circular; Series: CPC Series 4; plug; female; for cable Plug CPC4 Poles=16, accepts female contacts / Free hanging/cable mount, 207485-1, TE Connectivity TE Connectivity 16路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-16 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 4 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Compliance | No |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Number of Channels | 12 | Connector - Voltage Input | w/o terminals |
Mechanical
| Sealed | No | Weight | 3.95 |
| Diameter | 45.29 mm | Packaging | Bulk |
| Cable Exit | No | Shell Size | 23 |
| Orientation | Keyed | Shell Style | Plug |
| Thread Size | 1-3/8 - 18 UNEF-2A | Contact Form | 4Power/12Signal |
| Contact Size | 16 (12), 4 Power | Contact Type | 4Power/12Signal |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Plug for Female Contacts | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | size 23 |
| Connector Style | Plug | Insertion Angle | :23-16 |
| Locking Feature | threaded joint, internal thread | Material - Body | :Nylon (Polyamide) |
| Material - Core | Polyester | Housing Material | Nylon 6/6 GF |
| Length - Overall | 41.78 mm | Package Quantity | 5 |
| Connector - Cable | plug | Termination Style | Wire |
| 1st Contact Gender | SKT | Diameter - Ring ID | 45.29 [1.783] |
| Mating Orientation | Keyed | Number of Contacts | 16 |
| Number of Positions | 16 | Shell Size - Insert | All Plastic |
| Conductor Insulation | 5.59 [0.220] | Shell Material, Finish | Nylon, Glass Filled |
| 1st Connector Mounting Type | :Cable | 2nd Connector Mounting Feature | Standard |
| Shell Size - Insert (Convert To) | 23-16M | ||
Product Info
| Spg | 5 | Note | Contacts Not Provided |
| Type | CPC | Gender | PL |
| Series | Series 4 | Preloaded | No |
| CAD Drawing | 3D CAD Model | Product Type | Connector |
| Adapter Series | CPC Series 4 | Number of Units | 1 |
| Number of Circuits | 4 (Power)/12 (MultiMate) | RF Family/Standard | 207485 |
| Other Specifications | Without | For Use With/Related Products | Socket Contacts |
Documents & Media
Similar Parts
66740-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG TIN CRIMP Pin & Socket Connectors SKT CONTACT 16,14-12 tin Type XII 66740-8 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;TypeXII;Power;Socket;16-12AWG;Tin-LeadPlated TYPE XII FEMALE CONT (L.P.)
207486-5
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Standard Circular Connector SIZE 23-16 RECEPT CPC W/SEAL CPC Connectors CONN RCPT CPC 16POS Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = Receptacle16 Positions12 Signal Positions4 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC SIZE 23-16 RECEPT,CPC,W/SEAL
66740-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG SILVR CRIMP Type XII Series Size 16 Female Circular Connector Contact, Crimp,Wire size 16 to 12AWG Pin & Socket Connectors SKT CONTACT 16,14-12 silver Type XII Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, SKT, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;FEMALE;FINISH=.0002000"SILVERW/LUBRICANTAD MultiMate Type XII Series 14-12 AWG Discrete Wire Crimp Female Socket TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 16 → 12 AWG 线规格 TYPE XII FEMALE CONT (L.P.)
66741-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 10AWG TIN CRIMP Pin & Socket Connectors TYPE XII F/M CONT (STRIP) Multimate Product Highlights:SocketTin-Lead Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPE XII FEMALE CONT (STRIP)
207437-2
te connectivity / amp

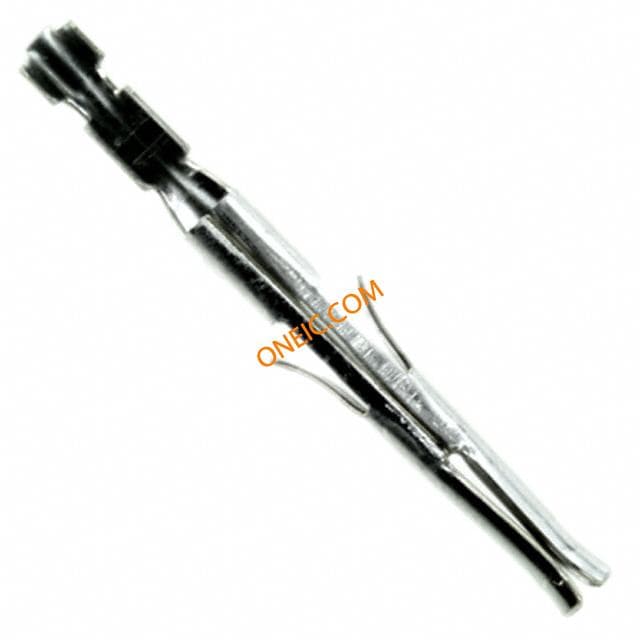

Contact SKT Crimp ST Cable Mount Strip Multimate CONTACT SKT 22-28AWG CRIMP TIN Pin & Socket Connectors SKET 28-22 CRIMP TIN Multimate Product Highlights:SocketTin Contact Mating Area Plating MaterialWire Range = 0.08-0.40² [28-22] mm [AWG]Insulation Diameter = .91 - 1.37 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT,SOCKET,AUDIO MICRO
207486-1
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 4 16 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECPT SQUARE 23-16M Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SIZE 23, CPC, 12S-4P ConnectorHousing;CPCReceptacle;16Pos;Sz.23;Series4;PanelMnt;StdSex Connector: circular; Series: CPC Series 4; socket; male; UL94V-0 Receptacle CPC4 Poles=16, accepts male contacts / with flange, 207486-1, TE Connectivity TE Connectivity 16路 面板安装 直向 连接器 插座 SIZE 23-16 RECEPTACLE,CPC
66741-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 10AWG GOLD CRIMP Type XII Series Size 16 Female Circular Connector Contact, Crimp,Wire size 10AWG Pin & Socket Connectors SOCKET CONTACT 10 gold Type XII Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 10-8AWG CPCTYPEXIICONTACTFORSERIES3;FEMALE Contact; female; 5÷6mm2; Type XII; gold plated; crimped Crimp Contact 35 A, 66741-6, TE Connectivity TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 10 AWG 线规格 TYPE XII FEMALE CONT (L.P.)
1-66741-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 10AWG 30GOLD CRIMP Pin & Socket Connectors TYPE XII FEMALE CONT 1500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 10-8AWG, CRIMP TYPE XII FEMALE CONT (STRIP)
1-66740-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 12-16 AWG TIN CRIMP Standard Circular Contacts TYPE XII FEMALE CONT (STRIP) TYPE XII FEMALE CONT (STRIP) TYPE XII FEMALE CONT (STRIP) Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
1-66741-9
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors TYPXII SKT 10AWG CU/SN Multimate CONN SOCKET 10AWG TIN CRIMP Multimate Product Highlights:SocketTin Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPE XII FEMALE CONT (STRIP)
2-66741-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 10AWG TIN CRIMP Pin & Socket Connectors TYPE XII FEM CONTACT Multimate Product Highlights:SocketTin Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPE XII FEMALE CONTACT
2-66740-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 12-16AWG TIN CRIMP Pin & Socket Connectors TYPE XII FEMALE CONT (STRIP) Multimate Product Highlights:SocketTin Contact Mating Area Plating MaterialWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPE XII FEMALE CONT (STRIP)
202237-3
te connectivity / amp

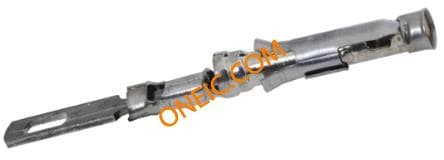

Contact SKT Solder ST Cable Mount Loose Piece Multimate Contacts CONN SKT .062 SLD POST GOLD Multimate III Socket Contact solder tab Pin & Socket Connectors III+ SKT SOLTAB 30AU 1000 Contact SKT Solder ST Cable Mount Loose Piece Product Highlights:Socket with Solder TabGold (30) over Nickel (30) Contact Mating Area PlatingBrass Contact MaterialGold Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+SKT,SOLTAB,30AU>10 III+ SKT,SOLTAB,30AU>10,SMPACK
