Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 300 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHS,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL,VDE | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Current Rating (Max) | 14 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 27.15mm |
| Pitch | 5 mm | Height | 27.84 mm |
| Length | 27.84mm | Weight | 0.004 |
| Packaging | Bulk | Row Spacing | 0.197" (5.00mm) |
| Contact Type | Female Socket | Polarization | PolarizingTab |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Housing | Fastening Type | Locking Ramp |
| Mounting Style | Panel | Number of Rows | 9 |
| Shaft Diameter | Without | Connector Usage | Square Grid |
| Locking Feature | Locking Latch | Housing Material | Thermoplastic - GF |
| Length - Overall | 56.41 mm | Mounting Feature | Without |
| Package Quantity | 150 | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.197" | 1st Contact Gender | Pin (Male) |
| Connector - Sensor | Without | Mating Orientation | Polarizing Tab |
| Number of Contacts | 36 | Contact Termination | Crimp and Solder |
| Number of Positions | 36 | Center Contact Finish | 5.0 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | AMP Metrimate |
| CAD Drawing | 3D CAD Model | Coded, Keyed | No |
| Manufacturer | AMP | Product Type | Housing |
| Configuration | SquareGrid | Other Specifications | No |
| For Use With/Related Products | Square Grid Pin & Socket Connector | ||
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
PDF Document
Online Document
Similar Parts
66601-1
te connectivity / amp
$2.0400
Details

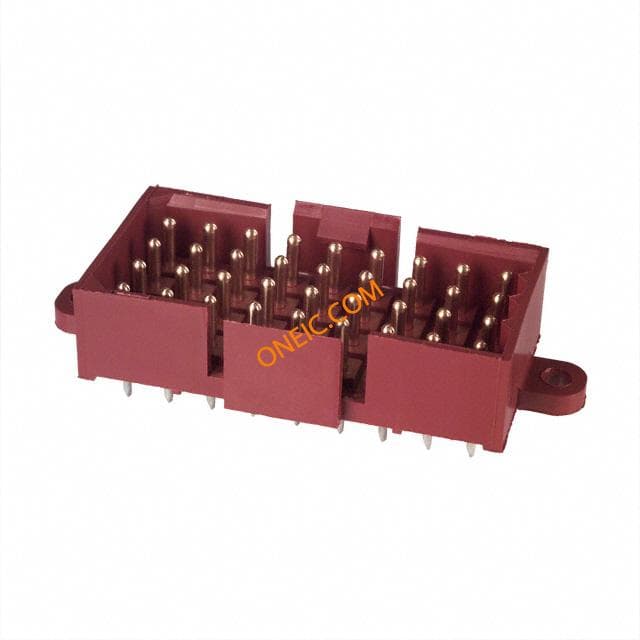

207121-3
te connectivity / amp
$285.6000
Details
66183-1
te connectivity / amp
$2.9417
Details
66109-4
te connectivity / amp
$5.9160
Details
66424-6
te connectivity / amp
$1.8564
Details
202237-5
te connectivity / amp
$8.9733
Details
207121-4
te connectivity / amp
$185.4006
Details
1-66360-2
te connectivity / amp
$4.6376
Details
1-66399-0
te connectivity / amp
$4.2180
Details

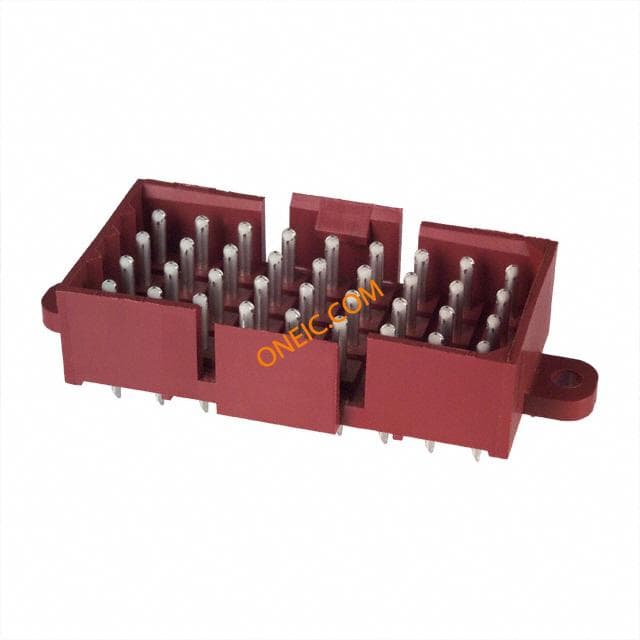

207121-1
