206613-5
| Manufacturer | |
| Description | Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Standard Circular Connector RECEPT SZ 23-22 W/SEAL CPC Connectors CONN RCPT CPC 22POS STD SER 4 Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ 23-22,CPC,W/SEAL |
| Category |
Business
| Lead Time | 42 Days | Tradename | CPC Series 4 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Compliance | No |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-0 |
Electrical
| Fluid Resistance | 浸入 | Number of Channels | 20 |
| Connector - Voltage Input | 标准 | ||
Mechanical
| Depth | 44.45 mm | Height | 44.45 mm |
| Sealed | Yes | Outline | 23 |
| Packaging | Bulk | Shielding | 否 |
| Body Color | 黑色 | Cable Exit | No |
| Shell Size | 23 | Orientation | Keyed |
| Shell Style | Receptacle | Thread Size | 1-3/8 - 18 UNEF-2A |
| Contact Form | 20Signal/2Power | Contact Size | 16 (20), 2 Power |
| Contact Type | Crimp | Housing Color | Black |
| Mounting Type | Panel Mount | Wire Diameter | 3.81 mm [ .15 in ] |
| Connector Type | Receptacle for Male Contacts | Fastening Type | Threaded |
| Mounting Style | Panel | Number of Pins | 2 |
| Shell Material | 母端, 母端 | Connector Style | Receptacle |
| Housing Material | Thermoplastic | Length - Overall | 41.53 mm |
| Package Quantity | 1 | Panel Mount Type | Square Flange |
| Termination Style | Wire | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Threaded | Number of Contacts | 22 |
| Termination Finish | 带有 | Number of Positions | 22 |
| Shell Size - Insert | All Plastic | Conductor Insulation | 5.59 [0.220] |
| Mounting Hole Diameter | 带有 | Shell Material, Finish | Thermoplastic |
| 1st Connector Mounting Type | Panel | 2nd Connector Mounting Feature | Standard |
| Shell Size - Insert (Convert To) | 23-22 | ||
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | RCP | Series | CPC |
| Preloaded | No | Product Type | Connectors |
| Number of Circuits | 2 (Power)/20 (MultiMate) | RF Family/Standard | 206613 |
| Other Specifications | Without | For Use With/Related Products | Pin Contacts |
Environmental
| Seal Rating | Peripheral | Operating Range | 密封 |
| Ingress Protection | 外围设备 | ||
Documents & Media
Similar Parts
66261-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Standard Circular Contacts PIN CONTACT 16,14-12 tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 14-12AWG, CRIMP MaleContactAssembly;16-12AWG MALE CONTACT ASSY. (L.P.)
206612-1
te connectivity / amp
Conn CPC SKT 22 POS ST Cable Mount 22 Terminal 1 Port CPC Connectors CONN PLUG CPC 22POS STD SER 4 22 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 23-22M Conn CPC SKT 22 POS ST Cable Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, CIRCULAR ConnectorHousing;CPCPlugAssy;22Pos.;Sz.23;Series4;FreeHang;StdSex Connector: circular; Series: CPC Series 4; plug; female; for cable Plug CPC4 Poles=22, accepts female contacts / Free hanging/cable mount, 206612-1, TE Connectivity TE Connectivity 22路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-22
66261-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;FINISH=SILVERW/LUBRICANTADDED TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于G 系列以及 CPC 和 M 系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8AWG silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 10-8AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE MULTIMATE Male Type XII Series 10-8 AWG Discrete Wire Crimp Power Pin Assembly TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)

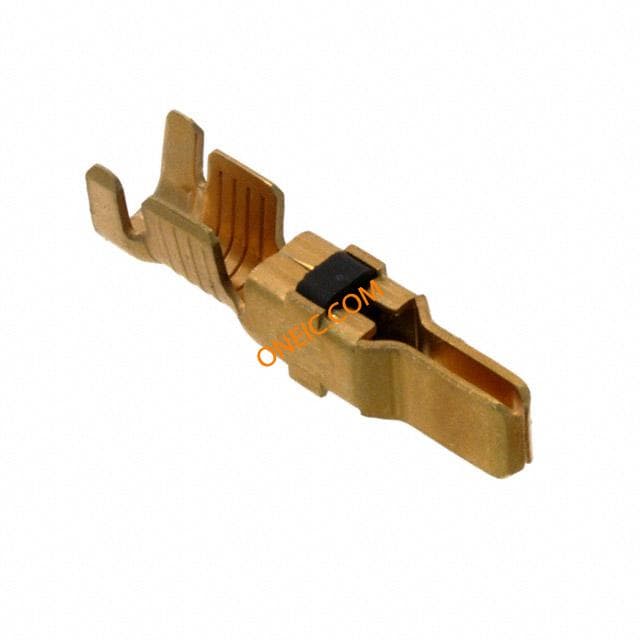

66259-2
