206430-3
| Manufacturer | |
| Description | Conn Sealed CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS REV SER 1 Connector; CPC; 4; Receptacle; Wire; 11; All Plastic; 5/8 in. - 24 UNEF-2A Standard Circular Connector RECEPTACLE 4 PIN shell size 11 Conn Sealed CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL ConnectorHousing;CPCRecept.Assy;4Pos.;Sz11;Series1;PanelMnt;RevSex Receptacle CPC Special Series 1 Poles=4, accepts female contacts / with flange / sealed, 206430-3, TE Connectivity CPC RECPT ASSEMBLY SIZE 11-4 |
| Category |
Business
| Tradename | CPC Series 1 | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Number of Channels | 4 | ||
Mechanical
| Color | Black | Sealed | Yes |
| Weight | 0.005 | Packaging | Bulk |
| Shell Size | 11 | Orientation | A |
| Shell Style | Receptacle | Termination | Crimp |
| Thread Size | 5/8 - 24 UNEF-2A | Contact Size | 16 |
| Contact Type | Crimp | Housing Color | Black |
| Mounting Type | Panel Mount | Shell Plating | Elastomer |
| Angle of Throw | Straight | Connector Type | Receptacle for Female Contacts |
| Fastening Type | Threaded | Mounting Style | Panel |
| Connector Style | Receptacle | Material - Body | :Thermoplastic |
| Housing Material | Thermoplastic | Panel Mount Type | Square Flange |
| Primary Material | CircularPlasticConnector | Termination Style | Wire |
| 1st Contact Gender | Socket | Mating Orientation | Keyed |
| Number of Contacts | 4 | Number of Positions | 4 |
| Shell Size - Insert | All Plastic | Mounting Hole Diameter | 0.125" |
| Shell Material, Finish | Thermoplastic | 1st Connector Mounting Type | :Panel |
| 2nd Connector Mounting Feature | Reverse | ||
Product Info
| Note | Contacts Not Provided | Type | Sealed CPC |
| Gender | RCP | Series | Series 1 |
| Features | ReverseGender | Key Type | A |
| Preloaded | No | Arrangement | 11-4 |
| Peripherals | Gray | Manufacturer | Series1 |
| Product Type | Connector | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Socket Contacts |
Environmental
| Seal Rating | Peripheral | Ingress Protection | IP65 |
Documents & Media
Similar Parts
66428-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors 30-26 III+ SKT 30AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 30-26AWG Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP
66183-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-26AWG GOLD SOLDER Contact Solder Socket 26-20AWG Multimate Pin & Socket Connectors CONTACT PINS .062 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.12-0.50² [26-20] mm [AWG]Copper Alloy Contact MaterialGold Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-20AWG, SOLDER Contact,Multimate;Socket;16;CopperAlloy;Signal;GoldoverNickel;Solder;26-20AWG MULTIMATE Type III+ Series 26-20 AWG Discrete Wire Solder Signal Socket Assembly Solder contact female, 66183-1, TE Connectivity TE Connectivity Type III+ 系列 母 压接接线端子, 焊接, 镀金镀镍触点 III+ SKT,SOLDER,30AU,10AU FLAS
66360-2
te connectivity / amp

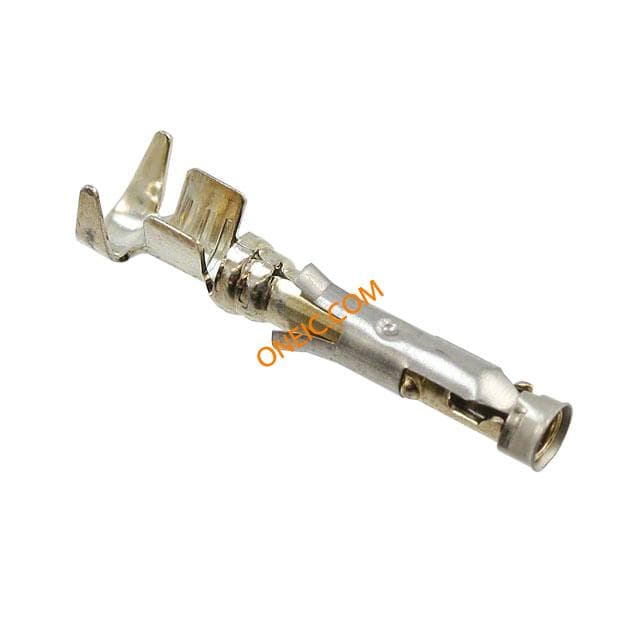

III+ SKT,18-14,TIN-LEAD,LP Standard Circular Contacts TIN SOCKET 18-14 AWG CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSLP,III+SKT,18-14,TIN-LEAD,LP
66405-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET 26-30AWG GOLD CRIMP Multimate III Socket Contact 30-26 AWG Contact; Socket; 16; Brass; Signal; Gold (30) over Nickel (50); 30-26 AWG Pin & Socket Connectors TYPIII SKT 30-26 BR/AU SIG Conn Contact F 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = .36 - .76 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 30-26AWG, CRIMP Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP
1-66109-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 26-24 series 1 Multimate CONN SOCKET 24-26AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead over Nickel Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-24AWG, CRIMP III+ SKT,26-24,TIN-LEAD,SMPACK
66100-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONTACT SKT 16-18AWG STRIP GOLD Pin & Socket Connectors III+ SKT 18-16 30AU/FL STRIP III+ SKT,18-16,30AU/FL,STRIP III+ SKT,18-16,30AU/FL,STRIP Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66424-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET AWG 26-30 TIN CRIMP CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors III+ SKT30-26 4000 66424-6 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,30-26,TIN-LEAD,STRIP
206429-1
te connectivity / amp
Conn Sealed CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN PLUG CPC 4POS REV SER 1 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector PLUG 4 POSITION shell size 11 Conn Sealed CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONN, CIRCULAR, PLUG, 4 WAY, 11-4 ConnectorHousing;CPCPlugAssy;4Pos.;Sz.11;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:4 Plug CPC1 Poles=4, accepts male contacts / Free hanging/cable mount, 206429-1, TE Connectivity TE Connectivity 4路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 11-4
1-66360-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors TIN SOCKET 18-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, TIN, 1.5-2.0MM MULTIMATETypeIII+Contact,Socket,18-14AWG,Crimp,Tin Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; tinned; crimped TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN ,LP
1-66360-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 18-14 Series 1 Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesBright Tin-Lead Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Multimate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-14,TIN-LEAD,SMPACK
66109-2
te connectivity / amp
III+ SKT,26-24,TIN-LEAD,LP Multimate CONN SOCKET 24-26AWG TIN CRIMP Standard Circular Contacts TIN SOCKET 26-24 AWG Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin-Lead Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66100-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 16-18AWG GOLD CRIMP Pin & Socket Connectors SIZE 16 SOCKET Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,18-16,15AU/FL,STRIP MULTIMATE Type III+ Series 18-16 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-16,15AU/FL,STRIP
1-66358-2
te connectivity / amp

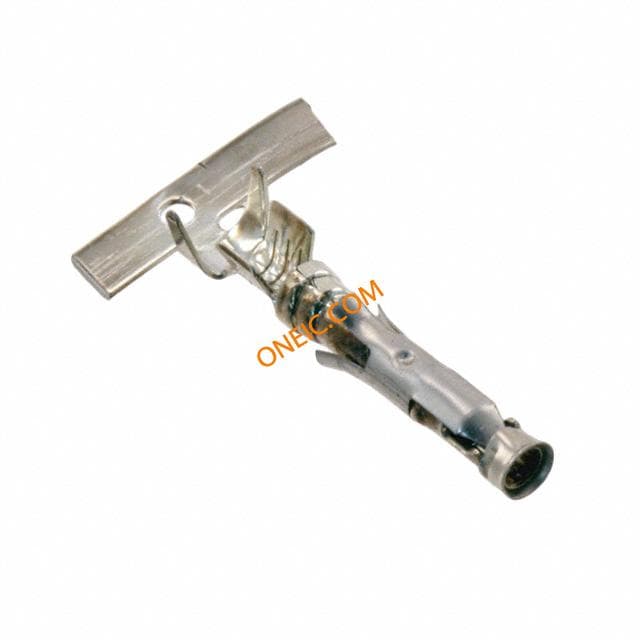

Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG TIN CRIMP Pin & Socket Connectors III+ SKT,18-14 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmPhosphor Bronze Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,18-14,TIN-LEAD,STRIP
