206136-1
| Manufacturer | |
| Description | Conn CPC F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN PLUG CPC HSING 23-7 STD 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG STANDARD 23-7 Conn CPC F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, SOCKET CONTACT, 7WAY ConnectorHousing;CPCPlugAssy;7Pos.;Sz.23;Series3;FreeHang;StdSex Plug CPC3 Poles=7, accepts female contacts / Free hanging/cable mount, 206136-1, TE Connectivity TE Connectivity 7路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-7 |
| Category |
Business
| Lead Time | 24 Days | Tradename | CPC Series 3 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Number of Channels | 0 | Current Rating (Max) | :25A |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Color | Black | Sealed | No |
| Weight | 0.0028 | Diameter | 45.28 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 23 | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 1-3/8 - 18 UNEF-2A | Contact Form | 7Signal |
| Contact Size | 7 Power | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug for Female Contacts |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Connector Style | Plug | Insertion Angle | :23-7 |
| Material - Body | :Glass Reinforced Nylon (Polyamide) | Material - Core | Polyester |
| Material Finish | :- | Contact Material | Copper |
| Housing Material | Nylon | Length - Overall | 41.78 mm |
| Primary Material | CircularPlasticConnector | Termination Style | Wire |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Diameter - Ring ID | 45.29 [1.783] | Mating Orientation | Keyed |
| Number of Contacts | 7 | Insulation Diameter | 5.59 [0.220] |
| Number of Positions | 7 | Shell Size - Insert | All Plastic |
| Shell Material, Finish | Nylon, Glass Filled | 1st Connector Mounting Type | :Cable |
| 2nd Connector Mounting Feature | Standard | Shell Size - Insert (Convert To) | 23-7 |
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | PL | Series | Series 3 |
| Preloaded | No | Arrangement | 23-7 |
| CAD Drawing | 3D CAD Model | Manufacturer | Series3 |
| Product Type | Connector | RF Family/Standard | 206136 |
| Other Specifications | Without | Application Specifics | Commercial |
| For Use With/Related Products | Socket Contacts | ||
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
66740-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG TIN CRIMP Pin & Socket Connectors SKT CONTACT 16,14-12 tin Type XII 66740-8 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;TypeXII;Power;Socket;16-12AWG;Tin-LeadPlated TYPE XII FEMALE CONT (L.P.)
66740-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG SILVR CRIMP Type XII Series Size 16 Female Circular Connector Contact, Crimp,Wire size 16 to 12AWG Pin & Socket Connectors SKT CONTACT 16,14-12 silver Type XII Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, SKT, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;FEMALE;FINISH=.0002000"SILVERW/LUBRICANTAD MultiMate Type XII Series 14-12 AWG Discrete Wire Crimp Female Socket TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 16 → 12 AWG 线规格 TYPE XII FEMALE CONT (L.P.)
206137-1
te connectivity / amp
Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 23 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector STD SQUARE RECP 23-7 Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 7WAY ConnectorHousing;CPCReceptacle;7Pos.;Sz.23;Series3;PanelMnt;StdSex Receptacle CPC3 Poles=7, accepts male contacts / with flange, 206137-1, TE Connectivity TE Connectivity 7路 面板安装 直向 连接器 插座 , 公触点 23-7 RECEPT STD SEX
66741-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 10AWG TIN CRIMP Pin & Socket Connectors TYPE XII F/M CONT (STRIP) Multimate Product Highlights:SocketTin-Lead Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPE XII FEMALE CONT (STRIP)
66740-9
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 12-16 AWG SLVR CRIMP Pin & Socket Connectors 14-12AWG SILVER SKT Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketSilver Contact Mating Area Plating MaterialWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 14-12AWG, CRIMP TYPE XII FEMALE CONT (STRIP)
206137-2
te connectivity / amp
Conn CPC M 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 23 Standard Circular Connector RECPT STD F.H. 23-7 Conn CPC M 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;7Pos.;Sz.23;Series3;FreeHang;StdSex 23-7 FREE HANGING RECEPT
2-66740-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG TIN CRIMP Standard Circular Contacts SKT CONTACT 16,14-12 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 16AWG Contact;TypeXII;Socket;ForSeries3CPC;Power;TinPlated Contact; female; 1.25÷3mm2; Type XII; crimped; 15A Type XII Ultra-Fast 14-12 AWG Fully Insulated Multimate Socket TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 16 → 12 AWG 线规格 TYPE XII FEMALE CONT (LP)

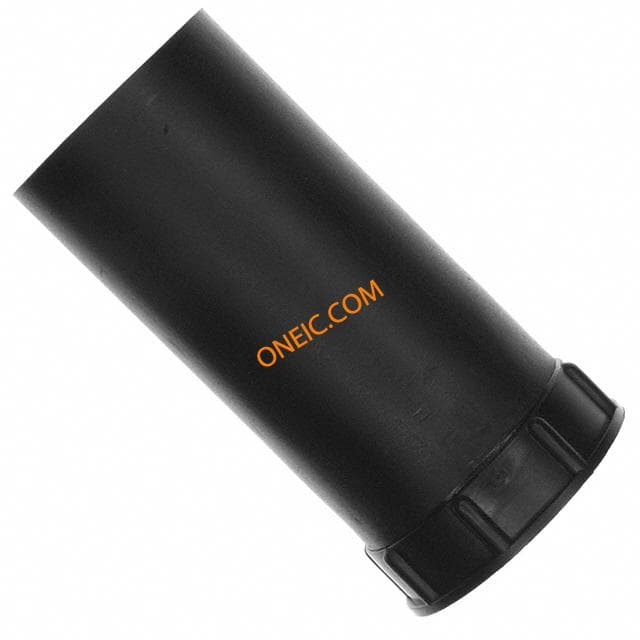

54012-1
