206060-1
| Manufacturer | |
| Description | Conn CPC SKT 4 POS ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN PLUG CPC 4POS STD SER 1 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector PLUG 4 POSITION shell size 11 Conn CPC SKT 4 POS ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 11-4, FREE ConnectorHousing;CPCPlugAssy;4Pos.;Sz.11;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:4
sale Plug CPC1 Poles=4, accepts female contacts / Free hanging/cable mount, 206060-1, TE Connectivity TE Connectivity 4路 电缆安装 直向 连接器 插座 CPC PLUG ASSEMBLY SIZE 11-4 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Number of Channels | 4 | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Sealed | No |
| Weight | 0.006 | Diameter | 24.77 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 11 | Orientation | A |
| Shell Style | Plug | Thread Size | 5/8 - 24 UNEF-2A |
| Contact Form | 4Signal | Contact Size | 16 |
| Contact Type | Crimp | Housing Color | Black |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug for Female Contacts | Contact Finish | Silver |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | size 11 | Connector Style | Plug |
| Insertion Angle | :11-4 | Locking Feature | threaded joint, internal thread |
| Material - Body | :Thermoplastic | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 27.43 mm |
| Package Quantity | 50 | Primary Material | CircularPlasticConnector |
| Connector - Cable | plug | Termination Style | Wire |
| 1st Contact Gender | Female | Mating Orientation | Keyed |
| Number of Contacts | 4 | Number of Positions | 4 |
| Shell Size - Insert | All Plastic | Shell Material, Finish | Thermoplastic |
| 1st Connector Mounting Type | :Free | 2nd Connector Mounting Feature | Standard |
Product Info
| Spg | 50 | Note | Contacts Not Provided |
| Type | CPC | Gender | PL |
| Series | Series 1 | Key Type | A |
| Polarity | A | Preloaded | No |
| Arrangement | 11-4 | CAD Drawing | 3D CAD Model |
| Manufacturer | Series1 | Product Type | Connector |
| Adapter Series | CPC Series 1 | Number of Units | 1 |
| RF Family/Standard | 206060 | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Socket Contacts |
Environmental
| Ingress Protection | IP65 | ||
Similar Parts
1-796403-2
te connectivity / amp
Conn CPC PIN 4 POS Solder RA Thru-Hole 4 Terminal 1 Port Standard Circular Connector CPC PSTD RCPT 11-4 R/A LF CPC Connectors CONN RCPT CPC 4POS R/A W/INSERT Conn CPC PIN 4 POS Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,11-4,R/A LF
182917-1
te connectivity / amp
Conn Housing RCP 4 POS Crimp ST Cable Mount CPC Connectors CONN RCPT CPC 4POS PANEL MT Housing,rcpt,series 1,shell size 11, 4W Standard Circular Connector 11-4 RCPT STD SEX Conn Housing RCP 4 POS Crimp ST Cable Mount Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, CPC, SIZE 11, 4WAY, PIN Housing,rcpt,series1,shellsize11,4W Connector: circular; Series: CPC Series 1; socket; male; PIN:4 Receptacle CPC 1 4P Male 11, 182917-1, TE Connectivity TE Connectivity 4 路 直 母 电缆安装 PCB 壳体 CPC SQ.FL.RCPT STD SEX
206153-1
te connectivity / amp
Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS STD SER 1 4 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECEPTACLE 4 PIN free hanging s.s. 11 Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, RCPT, 11-4, FREE ConnectorHousing;CPCReceptacle;4Pos.;Sz.11;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; male; w/o terminals Connector: circular; Series: CPC Series 1; plug; male; PIN:4 Receptacle CPC1 Poles=4, accepts male contacts / Free hanging/cable mount, 206153-1, TE Connectivity TE Connectivity 4路 电缆安装 直向 连接器 插座 , 公触点 11-4 F.H. RECEPT. STD. SEX
208130-1
te connectivity / amp
Conn CPC PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors RECEPT ASSEM W/THREADED FASTENER 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector CPC RECPT SIZE 11-4 Conn CPC PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 44 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSING, RECEPTACLE, CIRCULAR, 4WAY ConnectorHousing;CPCRecept.Assy;4Pos.;Sz11;Series1;PanelMnt;StdSex TE Connectivity 4路 面板安装 直向 连接器 插座 , 公触点
796403-2
te connectivity / amp
Conn CPC F 4 POS Solder RA Thru-Hole 4 Terminal 1 Port Standard Circular Connector CPC POSTED RCPT 11-4 R/A CONN RCPT 4POS CPC PNL MT PLAST CPC POSTED RCPT,11-4,R/A CPC POSTED RCPT,11-4,R/A Search Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
206518-2
te connectivity / amp
Conn CPC PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RCPT CPC 4POS PANEL MOUNT Standard Circular Connector REC PIN 11-4 FTU Conn CPC PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL Connector;CPC;Recept.Assyw/Pins;4Pos;Sz11;Series1;PanelMnt;StdSex CPC RECPT ASSEMBLY SIZE 11-4
796764-1
te connectivity / amp
Conn CPC PIN 4 POS ST Panel Mount 4 Terminal 1 Port Standard Circular Connector CPC RCPT ASSY POSTED 11-4 CPC Connectors CPC RECPT ASSY,POSTED,11-4 Conn CPC PIN 4 POS ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
206061-2
te connectivity / amp
Conn CPC PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS STD SER 1 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECEPTACLE 4 PIN shell size 11 Conn CPC PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD SLD CPC1, 4WAY ConnectorHousing;CPCRecept.Assy;4Pos.;Sz11;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=4, accepts male contacts / with flange / sealed, 206061-2, TE Connectivity TE Connectivity 4路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 11-4

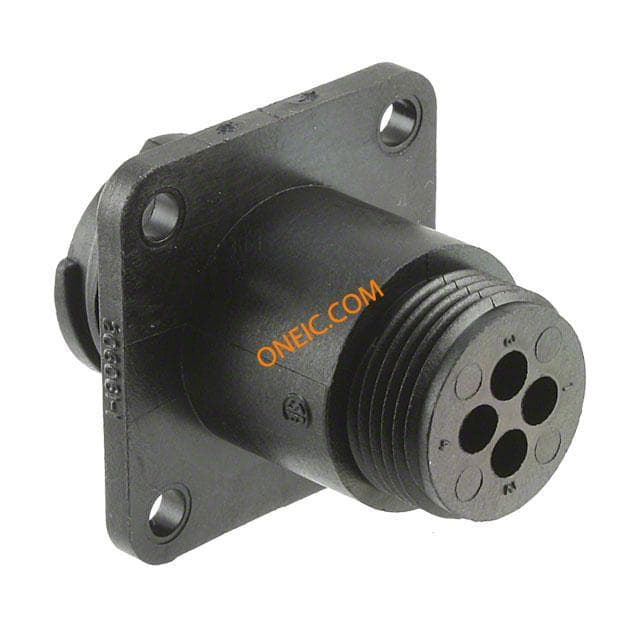

206061-1
