2058703-2
| Manufacturer | |
| Description | Conn Board to Board M 4 POS 4mm Solder RA SMD T/R Lighting Connectors BLADE AND RCPT 4 POS SMT WHT CONN RCPT&BLADE 4POS W/LATCH SMD TE Connectivity 2058703 Series 4mm Pitch 4 Way 1 Row Right Angle Lighting Connectors, Solder Termination, 6A CONNECTOR, BLADE & RECEPTACLE, 4WAY Connectorass,blade+recpt,SMT,4Wy,White 4 Position 4 mm Surface Mount Right Angle Hermaphroditic Blade/Receptacle TE Connectivity Hermaphroditic 系列 4mm节距 4路 (1排) 直角 照明连接器, 焊接端接, 6A , 表面安装 Herm Blade& Recp Assy, 4 Pos,Latch |
| Category |
Business
| Product | Connectors | Other Names | A99882TR |
| Product Category | Lighting Connectors | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 125 V ac/dc | Voltage - Breakdown | :1500V |
| Current Rating (Max) | 6A | Voltage - Supply (Min) | 125VDC/125VAC |
Mechanical
| Color | White | Depth | 19.75 mm |
| Pitch | 4 mm | Height | 4.05 mm |
| Weight | 0.01 | Packaging | Tape & Reel (TR) |
| Termination | Solder | Contact Type | Blade/Socket |
| Housing Color | Natural | Mounting Type | Surface Mount, Right Angle |
| Contact Finish | Tin Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) | Length - Overall | 16.7 mm |
| Primary Material | BoardtoBoard | Termination Style | SMD |
| Color - Connectors | :White | Number of Contacts | 4 |
| Contact Termination | :Solder | Number of Positions | 4 |
Product Info
| Type | Board to Board | Style | Board to Board or Cable |
| Gender | M | Series | 2058703 |
| Features | Latch Lock | Manufacturer | 2058703Series |
| Application Specifics | Board to Board | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
2008144-1
te connectivity / amp
Conn Wire to Wire PL/RCP 2 POS ST Cable Mount Lighting Connectors 2 POS LIGHT-N-LOK Ballast Products & LED Interconnections CONN MATED PAIR 2POS LIGHT-N-LOK Connector,wire, mated pair,L-N-L,2 Way Conn Wire to Wire PL/RCP 2 POS ST Cable Mount Search Keywords:lighting, LIGHT-N-LOK, hot-pluggable, fluorescent, ballast, poke-in, surface mount, splice poke-in, tap wire, IDC poke-in, LED applications, SMT thru-hole poke-in connector, Wire lighting connectors, SMT connectors, thru-hole poke-in connectors, lighting connectors, Poke-in Wire connectors, low profile SMT connector, low profile lighting connectors, low profile connectors, Hermaphroditic CONNECTOR, MATED PAIR, 2WAY Connector,Light-N-Lok,PlugandReceptacleMatedPairAssembly,2Position Pug and socket set 2P, 2008144-1, TE Connectivity TE Connectivity LIGHT-N-LOK 系列 天然色 电线 → 电线, 电缆安装, 额定电流 5A, 600 V 交流 Asy,Mated Pair, Plug & Recpt,2
2058299-2
te connectivity / amp
Conn Housing RCP 4 POS 4mm Crimp ST Lighting Connectors 4 POS PLUG NAT CONN HSNG RCPT&BLADE 4POS NATRL Connector,housing,plug,4 Way,22-18awg,Wh HOUSING, BLADE & RECEPTACLE, 4WAY CON,HSG,PLUG,4W,22-18,WHT TE Connectivity Hermaphroditic 系列 1 行 4mm 节距 4 路 直 母 压接连接器外壳 WTB HOUSING, 4 POS, NATURAL
2058703-1
te connectivity / amp
Conn Board to Board M 2 POS 4mm Solder RA SMD T/R Lighting Connectors BLADE AND RCPT 2 POS SMT WHT CONN RCPT&BLADE 2POS W/LATCH SMD TE Connectivity 2058703 Series 4mm Pitch 2 Way 1 Row Right Angle Lighting Connectors, Solder Termination, 6A Conn Board to Board M 2 POS 4mm Solder RA SMD T/R Product Highlights:ConnectorYes PreloadedHousing Gender = HermaphroditicProduct Classification = Board-to-Board2 Positions CONNECTOR, BLADE & RECEPTACLE, 2WAY CON,BLADE+RECP,SMT,2W,WHT Connector: PCB to PCB; hermaphrodite; PIN:2; Locking: with lock sale 2 Position 1 Row 4 mm Hermaphroditic Blade And Receptacle Housing Connector TE Connectivity Hermaphroditic 系列 2路 4mm节距 (1排) 直角 照明连接器 , 焊接端接, 6A, 表面安装 Herm Blade& Recp Assy, 2 Pos,Latch
2058703-3
te connectivity / amp
Conn Board to Board M 6 POS 4mm Solder RA SMD T/R Lighting Connectors BLADE AND RCPT 6 POS SMT WHT CONN RCPT&BLADE 6POS W/LATCH SMD TE Connectivity 2058703 Series 4mm Pitch 6 Way 1 Row Right Angle Lighting Connectors, Solder Termination, 6A Conn Board to Board M 6 POS 4mm Solder RA SMD T/R Product Highlights:ConnectorPreloadedHousing Gender = HermaphroditicProduct Classification = Board-to-Board6 Positions CONNECTOR, BLADE & RECEPTACLE, 6WAY CON,BLADE+RECP,SMT,6W,WHT CONN RCPT&BLADE 6POS Hermaphroditic connector with latch 6P, 2058703-3, TE Connectivity TE Connectivity Hermaphroditic 系列 4mm节距 6路 (1排) 直角 照明连接器, 焊接端接, 6A , 表面安装 Herm Blade& Recp Assy,6 Pos,Latch

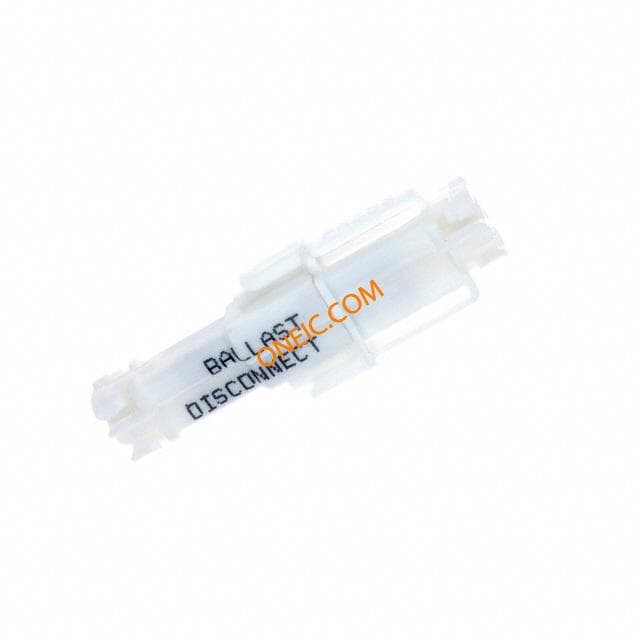

2008152-1
