2029047-2
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 3mm Crimp ST Loose Piece Mini-Universal MATE-N-LOK Connectors CONN RCPT 3MM 2POS MICRO M-N-L Connector,housing,recpt,M-N-L,2 Way,Blk Pin & Socket Connectors RECPT 2 POS BLACK LOW PROFILE Conn Housing RCP 2 POS 3mm Crimp ST Loose Piece Product Highlights:ConnectorHousingNot PreloadedHousing Gender = ReceptacleContact Gender = SocketSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE HOUSING, 2WAY, BLACK CON,HSG,RECP,M-N-L,2W,BLK Crimp housing Pitch3 mm Poles 2 MATE-N-LOK Micro, 2029047-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 1 行 3mm 节距 2 路 直 母 压接连接器外壳 2P MICRO MNL RCPT HSG SR SIDE |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 6000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 250.0 | Voltage Rating | 250 V |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Black | Pitch | 3 mm |
| Width | 5.26mm | Weight | 0.01 |
| Material | :Nylon | Packaging | Bulk |
| Wire Gauge | 20 AWG | Contact Type | Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Housing | Fastening Type | Latching |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Connector Style | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Package Quantity | Loose Piece |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Black |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Center Contact Finish | 3.0 |
| Contact Layout, Typical | In-Line | ||
Product Info
| Note | Contacts sold separately. | Type | Housing |
| Gender | RCP | Series | Micro MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Manufacturer | AMP |
| Product Type | Connector | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Mating Cycles | With | ||
Documents & Media
Similar Parts
794610-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 20-24AWG TIN CRIMP Mate-N-Lok 20-24 awg contact socket Pin & Socket Connectors SOCKET 20-24 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.20-0.60² [24-20] mm [AWG]Bright Tin Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT SOCKET, 24-20AWG, CRIMP Connector,Shell;Receptacle;5A(Max.);250;PhosphorBronze;20-24AWG Contact; female; 0.2÷0.6mm2; Micro MATE-N-LOK; tinned; crimped Crimp contact 5 A Female 20...24 AWG, 794610-1, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 MICRO MNL RPT CNT,LS PC,TIN

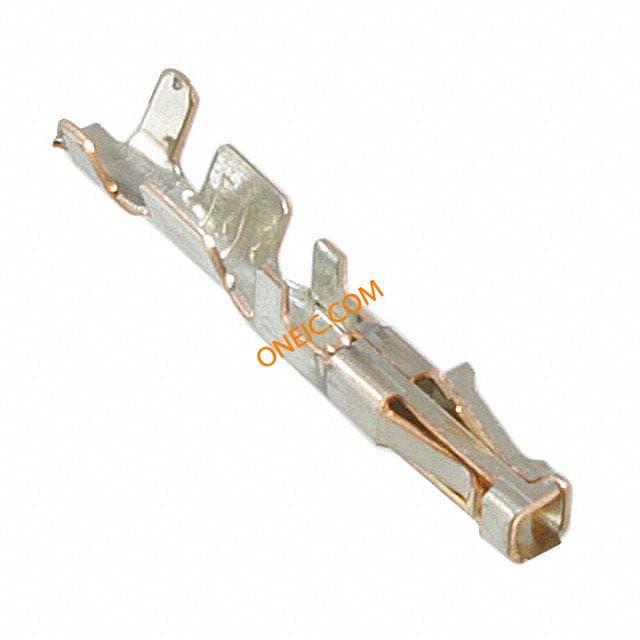

794606-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip 3mm Centerline, 250V, 5 A max. CONN SOCKET 20-24AWG GOLD CRIMP Pin & Socket Connectors MICRO MNL RPT CNT ST 794606-3 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL RPT CNT STRIP 30AU
794610-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 20-24AWG GOLD CRIMP Micro MATE-N-LOK Pin Contact 30-26AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector Connector,Shell;Receptacle;5A(Max.);250;PhosphorBronze;20-24AWG;AMP MICRO MNL,RPT CNT,LS PC,30GOLD

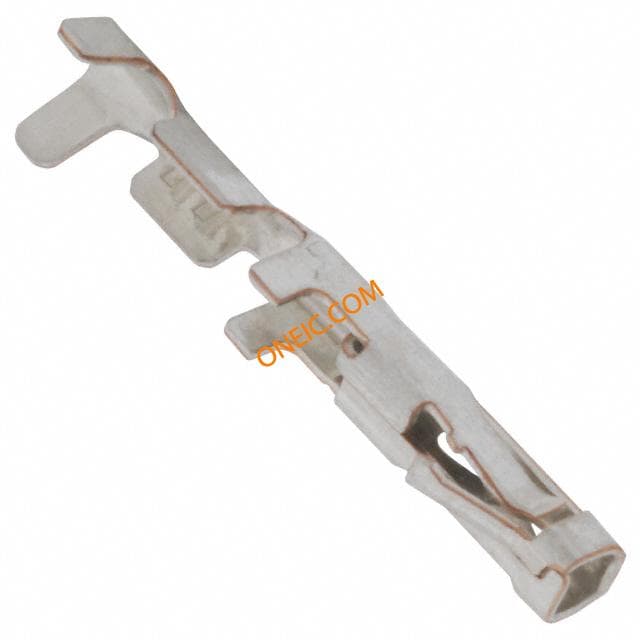

794607-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors RECEP CONTACT 30-26 794607-1 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, CRIMP, SOCKET, 30-26AWG CONTACT, CRIMP, SOCKET, 30-26AWG, REEL Micro MATE-N-LOK 30-26 AWG Crimp Snap In Socket Contact MICRO MNL RPT CNT STRIP 26-30
794611-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG TIN CRIMP Mate-N-Lok 26-30 awg contact socket Pin & Socket Connectors SOCKET 26-30 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Bright Tin Contact Mating Area PlatingLoose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, SOCKET, 30-26 AWG, CRIMP Connector,Shell;Receptacle;5A(Max.);250;PhosphorBronze;26-30AWG;AMP Contact; female; 0.05÷0.12mm2; 26÷30AWG; Micro MATE-N-LOK; tinned TE Connectivity Micro MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 MICRO MNL RPT CNT,LS PC,TIN
794607-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors RECEP CONTACT 30-26 3mm Centerline, 250V, 5 A max. Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1-794611-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Contact socket Mico-Mate-n-Lok Pin & Socket Connectors SOCKET 26-30 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area Plating MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, CRIMP, SOCKET, 30-26AWG Connector,Shell;Receptacle;5A(Max.);250;PhosphorBronze;26-30AWG;AMP TE Connectivity Micro MATE-N-LOK 系列 压接接线端子, 镀镍镀金，镍镀锡触点 MICRO MNL RPT CNT,LS PC,30AU L
1-794607-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors SKT 30-26 PHBR/AU Reel of 15000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Mating Area Plating MaterialPackaging Method = StripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONN SOCKET 26-30AWG MICRO MNL RPT CNT STRP 30AU LF
1-794606-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONTACT RCPT CRIMP 20-24AWG GOLD Contact Crimp Socket 24-20AWG Mate-n-Lok Pin & Socket Connectors SKT 24-20 PHBR/AU Reel of 15000 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (15) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL MICROMNLCONTACTS,MICROMNLRPTCNTSTRP15AULF TE Connectivity Micro MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金触点 MICRO MNL RPT CNT STRP 15AU LF
1-794607-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONTACT RCPT CRIMP 26-30AWG GOLD Pin & Socket Connectors SKT 30-26 PHBR/AU 1-794607-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (15) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, CRIMP, RECEPTACLE, 30-26AWG TE Connectivity Micro MATE-N-LOK 系列 母 压接触点, 压接, 镀金镀镍触点 MICRO MNL RPT CNT STRP 15AU LF
794606-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip 3mm Centerline, 250V, 5 A max. CONN SOCKET 20-24AWG TIN CRIMP Contact,crimp,rec,mico Matenlok,20-24awg Pin & Socket Connectors MICRO MNL RPT CNT ST Reel of 15000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Range = 0.20-0.60² [24-20] mm [AWG]Bright Tin Contact Mating Area PlatingTape & ReelSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONTACT, SOCKET, 24-20 AWG, CRIMP MICROMNLCONTACTS,MICROMNLRPTCNTSTRIP20-24 Contact; female; 0.2÷0.5mm2; 20÷24AWG; Micro MATE-N-LOK; tinned Crimp contact 5 A Female 20...24 AWG, 794606-1, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 MICRO MNL RPT CNT STRIP 20-24
1-794606-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 20-24AWG GOLD CRIMP Contact female 24-20AWG Micro Mate-n-Lok Pin & Socket Connectors SKT 24-20 PHBR/AU Reel of 15000 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.20-0.60² [24-20] mm [AWG]Gold (30) Contact Mating Area PlatingStripSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICROMNLCONTACTS,MICROMNLRPTCNTSTRP30AULF Crimp contact 5 A Female 26...30 AWG, 1-794606-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金触点 MICRO MNL RPT CNT STRP 30AU LF

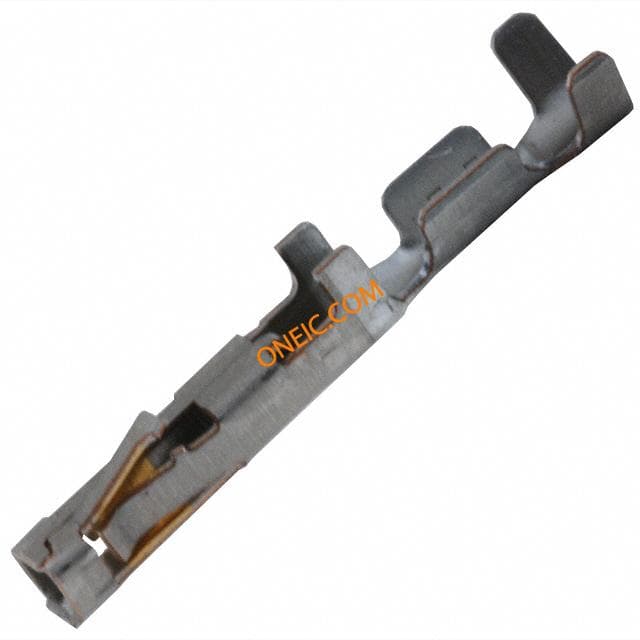

794611-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece 3mm Centerline, 250V, 5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-30 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Gender = SocketWire Range = 0.05-0.15 [30-26] mm [AWG]Gold (30) Contact Plating, Mating Area, MaterialPackaging Method = Loose PieceSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL,RPT CNT,LS PC,30GOLD

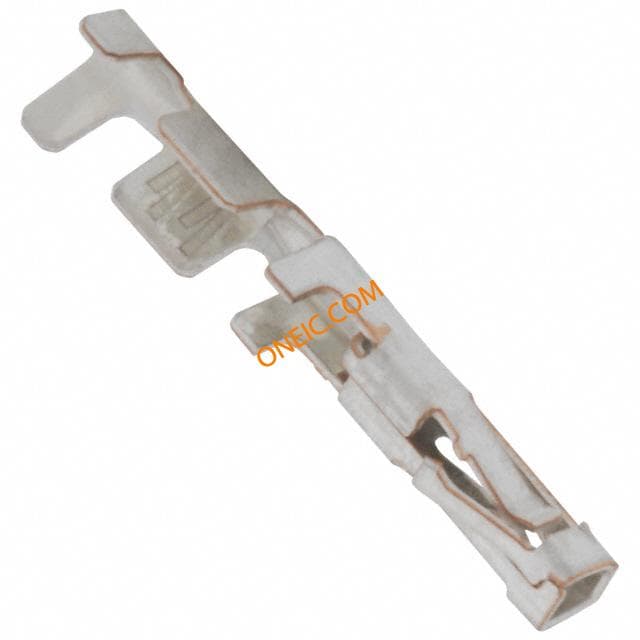

1-794610-1
