201145-4
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount RF Connectors SOCKET ASSY COAX MINIATURE Multiple Coaxial Contacts (COAXICON) CONN PIN MINI COAXI RG/U CABLE RF Connectors / Coaxial Connectors SOCKET ASSY COAX MINIATURE Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = 141, 223, 55, 55A, 55B, 58, 58A, 58B, 58CWire/Cable Type = ShieldedSearch Keywords:RF, multi position, CONTACT, PIN, 22AWG, CRIMP COAX MINIATURE SOCKET ASSY |
| Category |
Business
| Product | Accessories | Standard Pack | 100 |
| Product Category | RF Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Impedance | Non-Matched | ||
Mechanical
| Weight | 0.00091 | Plating | Gold |
| Material | Beryllium Copper | Packaging | Bulk |
| Cable Type | RG-55, RG-55A, RG-55B, RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-223 | Contact Type | Coax |
| Pin or Socket | Pin | Shell Plating | Gold (30) over Nickel (30) |
| Contact Finish | Gold (30) | Shell Material | Brass per MIL-C-50 |
| Contact Material | Beryllium Copper | Termination Style | Crimp |
| 1st Contact Gender | :Pin | Conductor Material | Brass per QQ-B-626 |
| Contact Termination | Crimp | Dielectric Material | Polypropylene |
| Plating - Thickness | 30µin (0.76µm) | Center Contact Plating | Gold (30) over Nickel (30) |
| Supplier Device Package | Straight | Contact Material - Mating | Without |
| Wire Gauge or Range - mm2 | 22, NAS-702, Class B | ||
Product Info
| Note | A ferrule and retention spring (201142-2) are required for each pin and socket. | Type | Coaxial |
| Series | :- | Product Type | Contact |
| For Use With/Related Products | :CR ZIF System, G Series, M Series, W Series Connectors | ||
Documents & Media
Similar Parts
201142-2
te connectivity / amp
Connector Accessories Retention Spring Beryllium Copper Multiple Coaxial Contacts (COAXICON) CONN SPRING RETENTION COAXIAL RF Connector Accessories COAXICON CONTACTS Connector Accessories Retention Spring Beryllium Copper Product Highlights:Retention SpringSearch Keywords:RF, multi position, RETENTION SPRING, M SERIES CONNECTOR RETENTION SPRING,PLTD
202648-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) CONN PIN MODULE 11POS G-SERIES Pin & Socket Connectors PIN MODULE 11P G-SERIES Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 11Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 11 POSN, G-SERIES
202515-1
te connectivity / amp
Conn Housing PL 42 POS ST M Series Connectors CONN PLUG 42 POS MIXED PANEL MT TE Connectivity 42 Way Straight Male Multiway Connector Pin & Socket Connectors 42 POS BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Phenolic Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 42WAY Mseries,plug,42waymixedcontact TE Connectivity M 系列 5 行 42 路 直 公 面板安装 压接连接器外壳 42 POS BLOCK
213090-4
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) PIN MODULE, 8 POSN, G-SERIES G Series Modular Connectors (A Multimate Product) Product Highlights:Contact Module8 PositionsDiallyl Phthalate Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
202515-3
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount M Series Connectors CONN PLUG BLOCK 42POS BLUE Pin & Socket Connectors 42-POS-BLOCK PLUG M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS BLOCK
213091-2
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) SKT MODULE, 8 POSN, G-SERIES Pin & Socket Connectors SKT MODULE, 8 POSN, G-SERIES G Series Modular Connectors (A Multimate Product) Product Highlights:ModuleNumber of Positions = 8Diallyl Phthalate Module MaterialPinReceptacleSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
202515-2
te connectivity / amp
M-SERIES PIN BLOCK,42 POS Pin & Socket Connectors PIN BLOCK 42 POS CONN PLUG M-SERIES 42POS
202515-5
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount Pin & Socket Connectors 42 POS. BLOCK CONN PLUG 42POS MINI M SERIES
202479-2
te connectivity / amp
Conn Rectangular PIN 29 POS ST Panel Mount Pin & Socket Connectors POWER CONN 29 POS PLUG BLOCK M Series Connectors CONN PLUG MIXED BLOCK HSG 29POS M Series Connectors Product Highlights:ConnectorNumber of Positions = 29Phenolic Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, POWER CONN,29 POS,PLUG BLOCK
305183-8
te connectivity / amp
Extraction Tool Insert Discrete Terminals Into Connector Housings Hand Tools ET TYPE IV #20 TOOL EXTRACTION FOR MINI CONTACT Extraction tool,Multimate,type I contact EXTRACTION TOOL EXTRACTIONTOOL,TYPEIVFORSIZE20 ET TYPE IV #20
213092-2
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) CONN PLUG MODULE 4POS G-SERIES Pin & Socket Connectors PIN MODULE 4 POSN G-SERIES G Series Modular Connectors (A Multimate Product) Product Highlights:ModuleNumber of Positions = 4Diallyl Phthalate Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 4 POSN, G-SERIES

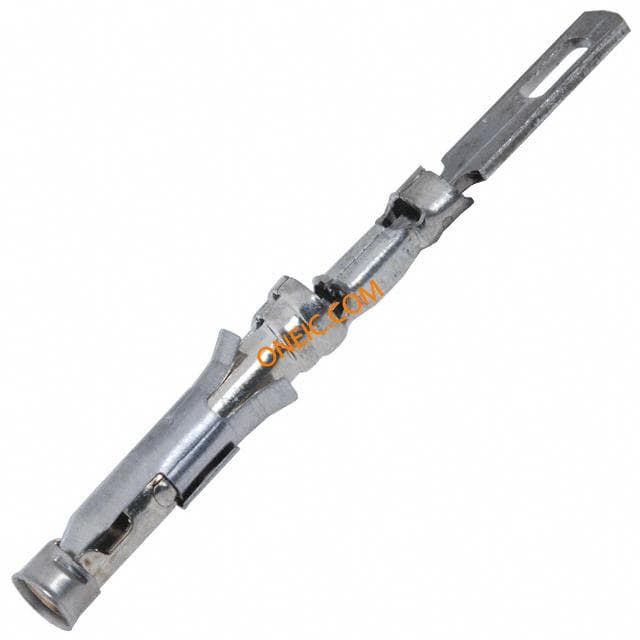

202237-4
