201143-5
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONN PIN MINI COAXI RG/U CABLE RF Connectors / Coaxial Connectors MIN PIN Contact PIN Crimp ST Cable Mount Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Twisted PairCable Type = 174, 188, 188-Type (DB), 188A, 316, 316DBWire/Cable Type = StrandedSearch Keywords:RF, multi position, MIN PIN |
| Category |
Business
| Product | Contacts | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Impedance | Non-Matched | Connector Impedance | 不匹配 |
| Insulation Resistance | 5000 MOhms | ||
Mechanical
| Plating | Gold | Material | Beryllium Copper |
| Packaging | Bulk | Cable Type | RG 316DB, RG 174, RG 188, RG 188DB Type, RG 188A, RG 316 |
| Body Finish | Gold | Orientation | Straight |
| Termination | Crimp | Contact Type | Coaxial |
| Shell Finish | 金 | Body Material | Brass |
| Pin or Socket | Pin | Shell Plating | Gold (30) over Nickel (30) |
| Connector Type | Connector Circular | Contact Finish | Gold |
| Shell Material | Brass per MIL-C-50 | Contact Material | Brass |
| Housing Material | 黄铜 | Panel Mount Type | 直式 |
| Primary Material | 直式 | Termination Style | Crimp |
| Conductor Material | Brass per QQ-B-626 | Contact Termination | Crimp |
| Dielectric Material | Polypropylene | Plating - Thickness | 30µin (0.76µm) |
| Center Contact Finish | 金 | Compatible Shell Size | G 系列模块化连接器 |
| Center Contact Plating | Gold (30) over Nickel (30) | Center Contact Material | 铍铜合金 |
| Supplier Device Package | CR ZIF System, G Series, M Series, W Series | Contact Finish Thickness | 30 |
| Contact Material - Mating | Without | Wire Gauge or Range - mm2 | 0.20-0.40² [24-22] |
Product Info
| Note | Maximum insulation diameter-2.92 [.115] (two wires combined); A ferrule and ret | Type | Coaxial |
| Gender | PIN | Manufacturer | AMP |
| Product Type | Contact | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Similar Parts
201142-2
te connectivity / amp
Connector Accessories Retention Spring Beryllium Copper Multiple Coaxial Contacts (COAXICON) CONN SPRING RETENTION COAXIAL RF Connector Accessories COAXICON CONTACTS Connector Accessories Retention Spring Beryllium Copper Product Highlights:Retention SpringSearch Keywords:RF, multi position, RETENTION SPRING, M SERIES CONNECTOR RETENTION SPRING,PLTD
202648-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) CONN PIN MODULE 11POS G-SERIES Pin & Socket Connectors PIN MODULE 11P G-SERIES Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 11Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 11 POSN, G-SERIES
202515-1
te connectivity / amp
Conn Housing PL 42 POS ST M Series Connectors CONN PLUG 42 POS MIXED PANEL MT TE Connectivity 42 Way Straight Male Multiway Connector Pin & Socket Connectors 42 POS BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Phenolic Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 42WAY Mseries,plug,42waymixedcontact TE Connectivity M 系列 5 行 42 路 直 公 面板安装 压接连接器外壳 42 POS BLOCK
213090-4
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) PIN MODULE, 8 POSN, G-SERIES G Series Modular Connectors (A Multimate Product) Product Highlights:Contact Module8 PositionsDiallyl Phthalate Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
202515-3
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount M Series Connectors CONN PLUG BLOCK 42POS BLUE Pin & Socket Connectors 42-POS-BLOCK PLUG M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS BLOCK
328666
TE Connectivity AMP Connectors

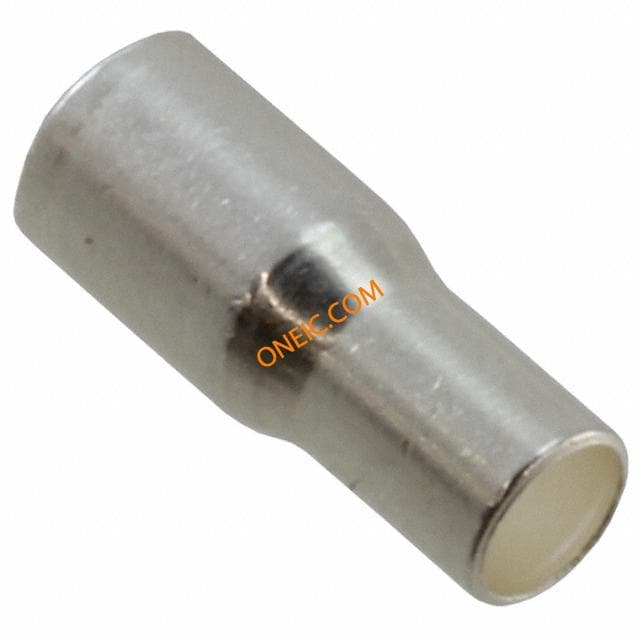

Connector Accessories Ferrule Multiple Coaxial Contacts (COAXICON) CONN FERRULE STEP DOWN GOLD PLTD RF Connector Accessories FERRULE, STEP DOWN PLTD
