2008611-2
| Manufacturer | |
| Description | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Ethernet & Telecom Connectors Plug Kit Solid Unshielded CONN MOD PLUG 8P8C UNSHIELDED Connector, Plug, Strnd, RJ45, Unshielded Modular Connectors / Ethernet Connectors Plug Kit Solid Unshielded 2008611-2 Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 Connector,PlugKit,IP67,ODVACompliant,MetalShell,SolidWire UNSHIELDED PLUG KIT,8P SOL WIR |
| Category |
Business
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Interface | 开放设备网制造商协会 (ODVA) | ||
Mechanical
| Color | Silver | Depth | 35mm |
| Length | 2.358" (59.90mm) | Packaging | Bulk |
| Shielding | Unshielded | Cable Type | Round Cable, Solid Wires |
| Wire Gauge | .081 – .32, .2 | Orientation | Straight |
| Termination | IDC | Mounting Type | Cable Mount |
| Shell Plating | Silicone Rubber | Connector Type | 电线和电缆 |
| Contact Finish | Gold | Mounting Style | Wire |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Zinc | Package Quantity | 1 |
| Primary Material | ConnectorKit | Number of Contacts | 8 |
| Thread/Screw/Hole Size | 锌 | ||
Product Info
| Note | 与 5e 类电缆搭配使用。, 仅用于实心电缆。 | Type | RJ-45 |
| Grade | 工业以太网 | Gender | PL |
| Features | Circular Bayonet Coupling | USOC Codes | RJ45 |
| Preinstalled | 是 | Product Type | 圆形 |
| Pattern Number | RJ45 | Number of Ports | 1 |
| Performance Category | Cat 5e | Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
Environmental
| Ratings | Cat5e | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
Similar Parts
3-231652-0
te connectivity / amp
Modular Plug Hand Tool Crimpers CATEGORY 5 HAND TOOL Unspecified Tools & Accessories CATEGORY 5 HAND TOOL TOOL 8POS CRIMP MOD PLUGS CAT 5 Crimper,Ratchet,ModularPlug Crimper;Ratchet;ModularPlug;8-PositionHighPerformance;Cat5;1-853400-0Die Crimp tool, 3-231652-0, TE Connectivity
2008618-1
te connectivity / amp
Connector Accessories RJ-45 Protective Cover Kit with Chain Straight Zinc Chromate Modular Connectors / Ethernet Connectors Receptacle Cap Industrial Communication Products CONN ACCY CAP SILVER RJ45 circular receptacle closure cap RJ45 circular plug cordset closure cap Connector Accessories RJ-45 Protective Cover Kit with Chain Straight Zinc Chromate Product Highlights:AccessoryAccessory Type = Closure CapProduct Style = CircularNot ShieldedClosure Cap Type = Plug CordsetSearch Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 PROTECTIVE COVER KIT, ZINC ProtectiveCoverKit,Receptacle,MetalShell,IP67 Protective Cover Kit

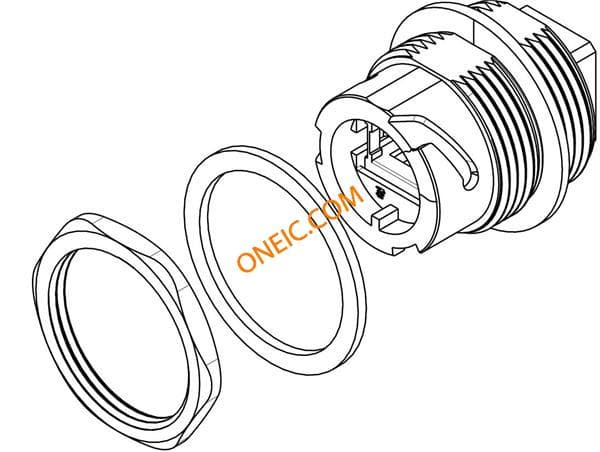

2008615-1
te connectivity / amp
Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e Ethernet & Telecom Connectors Recpt Kit Stranded Unshielded COUPLER MODULAR 8POS-8POS RJ45 circular receptacle connector,panel RJ45 panel mount circular receptacle kit Modular Connectors / Ethernet Connectors Recpt Kit Stranded Unshielded Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 RJ45 ETHERNET CONN, RCPT, 8WAY, PANEL Connector,ReceptacleKit,IP67,ODVACompliant,MetalShell Receptacle Kit
1828740-1
te connectivity / amp
Connector Accessories Plug LC Connector Protective Cap Polybutylene Terephthalate Black Standard Circular Connector Connector Dust Cover Outdoor FO Assemblies CONN ACCY CAP BLACK Dust cover, ODVA LC connector, black Connector Accessories Plug LC Connector Protective Cap Polybutylene Terephthalate Black Product Highlights:Closure CapNot ShieldedClosure Cap Type = Plug CordsetWith LanyardSearch Keywords:Single-Fiber, Telecordia GR-326, 1.25mm Ferrule, Latching, High density, small form-factor CAP, PLUG, PLASTIC, IP67 ConnectorDustCover,IndustrialEthernet ASSEMBLY, PROTECTIVE CAP
354711-3
te connectivity / amp
Connector Accessories 8 POS Modular Plug Terminator Hand Tools TERMINATOR SNGL PLUG 8 POS TOOL CRIMPER MODULAR 8-POSITION
