2-794617-2
| Manufacturer | |
| Description | Conn Housing RCP 22 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 22POS DL MATE-N-L TE Connectivity Micro MATE-N-LOK Series 3mm 22 Way 2 Row Straight Free Hanging Power Distribution Power to the Board 22P HSG RECEPT Conn Housing RCP 22 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 22Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch3 mm Poles 2 x 11 MATE-N-LOK Micro, 2-794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 22 路 直 母 电缆安装 压接连接器外壳 22POS,MICRO MNL,RCPT HSG |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 14.04 mm |
| Pitch | 3 mm | Height | 11.7 mm |
| Weight | 1 | Packaging | Bulk |
| Wire Gauge | 20 AWG | Row Spacing | 0.118" (3.00mm) |
| Termination | Solder | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Package / Case | Receptacle | Housing Material | Nylon |
| Length - Overall | 3.00 [0.118] | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 22 | Contact Termination | Crimp |
| Number of Positions | 22 | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Micro MATE-N-LOK |
| Product Type | Housing | For Use With/Related Products | :Micro MATE-N-LOK Connectors |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
2-794637-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL 15GOLD SMD Pin & Socket Connectors 22POS MICRO MNL ASSY VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
5-794630-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder ST Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 22POS DUAL TIN Power to the Board HDR VERT 22 POS TIN DUAL 22P MICRO MNL ASSY,VRT,HDR,LF 22P MICRO MNL ASSY,VRT,HDR,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
5-794636-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port Pin & Socket Connectors 22P MICRO MNL ASSY VRT SMT LF 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL TIN SMD 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 22Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 22P MICRO MNL ASSY,VRT,SMT,LF
5-794638-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL GOLD SMD Pin & Socket Connectors 22P MICRO MNL ASSY VRT,SMT,LF 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 22Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 22P MICRO MNL ASSY,VRT,SMT,LF
2-794621-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL R/A TIN SMD 22POS MICRO MNL ASSY,R/A,SMT 22POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794682-2
te connectivity / amp
Conn Wire to Board HDR 22 POS 3mm Solder ST Thru-Hole 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL VERT 30GOLD 22POS MICRO MNL ASSY,VRT,THRU 22POS MICRO MNL ASSY,VRT,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794632-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder ST Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 22POS DUAL GOLD 22POS MICRO MNL ASSY,VRT,HDR 22POS MICRO MNL ASSY,VRT,HDR Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794619-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder RA Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL R/A 15GOLD 22POS MICRO MNL ASSY,R/A,HDR 22POS MICRO MNL ASSY,R/A,HDR Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794638-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DUAL GOLD SMD 22POS MICRO MNL ASSY,VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794678-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder RA Thru-Hole 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL R/A 15GOLD 22POS MICRO MNL ASSY,R/A,THRU 22POS MICRO MNL ASSY,R/A,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794634-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder ST SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 22POS DL 15GOLD SMD 22POS MICRO MNL ASSY,VRT,SMT 22POS MICRO MNL ASSY,VRT,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794626-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 22POS DL R/A 30AU SMD
2-794629-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 22POS DUAL R/A GOLD SMD 22POS MICRO MNL ASSY,R/A,SMT 22POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
5-794627-2
te connectivity / amp
Conn Power HDR 22 POS 3mm Solder RA SMD 22 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HDR 22POS DUAL R/A TIN SMD 22P MICRO MNL ASSY,RA,SMT,LF 22P MICRO MNL ASSY,RA,SMT,LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

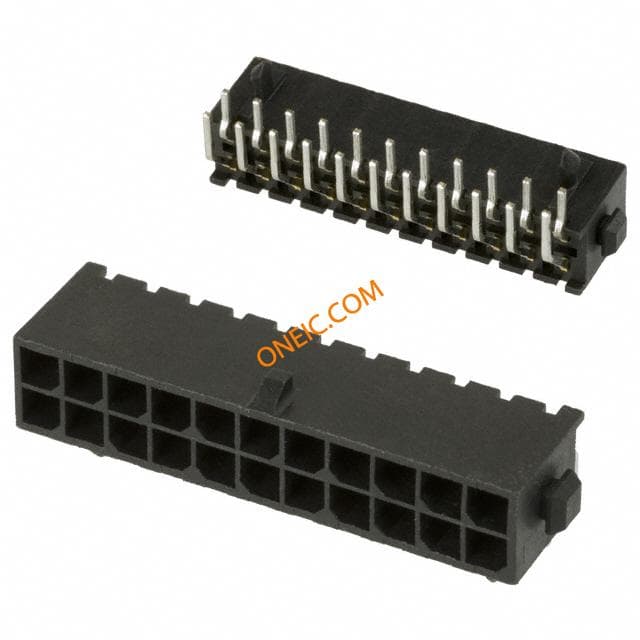

5-794620-2
