2-794617-0
| Manufacturer | |
| Description | Conn Housing RCP 20 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 20POS DL MATE-N-L 20 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 20P Conn Housing RCP 20 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 20Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE, DUAL ROW, 20WAY Connector,SoftShell;Nylon;Receptacle;Black;20;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 10 MATE-N-LOK Micro, 2-794617-0, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 20 路 直 母 压接连接器外壳 20POS,MICRO MNL,RCPT HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | :20mohm |
| Voltage - Breakdown | :1500V | Current Rating (Max) | 5 A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 14.04mm |
| Pitch | 3 mm | Width | 11.7mm |
| Height | 11.7 mm | Length | 31mm |
| Weight | 0.002 | Material | :Nylon |
| Packaging | Bulk | Wire Gauge | 20 AWG |
| Row Spacing | 0.118" (3.00mm) | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 2 |
| Package / Case | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 3.00 [0.118] |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Black | Number of Contacts | 20 |
| Contact Termination | Crimp | Number of Positions | 20 |
| 1st Connector Mounting Type | :Socket | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Housing |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
2-794626-0
te connectivity / amp
Conn Power HDR 20 POS 3mm Solder RA SMD 20 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 20POS DL R/A 30AU SMD Pin & Socket Connectors 20POS MICRO MNL ASSY R/A,SMT 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualRight Angle Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-794681-0
te connectivity / amp
Conn Power HDR 20 POS 3mm Solder ST Thru-Hole 20 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 20POS DL VERT 15GOLD Pin & Socket Connectors 20POS MICRO MNL ASSY VRT,THRU Conn Power HDR 20 POS 3mm Solder ST Thru-Hole 20 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

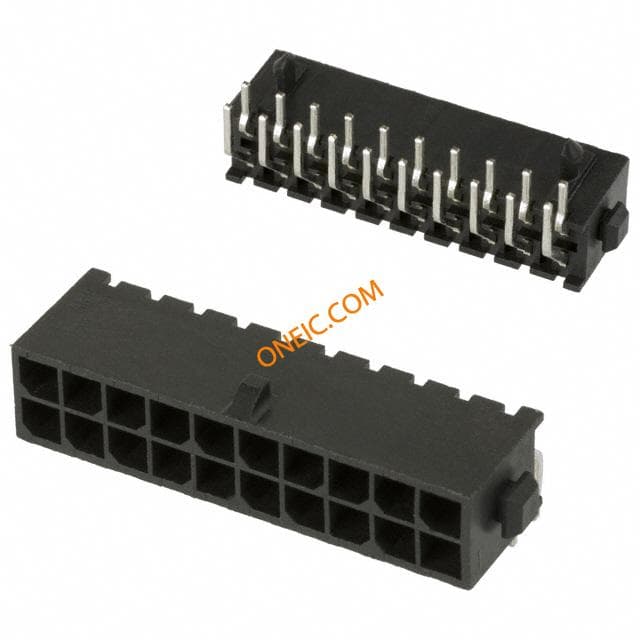

2-794618-0
te connectivity / amp
Conn Power HDR 20 POS 3mm Solder RA Thru-Hole 20 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 20POS DUAL R/A TIN Power to the Board HDR R/A 20 POS TIN DUAL Conn Power HDR 20 POS 3mm Solder RA Thru-Hole 20 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

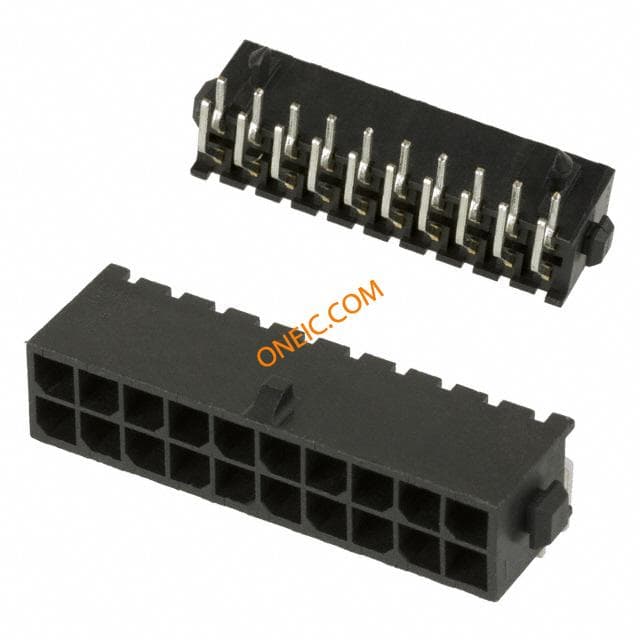

2-794620-0
