2-794542-4
| Manufacturer | |
| Description | Conn Housing PL 24 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PLUG HOUSING 24PS FREE HANG Pin & Socket Connectors 24 DUAC PLUG HSG 94V-2 FR/HANG 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACPlug0 Power Positions24 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 24 DUAC PLUG HSG 94V-2 FR/HANG |
| Category |
Business
| Standard Pack | 250 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | UL File Number | E28476 |
| Approval Agency Marking | 是 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage - Supply | 600 | Voltage - Rated AC | 600 |
Mechanical
| Color | Natural | Pitch | 0.165" (4.20mm) |
| Width | 23.9 mm [ .94 in ] | Height | 11.7 mm [ .46 in ] |
| Length | 51.6 mm [ 2.032 in ] | Material | 尼龙 |
| Packaging | Bulk | Body Color | 自然 |
| Row Spacing | 0.165" (4.20mm) | Contact Type | Male Pin |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Fastening Type | Locking Ramp | Number of Pins | 0 |
| Number of Rows | 2 | Insertion Force | 4 牛顿 |
| Housing Material | 尼龙 | Package Quantity | 250 |
| Termination Style | 插针 | Number of Contacts | 24 |
| Contact Termination | Crimp | Number of Positions | 24 |
Product Info
| Note | Contacts Not Provided | Sealable | 否 |
| Product Type | 连接器 | ||
Environmental
| Operating Temperature | -55 – 105 | ||
Documents & Media
Similar Parts

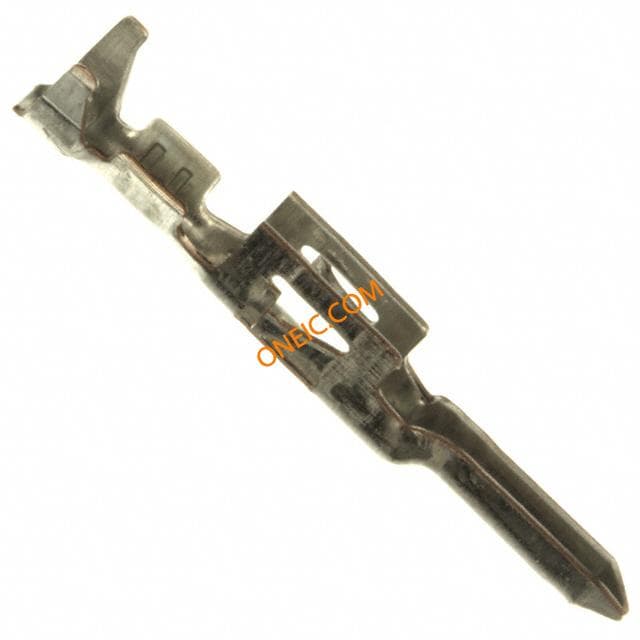

794578-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26AWG TIN CRIMP TERM Pin & Socket Connectors AMP DUAC PIN AMP DUAC PIN 26-22 AWG TIN
794579-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals DUAC PIN 26-22 TIN 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26 AWG TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.12-0.40² [26-22] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Amp- Dual Action 26-22 AWG Male Pin Contact AMP DUAC PIN 26-22 AWG TIN LP
794577-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 18-22AWG TIN CRIMP TERM Headers & Wire Housings AMP DUAC PIN 22-18 A Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.30-0.90² [22-18] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power AMP DUAC PIN 22-18 AWG TIN LP

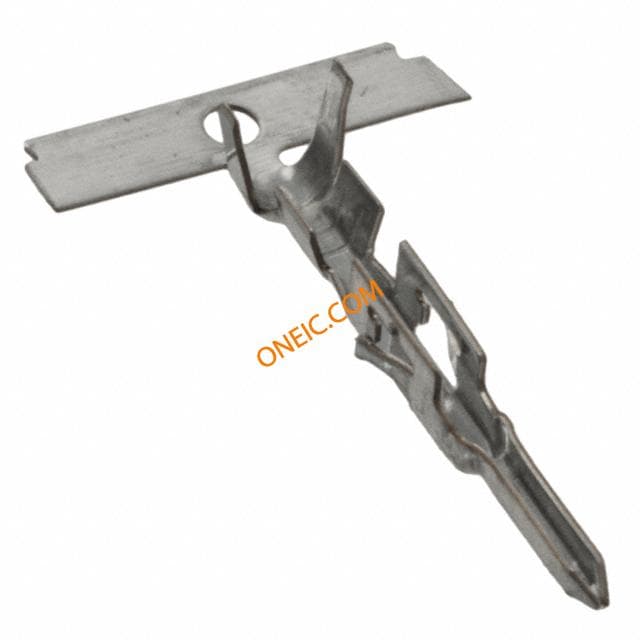

794576-1
