2-641609-1
| Manufacturer | |
| Description | Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube DIP Sockets CONN IC SOCKET 14POS DIP TIN Socket; DIP;Dual Leaf;14 Pos.;0.100In.cen.;Thru Hole;0.310In.;Ber. Copper;Tin IC & Component Sockets 14C DIPLOMATE SOK Conn DIP Socket SKT 14 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:DIP SocketNumber of Positions = 14Row-to-Row Spacing = 7.87 mmThru HoleMount Style = VerticalSearch Keywords:IC sockets, solderless, NIC, Network Interface Cards, PC Cards, EIA RS-415, MIL-S-83734, dual in-line IC package, Socket,DIP;DualLeaf;14Pos.;0.100In.cen.;ThruHole;0.310In.;Ber.Copper;Tin |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | Bulk | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Contact Resistance | 30 mohm | Insulation Resistance | 10000 Mohm |
Mechanical
| Depth | 10.01 mm | Pitch | 2.54 mm |
| Height | 5.33 mm | Packaging | Tube |
| Row Spacing | 7.62 mm | Termination | Solder |
| Mounting Type | Through Hole | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic |
| Length - Overall | 17.65 mm | Number of Contacts | 14 |
| Insulation Material | Thermoplastic | Number of Positions | Not Required |
| Number of Positions or Pins (Grid) | 14 (2 x 7) | ||
Product Info
| Type | DIP Socket | Gender | SKT |
| DELETED | Compliant | Features | Closed Frame |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Similar Parts
24-6337-8809
Kester
Solder 63/37 .025 DIA. 1LB SPOOL SOLDER NO-CLEAN 23AWG 63/37 1LB SOLDER WIRE, 63/37 SN/PB, 183°C, 1LB SolderWire;halide-freerosinno-cleanflux;Sn63Pb37;.025dia;core50;1lb
$139.4680
Details
MFR-2241
OK International
Soldering Irons DUAL OUTPUT 1 PREC TWZR 1 CARTR HP SYSTEM SOLDERING 2OUT 100/240VAC OK International 240V Desoldering Tweezers, 60W Dualoutputw.precisionTweezers,SolderingHandpieceandworkstands
$3355.8000
Details

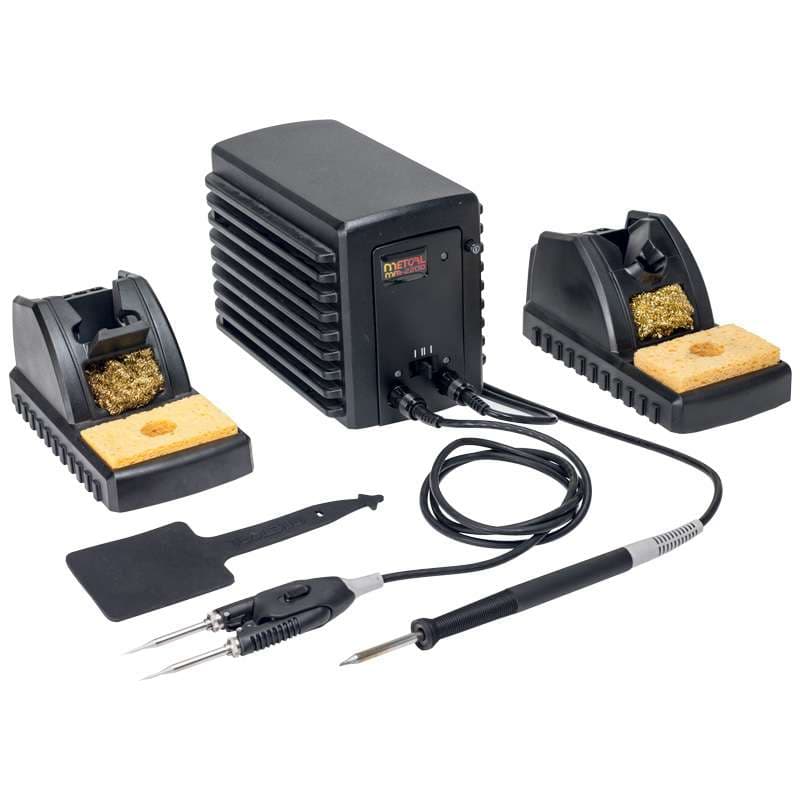

MFR-2241
