2-640388-2
| Manufacturer | |
| Description | Conn Wire to Board HDR 22 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 22POS VERT TIN .156 Headers & Wire Housings 22P HDR RN STR F/L 22P MTA156 HDR ASSY RN STR F/L 22P MTA156 HDR ASSY RN STR F/L Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 1 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| UL File Number | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 600 V | Switch Function | Friction Lock |
| Voltage - Supply | 600 | Connector Impedance | 焊接 |
| Current Rating (Max) | 7 A | ||
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Height | 10.79 mm [ .425 in ] | Packaging | Bulk |
| Body Color | 自然 | Termination | Solder |
| Contact Type | Male Pin | Contact Shape | Round |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Fastening Type | Friction Lock | Mounting Style | 不带 |
| Number of Rows | 1 | Plating - Body | Tin |
| Shell Material | 摩擦锁 | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Length - Overall | 3.432 | Package Quantity | 250 |
| Panel Mount Type | 通孔 - 焊接 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 22 |
| Termination Finish | 不带 | Number of Positions | 22 |
| Compatible Shell Size | MTA .156 连接器组件或 SL .156 连接器组件 | Contact Length - Post | 3.18 mm [ .125 in ] |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 同轴 | Contact Length - Mating | 0.400" (10.16mm) |
| Surface Mount Land Size | Without | Termination Post Length | 3.18 mm |
| Contact Finish Thickness | 2.54 µm [ 100 µin ] | Static Discharge Shielding | 不带 |
| Jacket (Insulation) Thickness | 1.27 µm, 50 µin | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-156 | Sealable | 否 |
| Product Type | Headers | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Similar Parts
5-640428-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 22AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 22AWG RED MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 22Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 22P MTA156 CONN ASSY 22AWG RED
5-640429-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 24AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 24AWG WHT 22P MTA156 CONN ASSY 24AWG WHT
2-640427-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 22POS 20AWG MTA-156
5-640426-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 18AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 18AWG ORA MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector22 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 22P MTA156 CONN ASSY 18AWG ORA
2-643817-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 22POS 18AWG MTA-156
5-640431-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 18AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 18AWG ORA 22P MTA156 CONN ASSY 18AWG ORA
5-640432-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 20AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 20AWG YEL 22P MTA156 CONN ASSY 20AWG YEL
5-640430-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 26AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 26AWG BLU 22P MTA156 CONN ASSY 26AWG BLU
5-640433-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 22AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 22AWG RED 22P MTA156 CONN ASSY 22AWG RED
5-640434-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 24AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 24AWG WHT 22P MTA156 CONN ASSY 24AWG WHT
5-640427-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 22POS 20AWG MTA156 Headers & Wire Housings 22P MTA156 CONN ASSY 20AWG YEL 22P MTA156 CONN ASSY 20AWG YEL 22P MTA156 CONN ASSY 20AWG YEL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
2-640428-2
te connectivity / amp
Conn IDC Connector F 22 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 22POS 22AWG MTA-156 Headers & Wire Housings RECPT 22 POS 22 AWG 22P MTA156 CONN ASSY 22AWG RED 22P MTA156 CONN ASSY 22AWG RED Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

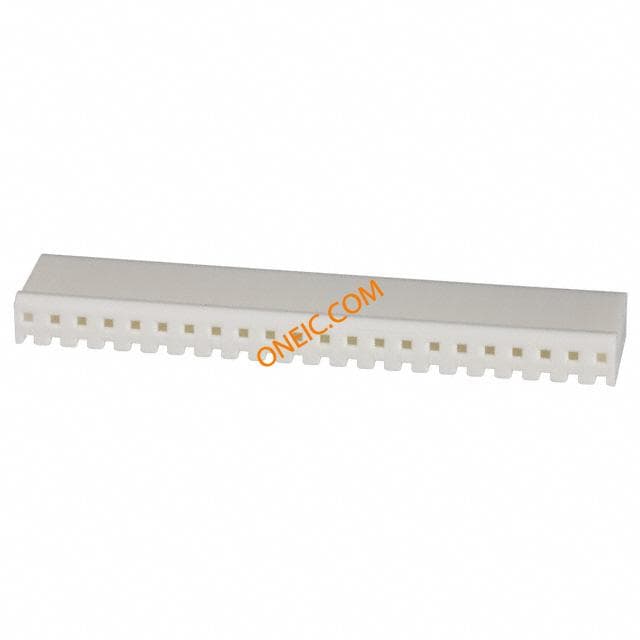

2-640250-2
