2-353908-0
| Manufacturer | |
| Description | Conn Housing RCP 20 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 20POS 1.5MM CRIMP Headers & Wire Housings RECPT HSG 20P CRIMP 1.5mm Conn Housing RCP 20 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 20Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CT REC HSG 20P CRIMP TYPE WHIT |
| Category |
Business
| Tradename | COMMON TERMINATION | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | CSA File Number | LR 7189-133 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 50 VAC, 50 VDC | Resistance - Input | 500 |
| Connector Impedance | 压接 | Current Rating (Max) | 3 |
Mechanical
| Color | White | Pitch | 1.5 mm |
| Shape | 矩形 | Width | .141 in, 3.6 mm |
| Height | 6 mm [ .236 in ] | Length | 31.5 mm [ 1.24 in ] |
| Packaging | Bulk | Body Color | 自然 |
| Wire Gauge | 24-28 AWG | Contact Type | Female Socket |
| 2nd Connector | Without | Mounting Type | Straight |
| Connector Type | Crimp | Mounting Style | 不带 |
| Number of Rows | 1 | Housing Material | Nylon 66 |
| Length - Overall | 1.50 [0.059] | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Termination Style | 插座 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 20 |
| Contact Termination | Crimp | Insulation Diameter | .85 – 1.05 mm [ .0334 – .041 in ] |
| Number of Positions | 20 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mini CT |
| Sealable | 否 | Product Type | Receptacle Housing |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -30 – 105 °C [ -22 – 221 °F ] |
Documents & Media
Similar Parts
353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE
2-292230-0
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.5mm Solder ST SMD T/R 1.5mm AMP Mini CT CONN HEADER 20POS VERT SMD TIN Headers & Wire Housings 20P SMT HDR VT 1.5mm Conn Shrouded Header HDR 20 POS 1.5mm Solder ST SMD T/R Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 20Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL V SMT W/BOSS 2
2-292227-0
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 20POS R/A SMD TIN Headers & Wire Housings 20 POS POST HDR DIP Conn Shrouded Header HDR 20 POS 1.5mm Solder RA SMD Embossed Tape Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W BOSS 2

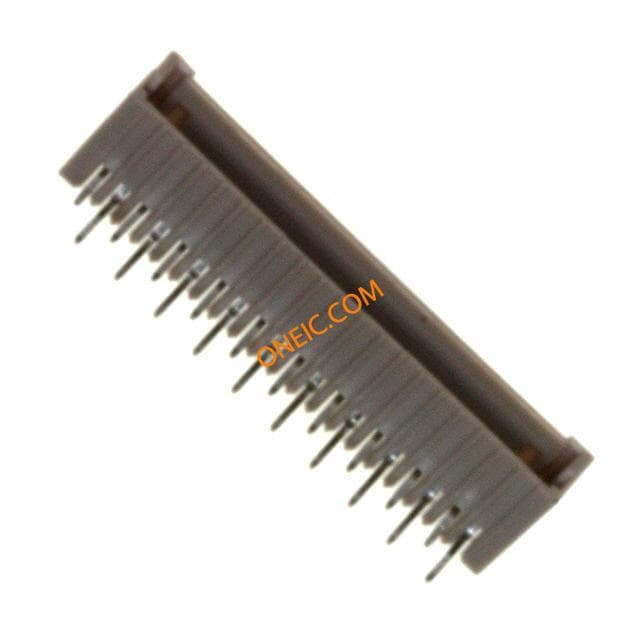

2-292206-0
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.5mm Solder RA Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 20POS R/A 1.5MM TIN Headers & Wire Housings 20P DIP HDR R/A 1.5mm Conn Shrouded Header HDR 20 POS 1.5mm Solder RA Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 20Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, MINI CT SGL DIP H 20P NAT

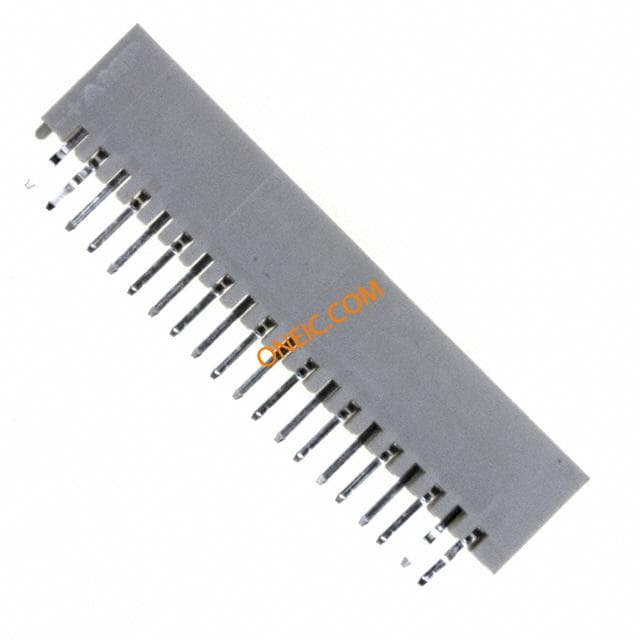

2-292207-0
