2-353294-2
| Manufacturer | |
| Description | Connector Accessories 22 POS Housing Holder Nylon 66 White Loose Piece 1.5mm AMP Mini CT CONN HOUSING 22POS DUAL 1.5MM Connector holder, 1.5mm,22 way, Mini-CT Headers & Wire Housings MOUNTING HOLDER 22P 1.5mm Connector Accessories 22 POS Housing Holder Nylon 66 White Loose Piece Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Connectorholder,1.5mm,22way,Mini-CT TE Connectivity AMP Mini CT 系列 PCB 壳体 AMP MINI D/R HDR HSG 22P NATU |
| Category |
Business
| Tradename | Common Termination | Other Names | A99762 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 600 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | CSA File Number | LR 7189 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 压接/IDC |
| Current Rating (Max) | 2 | ||
Mechanical
| Color | White | Depth | 6mm |
| Shape | 矩形 | Width | 7.4mm |
| Height | 7.4 mm [ .291 in ] | Length | 22mm |
| Packaging | 袋/盒 | Body Color | 白色 |
| Wire Gauge | 28 – 24 | Contact Type | 底座 |
| Connector Type | 线到板, 线到线, 线到面板, 线到面板 | Number of Rows | 2 |
| Housing Material | Nylon 66 | Length - Overall | 1.50 [0.059] |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Number of Contacts | 22 | Insulation Diameter | .85 – 1.05 mm [ .0334 – .041 in ] |
| Number of Positions | 22 | ||
Product Info
| Note | Two receptacle connectors are applied per holder. | Type | Holder |
| Series | 2-353294 | CAD Drawing | 3D CAD Model |
| Product Type | Mounting Holder | Accessory Type | Shroud |
| RF Family/Standard | 353294 | Other Specifications | 内部 |
| For Use With/Related Products | Mini CT Series | ||
Environmental
| Operating Temperature | -65 – 105 °C [ -85 – 221 °F ] | ||
Similar Parts
1-353293-1
te connectivity / amp
Conn IDC Connector RCP 11 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 11POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,11W,Mini-CT Headers & Wire Housings RCPT 11 POS GRY MINI 1.5mm Conn IDC Connector RCP 11 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 11Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,11W,Mini-CT TE Connectivity AMP Mini CT 系列 11路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 11P GRAY

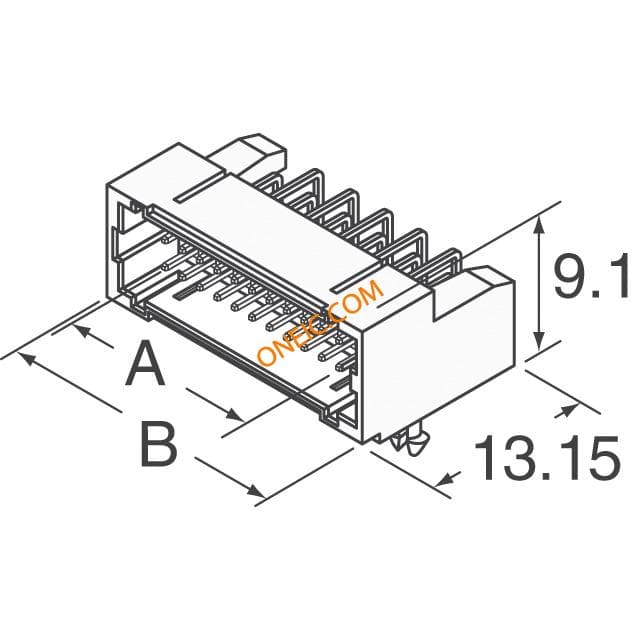

2-292262-2
