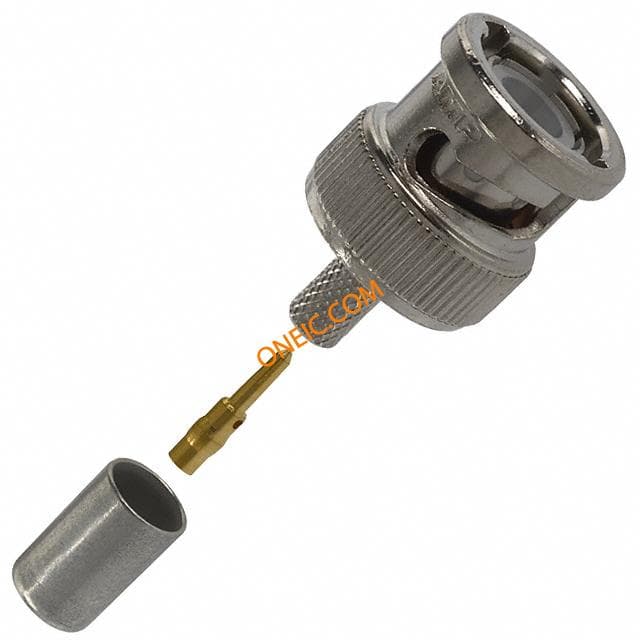

2-331350-9
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 2.5GHz 50Ohm Crimp ST Cable Mount Gold Bulk BNC RF Connectors CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors D.C. PLUG 50 OHM Conn BNC PL 0Hz to 2.5GHz 50Ohm Crimp ST Cable Mount Gold Bulk Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC PLUG |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Part # Aliases | M39012 M39012/16B0007 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Rad Hardened | No |
Electrical
| Frequency | 0 to 2.5 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500 V | Frequency - Max | 4GHz |
| Connector Impedance | 压接 | Impedance (Max) (Zzt) | 50 |
| Insulation Resistance | 5000 MOhms | ||
Mechanical
| Diameter | 14.53 mm | Packaging | Bulk |
| Cable Type | RG-142, RG-142A, RG-142B | Body Finish | Silver |
| Cable Group | RG-142, 142A, 142B | Orientation | Straight |
| Termination | Crimp | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Cable |
| Plating - Body | Silver | Connector Style | BNC |
| Contact Material | Brass | Length - Overall | 30.18 mm |
| Primary Material | 黄铜 | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Fluoropolymer (FP) | Insulation Material | Teflon |
| Number of Positions | 1 | Center Contact Finish | 金 |
| Center Contact Plating | Gold | Thread/Screw/Hole Size | 黄铜 |
| Center Contact Material | Brass | Supplier Device Package | Straight |
| 1st Connector Orientation | 直式 | Outside Pipe Diameter (Max) | 14.529 mm [ .572 in ] |
Product Info
| Type | BNC | Grade | 军事 |
| Gender | PL | Polarity | Standard |
| Sealable | 否 | Connection Type | Coaxial Cable |
| RF Family/Standard | 331350 | ||
Environmental
| Operating Temperature | - 65 C to + 165 C | ||
