2-292173-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 3POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings CT BOX HDR H SMT 3P Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = Header3 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, HEADER, SMT, 3WAY HEADERBOXHMT,3WAY CT BOX HDR H SMT 3P O/TAPE BLA |
| Category |
Business
| Tradename | Common Termination | Other Names | A100982CT |
| Product Category | Headers & Wire Housings | Standard Package | Tape & Reel |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Reflow solder capable to 245°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP CT Series | Voltage Rating | 125 V ac/dc |
| Switch Function | No | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Pitch | 2 mm |
| Weight | 0.02 | Packaging | Tape & Reel (TR) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Right Angle |
| Connector Type | Crimp, MT (Mass Termination) | Contact Finish | Tin |
| Mounting Style | Surface Mount | Number of Rows | 1 |
| Connector Usage | Header | Contact Material | Brass |
| Housing Material | Polyphenylene Sulfide (PPS) | Length - Overall | 2.00 [0.079] |
| Package Quantity | Tape Mounted | Panel Mount Type | Without |
| Termination Style | SMD | 1st Contact Gender | Pin (Male) |
| Header Orientation | Box | Number of Contacts | 3 |
| Contact Termination | :Surface Mount Right Angle | Number of Positions | 3 |
| Contact Length - Mating | 0.165" (4.19mm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 2-292173 | Features | Solder Retention |
| Product Type | Connector | Connection Type | Printed Circuit Board |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts

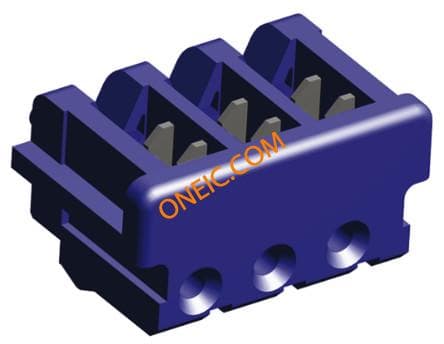

2-173977-3
