2-1658527-8
| Manufacturer | |
| Description | Headers & Wire Housings 34 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 622 SERIES 34POS 34 way IDC bump polarised socket Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 34WAY TE Connectivity AMP-LATCH 622 系列 2行 34路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-3441LF=FSKT IDC S 34 30AU |
| Category |
Business
| Other Names | 216585278 | Product Category | Headers & Wire Housings |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 622 Series | Voltage - Breakdown | :500V |
| Insulation Resistance | :1Gohm | Contact Rating (Current) | :1A |
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 0.100" (2.54mm) | Height | 12.1 mm |
| Weight | 0.006 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 26-28 AWG, Stranded or Solid |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | 622 Series |
| Contact Finish | Gold (30) | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic | Length - Overall | 47.68 mm |
| Mounting Feature | Without | Cable Termination | IDC |
| Termination Style | IDC | Mating Orientation | With |
| Number of Contacts | 34 | Contact Termination | :IDC / IDT |
| Number of Positions | 34 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Ribbon Cable | Gender | Receptacle |
| Features | Feed Through; Polarizing Key, Strain Relief | Polarity | :Bump/Clip |
| CAD Drawing | 3D CAD Model | Product Type | Socket Headers |
| Connection Type | Ribbon Cable | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | :125°C |
Similar Parts
5111448-8
te connectivity / amp
Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 34POS UNIV I/O W/EARS Ribbon cable conn.male,34 way,2.54mm,blk Headers & Wire Housings 034 UNIV I/O 30DP SLOT Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 34PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board Ribboncableconn.male,34way,2.54mm,blk TE Connectivity AMP-LATCH 系列 2行 34路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 034 UNIV I/O 30DP SLOT
2-5499206-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 34P VT BLU LARGE LATCH Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile34 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 34WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT LG LAT B

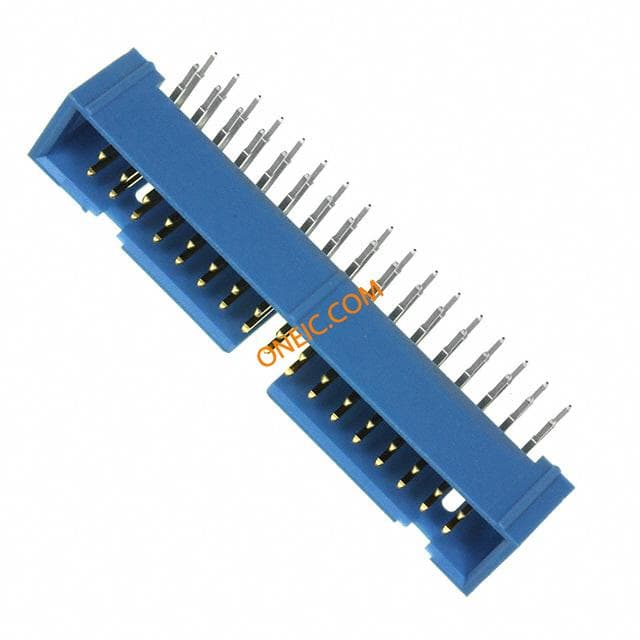

3-1761605-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 34POS 30AU Headers & Wire Housings LOW PRO HDR 34P RA Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 34WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 34P RA BLUE

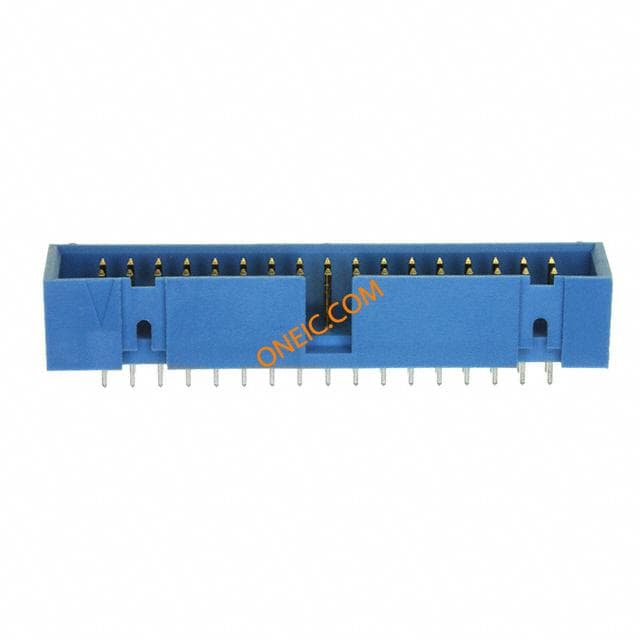

3-1761603-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS 30AU TE Connectivity 3-1761603 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 34P VERT BLUE Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT BLUE
3-1761606-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 34POS VERT GOLD TE Connectivity 3-1761606 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X017P VRT LPRO Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 34WAY 34waymalestraightfrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 34P VERT LG LA
191-2801-134
Amphenol Spectra-Strip
Flat Cables 28 AWG Ribbon .050 Zip 34 Cond Planar/ribbon cable,1.27mm pitch,34 way cable;flat(planar);gray pvc insul w/1 red edge;34 conductor;28 awg stranded; 30m Flat Cable 34Conductors 28AWG 30.48m Tinned Copper Gray/Red Edge 300V 1A RIBBON CABLE, 34WAY, 30.5M FLAT CABLE, 34COND, 100FT, 28AWG, 300V cable, flat(planar), gray pvc insul w/1 red edge, 34 conductor, 28 awg stranded Cable: ribbon; 1.27mm; stranded; Cu; 34x28AWG; PVC; grey; 30,5m Ribbon Cable 1.27 mm 34xAWG 28, 191-2801-134, Amphenol Amphenol Spectra-Strip 系列 无屏蔽 带状电缆 FLAT CABLE 34PTS AWG28-19

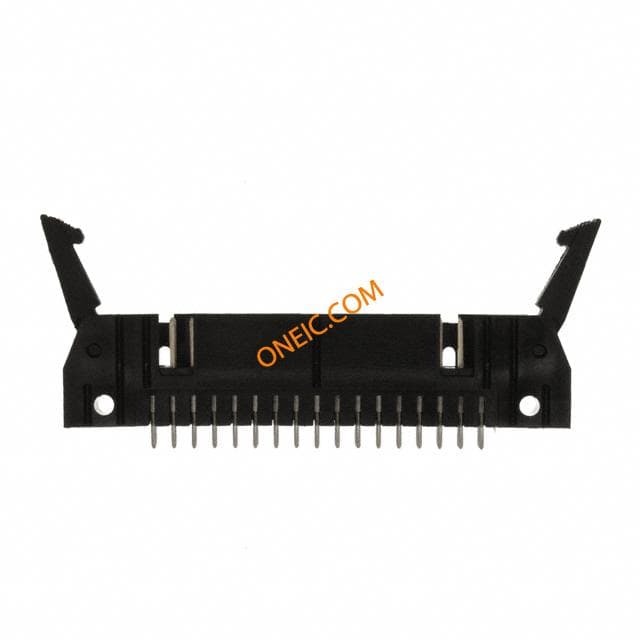

5499206-8
