2-1658527-2
| Manufacturer | |
| Description | Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 14POS W/POLAR .100 14 way IDC bump polarised socket Headers & Wire Housings 14 POS RECPT 30AU Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 14ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 14WAY 14wayIDCbumppolarisedsocket TE Connectivity AMP-LATCH 622 系列 2行 14路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1441LF=FSKT IDC S 14 30AU |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 622 Series | Switch Function | Unlatched |
| Voltage - Breakdown | :500V | Current Rating (Max) | 1 A |
| Insulation Resistance | :1Gohm | Contact Rating (Current) | :1A |
Mechanical
| Color | Blue | Pitch | 2.54 mm |
| Weight | 0.0343 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 26-28 AWG, Stranded or Solid |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | 622 Series |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic |
| Mounting Feature | Without | Primary Material | IndustrialRectangular |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 14 | Contact Termination | :IDC / IDT |
| Number of Positions | 14 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Features | Feed Through; Polarizing Key, Strain Relief | Polarity | :Bump/Clip |
| CAD Drawing | 3D CAD Model | Manufacturer | 622Series |
| Product Type | Socket Headers | Connection Type | Ribbon Cable |
Environmental
| Mating Cycles | :200 | Operating Temperature | - 55 C to + 125 C |
Documents & Media
Similar Parts
2-1761603-5
te connectivity / amp

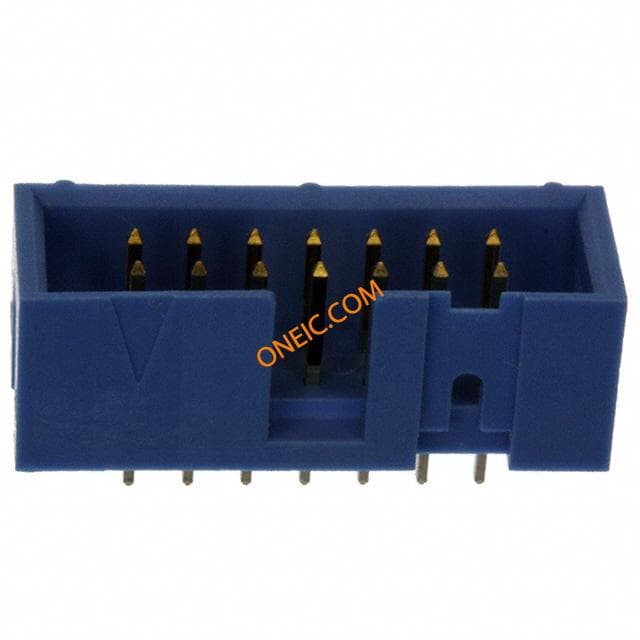

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 14 POS VERT LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 14WAY HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:14; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT BLUE
2-1761607-5
te connectivity / amp

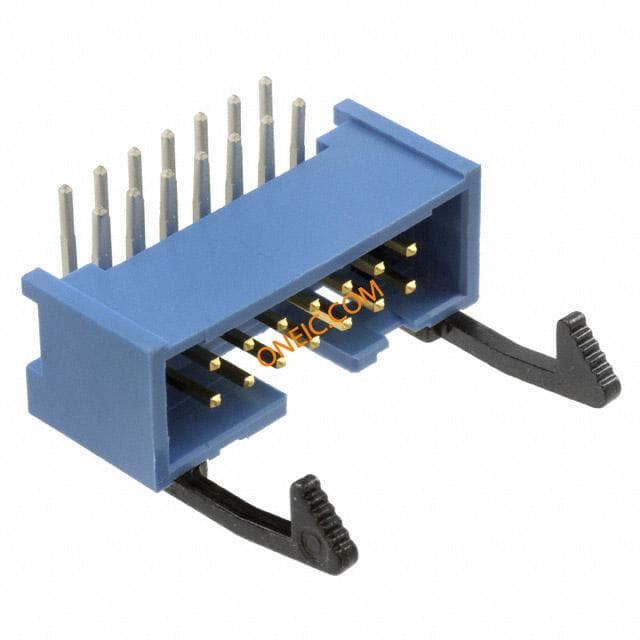

Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 14POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings LPRO HDR 14P RA LG LAT Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 14WAY 14waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT
2-1761605-5
te connectivity / amp

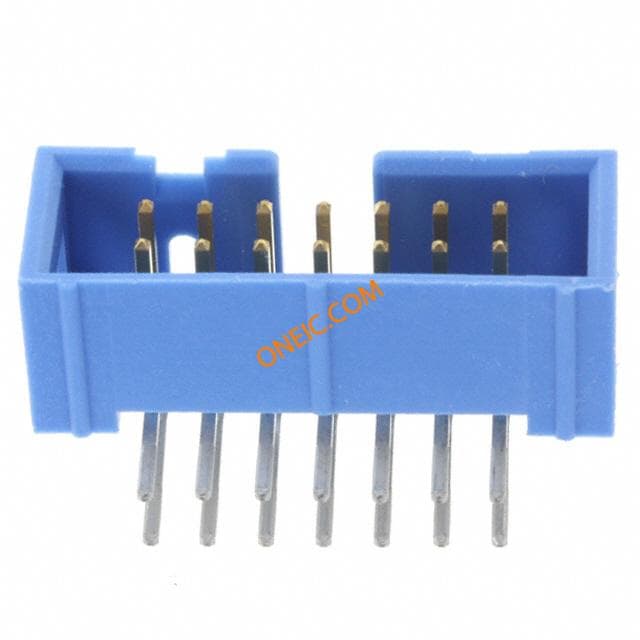

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 14 POS R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 14WAY 14wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA BLUE
191-2801-114
Amphenol Spectra-Strip

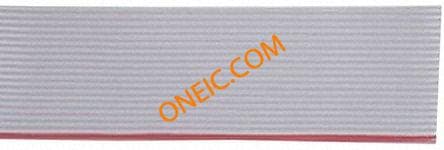

Flat Cables 28 AWG Ribbon .050 Zip 14 Cond 100" FLAT CABLE 14PTS AWG28 Flat Cables 28 AWG Ribbon .050 Zip 14 Cond 100' Planar/ribbon cable,1.27mm pitch,14 way cable;planar(flat);gray pvc insul w/1 red edge;14 conductor;28 awg stranded; 30m Flat Cable 14Conductors 28AWG 30.48m Tinned Copper Gray/Red Edge 300V 1A RIBBON CABLE, 14WAY, 28AWG, 300V, PER M RIBBON CABLE, 14WAY, 30.5M cable, planar(flat), gray pvc insul w/1 red edge, 14 conductor, 28 awg stranded Cable: ribbon; 1.27mm; stranded; Cu; 14x28AWG; PVC; grey; 30,5m Ribbon Cable 1.27 mm 14xAWG 28, 191-2801-114, Amphenol Amphenol Spectra-Strip 系列 14 路 无屏蔽 带状电缆, 17.78 mm 宽
