2-1586041-4
| Manufacturer | |
| Description | Conn Wire to Board HDR 24 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 24POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 24P Conn Wire to Board HDR 24 POS 4.2mm Solder RA Thru-Hole Product Highlights:Pin HeaderNumber of Circuits = 24UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,24POS,DUALROW,UL94V-2,W/OPEGS Male connector 90° Pitch4.2 mm Poles 2 x 12 VAL-U-LOK, 2-1586041-4, TE Connectivity 24P VAL-U-LOK R/A HDR V2 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Trays |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Wave solder capable to 240°C |
| CSA File Number | 208567 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 600 V | Number of Poles | 2 x 12 |
| Voltage - Supply | 600 | Frequency - Center | 带有 |
| Current Rating (Max) | 9 A | ||
Mechanical
| Pitch | 4.2 mm | Width | 13 mm [ .51 in ] |
| Height | 9.8 mm [ .39 in ] | Length | 51.6 mm [ 2.031 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Mounting Style | Through Hole |
| Number of Pins | 24 | Number of Rows | 2 |
| Package / Case | Plug | Contact Material | Tin-plated brass |
| Housing Material | Nylon | Package Quantity | 70 |
| Panel Mount Type | 通孔 - 焊接 | Primary Material | InterconnectSystem |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 24 | Insulation Diameter | 1.2 – 3.1 mm [ .047 – .122 in ] |
| Number of Positions | 24 | 1st Connector Gender | Male |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 直插式, 矩阵 | Termination Post Length | 3.6 mm [ .14 in ] |
| Contact Finish Thickness | 80 µm [ 2.03 µin ] | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | PE | Manufacturer | VAL-U-LOK |
| Product Type | Pin Header | Connection Method | Wire-Board |
| Number of Circuits | 24 | Selectively Loaded | No |
| Application Specifics | Power | Assembly Configuration | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
| Thermal Resistance of Package | .063 mm [ 1.6 in ] | ||
Similar Parts
2-794954-4
te connectivity / amp
Conn Housing RCP 24 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 24POS FREE HANGING 24 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 24P Conn Housing RCP 24 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 24UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, RCPT, DUAL ROW, 24 WAY, NYLON Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Female crimp housing Pitch4.2 mm Poles 2 x 12 VAL-U-LOK, 2-794954-4, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 24 路 直 母 压接连接器外壳 24P RCPT VAL-U-LOK V2

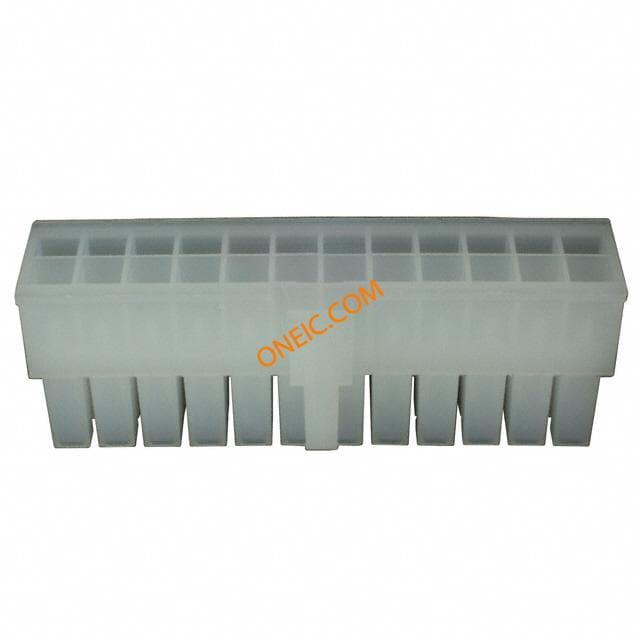

2-106527-4
