2-1375820-4
| Manufacturer | |
| Description | Conn Housing RCP 24 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 24POS CST-100 II Headers & Wire Housings RCPT 24 POS .100 WHT CST-100 II CST-100 II HOUSING 24 POS CST-100 II HOUSING 24 POS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 1 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | 已认证 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 压接 |
| Current Rating (Max) | 7 | ||
Mechanical
| Color | White | Pitch | 2.54 mm |
| Height | 6.6 mm [ .26 in ] | Length | 61.47 mm [ 2.42 in ] |
| Lock Type | 不带 | Packaging | Bulk |
| Shrouding | No | Body Color | 自然 |
| Cable Exit | 180° | Wire Gauge | 22-28 AWG |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Crimp | Contact Finish | 2.54 [0.100] |
| Fastening Type | Locking Ramp | Mounting Style | 不带 |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Housing Material | Polymer | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 24 |
| Termination Finish | 不带 | Contact Termination | Crimp |
| Number of Positions | 24 | Compatible Shell Size | 配合指定的 MTA .100 接头、类似竞争性带缺口接头和 CST .100 带罩接头 |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | CST-100 II Housings | Application Specifics | Wire-to-Board |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
2-640454-4
te connectivity / amp
Conn Wire to Board HDR 24 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 24P HDR SQ STR POL MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 24POS VERT .100 TIN 24P MTA100 HDR ASSY SQ STR POL 24P MTA100 HDR ASSY SQ STR POL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
2-640452-4
te connectivity / amp
Conn Unshrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 24POS VERT .100 TIN Headers & Wire Housings 24P HDR ASSY SQ STR 24P MTA100 HDR ASSY SQ STR
1375819-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Contact crimp Rec 26-22AWG CST-100 Headers & Wire Housings 0.1 CONTACT 30 Au Gold Plated Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 II ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area PlatingWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 II HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP ContactcrimpRec26-22AWGCST-100 TE Connectivity CST-100 II 系列 母 压接接线端子, 压接, 镀金镀镍触点 CST-100 II CONTACT 30 GOLD PLT
2-640457-4
te connectivity / amp
Conn Wire to Board HDR 24 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 24P HDR SQ R/A F/L MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 24POS R/A .100 TIN Conn Wire to Board HDR 24 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 24P MTA100 HDR ASSY SQ R/A F/L
1445336-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONTACT CST-100 II 26-22AWG 30AU Contact Crimp 26-22AWG CST-100 Pin & Socket Connectors .1 CONTACT 30 Au Gold Plated Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 II ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 II HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, CST-100, 26-22AWG ContactCrimp26-22AWGCST-100 TE Connectivity CST-100 II 系列 母 压接接线端子, 压接, 镀金镀镍触点 LOOSE PC CONTACT 30 AU PLATED

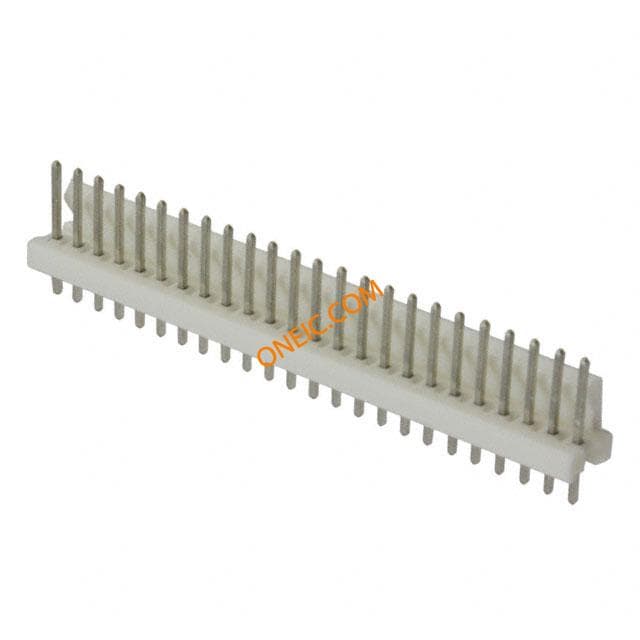

2-640456-4
