2-111623-1
| Manufacturer | |
| Description | Conn IDC Connector RCP 20 POS 2mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT IDC 20POS 2MM POL GOLD Connector IDC 20 way socket 2mm Headers & Wire Housings 2MM REC 2X10P POLARIZED F/T Conn IDC Connector RCP 20 POS 2mm IDT RA Cable Mount Product Highlights:Connector Type = .079 [2.0mm] AMP-LATCHNumber of Positions = 20ReceptacleMating Polarization Method = CenterWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONN, RECEPTACLE, 20POS, 2MM CONNECTOR,RECEPTACLE,2MMAMP-LATCH,20POSITION,WITHMATINGPOLARIZATION IDC socket 2 mm pitch 2 x 10P, 2-111623-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2行 20路 2mm节距 直角 母 IDC 连接器 , 电缆安装 20, 2MM, POL,30 DP, LEAD FREE |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Voltage Rating | 125 V ac |
| Contact Resistance | 25 mohm | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 125VAC | ||
Mechanical
| Color | Black | Depth | 5.16 mm |
| Pitch | 2 mm | Height | 10.24 mm |
| Weight | 0.00136 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | Without |
| Wire Gauge | 28 AWG | Row Spacing | 0.079" (2.00mm) |
| Termination | IDT | Contact Type | Female Socket |
| Pitch - Post | 2.00 x 2.00 [.079 x .079] | Polarization | Center |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | .079 [2.0mm] AMP-LATCH | Contact Finish | Gold Over Nickel |
| Mounting Style | Wire | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Polyester |
| Length - Overall | 25.17 mm | Mounting Feature | Without |
| Primary Material | InterconnectSystem | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 20 |
| Contact Termination | :IDC / IDT | Number of Positions | 20 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Note | Accepts 28 AWG [0.08-0.09mm²] ribbon cable, 0.61-0.97 [.024-.038] thick PVC 1. | Type | IDC Connector |
| Gender | RCP | Series | AMP-LATCH |
| Features | Feed Through, Polarizing Key | Cover Type | Feed Thru |
| Manufacturer | AMP-LATCH | Product Type | Receptacles / Sockets - Housings |
| Connection Type | Ribbon Cable | With Modem Control | Yes |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
PDF Document
Online Document
Similar Parts

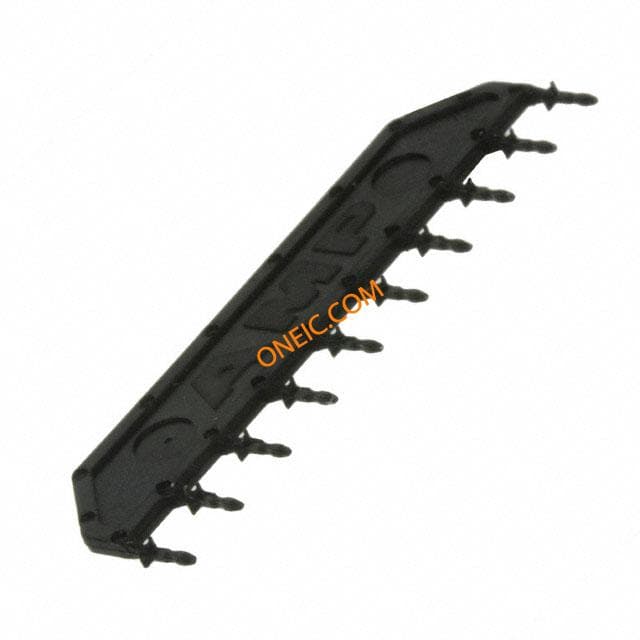

111620-1
