2-111196-9
| Manufacturer | |
| Description | Conn IDC Connector RCP 26 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 26POS .050X.100" IDC Headers & Wire Housings 26 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 26 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 26Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 026RCPTSYSTEM5030DPLX TE Connectivity AMP-LATCH System 50 系列 2行 26路 0.64mm节距 母 IDC 连接器 , 电缆安装 026 RCPT SYSTEM 50 30 DPLX |
| Category |
Business
| Other Names | A31859 | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 30 V | Switch Function | Latch |
| Voltage - Supply | 30 | Connector Impedance | 锁闩, 锁闩 |
| Current Rating (Max) | 500 mA | Insulation Resistance | 5000 MOhms |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Shape | 矩形 | Height | 12.32 mm [ .485 in ] |
| Length | 23.114 mm [ .91 in ] | Packaging | Bulk |
| Wire Type | Ribbon Cable | Body Color | 黑色 |
| Cable Type | 带状电缆 | Wire Gauge | 30-32 AWG |
| Orientation | 直 | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 2 | Insert Material | 铜合金 |
| Locking Feature | 带有 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 60 |
| Panel Mount Type | 不带 | Termination Rows | IDC |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 26 |
| Termination Finish | 带有 | Number of Positions | 26 |
| Bushing, Grommet Type | 带有 | Compatible Shell Size | 柱体接头组件 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | AMP | Features | Feed Through |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
6-104666-1
te connectivity / amp
Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 26POS DUAL T/H GOLD Headers & Wire Housings 26SYSTEM 50 HDR DRST SHRD SN Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 26Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 26 SYSTEM 50 HDR DRST SHRD SN
1-104068-2
te connectivity / amp
Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 26POS VERT SHRD Headers & Wire Housings SYSTEM 50 HDR 26P 966 Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 26Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 26 SYSTEM 50 HDR DRST SHRD
1-104666-1
te connectivity / amp
Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADR 26POS DUAL VERT GOLD Headers & Wire Housings 26 SYSTEM 50 HDR DRST SHRD Conn Shrouded Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Header - Pin26 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 26 SYSTEM 50 HDR DRST SHRD
6-104069-3
te connectivity / amp
Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER R/A 26POS T/H 30GOLD TE Connectivity AMPMODU Series 1.27, 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 050X100 HDR 2X13P R/A T/H Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:HeaderConnector Style = Plug26 PositionsNumber of Rows = DualShroudedSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU Header26waypin2.54mmAmpModu TE Connectivity AMPMODU System 50 系列 1.27 mm, 2.54 mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 26 sys 50 hdr drra shrd sn
1-104069-3
te connectivity / amp
Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER R/A 26POS T/H 30GOLD Headers & Wire Housings SYSTEM 50 HDR 26P 1320 26 SYSTEM 50 HDR DRRA SHRD 26 SYSTEM 50 HDR DRRA SHRD Search Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU

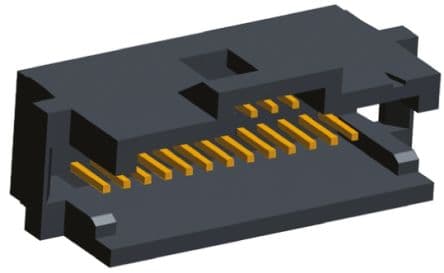

6-104068-2
