2-1103102-3
| Manufacturer | |
| Description | Conn Heavy-Duty Rectangular PIN 7Signal/1Ground POS Crimp ST Cable Mount Loose Piece CONN PIN INSERT 7+PE POS CRIMP Heavy Duty Power Connectors HN.D.7.STI.C Conn Heavy-Duty Rectangular PIN 7Signal/1Ground POS Crimp ST Cable Mount Loose Piece Product Highlights:HN.D.7 SeriesInsertProduct Size = 1Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 7WAY INSERT MALE 7POS+1GND CRIMP HDCONNECTOR,INSERTHND7MALE HN.D.7.STI.C |
| Category |
Business
| Lead Time | 56 Days | Subcategory | Connector Rectangular |
| Standard Package | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 42V | Current Rating (Max) | 10A |
Mechanical
| Size | 1 | Color | Gray |
| Weight | 0.013 | Packaging | Loose Piece |
| Termination | Crimp | Contact Type | HTS HN.D |
| Mounting Type | Cable Mount | Connector Type | Insert without Contacts |
| Contact Finish | :- | Number of Rows | :3 |
| Insertion Force | Pin (Male) | Contact Material | :Copper |
| Housing Material | Thermoplastic | Primary Material | IndustrialRectangular |
| Termination Style | Crimp | 1st Contact Gender | :Pin |
| Number of Contacts | 7Signal/1Ground | Contact Termination | :Crimp |
| Number of Positions | 7+Ground | Shell Size - Insert | :1 |
Product Info
| Type | Heavy-Duty Rectangular | Gender | RCP |
| Series | :HN.D | Manufacturer | HTS |
| Product Type | Inserts | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
5-1105150-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN PIN 5.5-5 AWG CRIMP SILVER Heavy Duty Power Connectors HSSC-Sti.Ag.16 0 qmm HSS-C-Sti.Ag.16,0 qmm
5-1105050-1
te connectivity / amp
HN.D-C-STI.AG.2,5 HTS Connectors and Accessories CONN CONTACT PIN HN.D SERIES Heavy Duty Power Connectors PIN CONTACT AG 2.5 HN.D 5-1105050-1 Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CRIMP PIN, SILVER, 2.5MM HDCONNECTOR,HN.DCONTACTMAL Contact; male; 2.5mm2; HN.D; silver plated; crimped

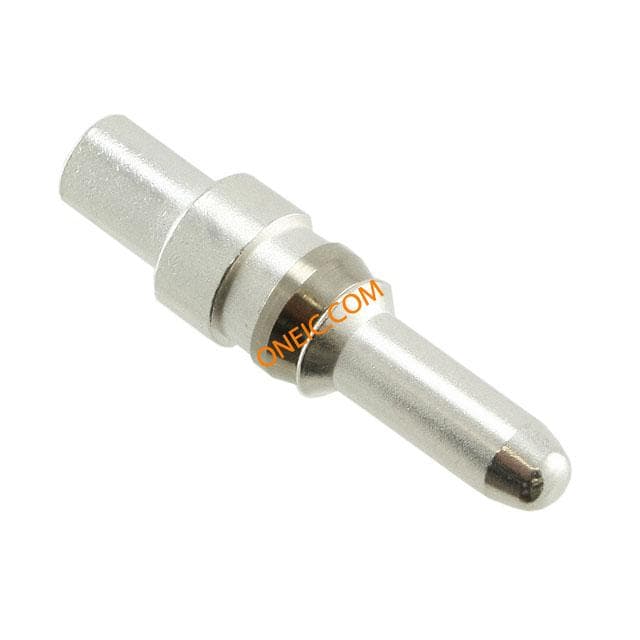

4-1105150-1
