2-103648-3
| Manufacturer | |
| Description | Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 24POS .100 UNLOADED Headers & Wire Housings RCPT 24P .100 UNLOAD 24 MTE RCPT HSG SR RIB .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3 | Voltage - Protection Rating (VPR) | 600 VACrms |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 2.24 mm [ .098 in ] | Length | 60.9 mm [ 2.4 in ] |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Wire Gauge | 22-30 AWG |
| Row Spacing | 2.54 mm | Contact Type | Female Socket |
| Polarization | Ribbed | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Crimp, Insulation Displacement Crimp (IDC) | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | Receptacle |
| Insert Material | 磷青铜 | Housing Material | Thermoplastic |
| Package Quantity | 1 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 24 | Contact Termination | Crimp |
| Number of Positions | 24 | Compatible Shell Size | 公端 |
| Mounting Hole Diameter | 带有 | Center Contact Material | 2.54 [.100] |
| Contact Layout, Typical | 同轴 | ||
Product Info
| Note | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | Type | Housing |
| Gender | RCP | Series | MTE |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65 – 105 |
Documents & Media
Similar Parts
1-104479-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 30AU CRIMP Headers & Wire Housings SKT 24-20 CU/AU 60000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .64 - 1.52 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU Short Point 系列 母 压接接线端子, 压接, 镀金触点 SHORT POINT CONT 30 DPLX STMPD LF

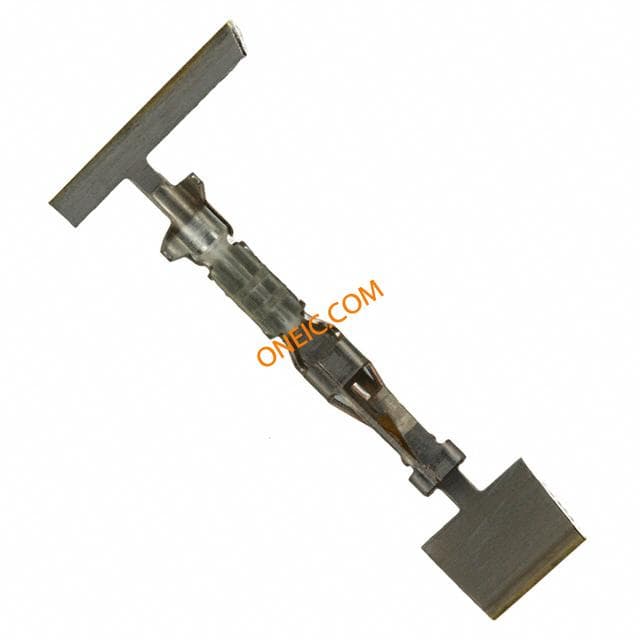

1-104481-1
