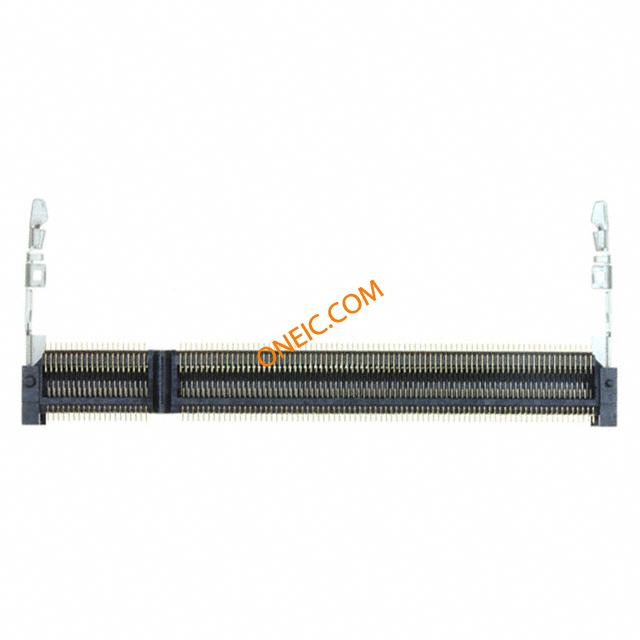

1981287-4
| Manufacturer | |
| Description | Conn SO DIMM Socket SKT 200 POS 0.6mm Solder RA SMD Tray Memory Sockets CONN SCKT SODIMM DDR2 ATCA REV IC & Component Sockets DDR2 SODIMM 9.2mm REVERSE Conn SO DIMM Socket SKT 200 POS 0.6mm Solder RA SMD Tray Product Highlights:SO DIMMGold Contact Mating Area Plating MaterialNumber of Positions = 200DRAM Type = Double Data Rate (DDR)DRAM Voltage = 1.8 VSearch Keywords:Single In-Line Memory Module, Dual In-Line Memory, Module, JEDEC MO-161, Dynamic Random Access Memory, Synchronous Dynamic Random Access Memory, Double Data Rate, DDR, DDR1, SO DDR 2, DDR3, IC sockets, Mini PCI Socket, Mini PCI Latch, Rambus RIMM, M3 (Mini Memory Module), fax modem socket, SIMM, DIMM, Mini PCI, Mini PCI Express, mSATA, SO DIMM, SODIMM SEMI-HARD TRAY DDR2 SODIMM 9.2H RVS AMC |
| Category |
Business
| Product | Memory Connectors | Product Category | IC & Component Sockets |
| Standard Package | Trays | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 1.8 | RAM Size | 1.8 |
| Memory Type | Double Data Rate (DDR) | Connector Impedance | Cam-In |
| Voltage - Supply, Digital | 1.8 V | ||
Mechanical
| Depth | 27 mm | Pitch | 0.6 mm |
| Height | 9.5 mm | Material | Stainless Steel |
| Key Color | None | Packaging | Tray |
| Body Color | 黑色 | Row Spacing | 6.2 mm |
| Termination | Solder | Pitch - Post | 6.20 [0.244] |
| Housing Color | Black | Mounting Type | Surface Mount |
| Connector Type | 内存卡 | Contact Finish | Tin |
| Flange Feature | Without | Mounting Style | Surface Mount |
| Number of Rows | 2 | Connector Style | SODIMM |
| Insert Material | 铜合金 | Profile (W x H) | Standard |
| Stacking Method | 9.20 [0.362] | Contact Material | Copper Alloy |
| Housing Material | High Temperature Thermoplastic | Length - Overall | 0.60 [0.024] |
| Mounting Feature | Reverse | Package Quantity | Tray |
| Number of Contacts | 200 | Insulation Material | Thermoplastic |
| Number of Positions | 200 | Length - Stack Height | 9.2 mm [ .362 in ] |
| Clamp Material - Plating | Tin | ||
Product Info
| Type | SO DIMM Socket | Gender | SKT |
| Features | Board Guide, Latches | Key Type | Reverse |
| Ejector Side | Both Ends | Manufacturer | Tyco Electronics |
| Product Type | SO DIMM | Center Gender | None |
| Number of Keys | 1 | Number of Bands | 2 |
