点击放大查看

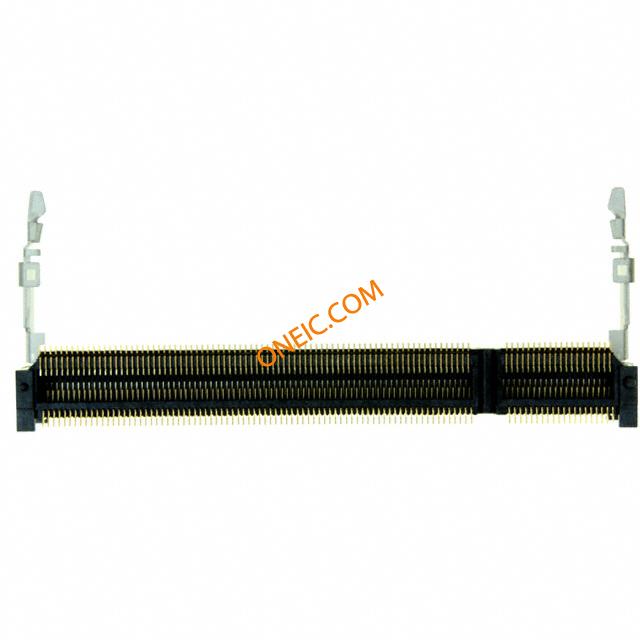

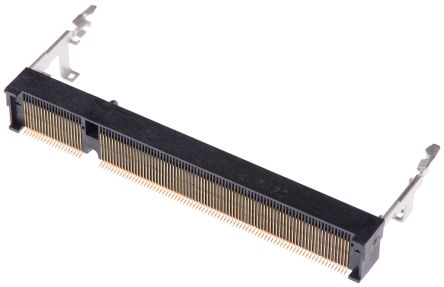

1981284-4
| Manufacturer | |
| Description | Conn SO DIMM Socket SKT 200 POS 0.6mm Solder RA SMD Tray Memory Sockets CONN SCKT SODIMM DDR2 ATCA STD Memory Card socket 200 way DDR2 SODIMM IC & Component Sockets DDR2 SODIMM 9.2mm STANDARD Conn SO DIMM Socket SKT 200 POS 0.6mm Solder RA SMD Tray Product Highlights:Socket Type = Memory CardSocket Style = SO DIMMGold Contact Plating, Mating Area, Material200 PositionsDRAM Type = Double Data Rate (DDR)Search Keywords:Single In-Line Memory Module, Dual In-Line Memory, Module, JEDEC MO-161, Dynamic Random Access Memory, Synchronous Dynamic Random Access Memory, Double Data Rate, DDR, DDR1, SO DDR 2, DDR3, IC sockets, Mini PCI Socket, Mini PCI Latch, Rambus RIMM, M3 (Mini Memory Module), fax modem socket, SIMM, DIMM, Mini PCI, Mini PCI Express, mSATA, SO DIMM, SODIMM MemoryCardsocket200wayDDR2SODIMM SEMI-HARD TRAY DDR2 SODIMM 9.2H STD AMC |
| Category |
Business
| Product | Memory Connectors | Product Category | IC & Component Sockets |
| Standard Package | Trays | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 1.8 | RAM Size | 1.8 |
| Memory Type | Double Data Rate (DDR) | Connector Impedance | Cam-In |
| Voltage - Supply, Digital | 1.8 V | ||
Mechanical
| Depth | 27mm | Pitch | 0.6 mm |
| Width | 9.2mm | Height | 9.5 mm |
| Length | 69.7mm | Material | Stainless Steel |
| Key Color | None | Packaging | Tray |
| Body Color | 黑色 | Orientation | 直角 |
| Row Spacing | 6.2 mm | Termination | Solder |
| Pitch - Post | 6.20 [0.244] | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | 母座 |
| Contact Finish | Tin | Flange Feature | Without |
| Mounting Style | SMD/SMT | Number of Rows | 2 |
| Connector Style | SODIMM | Insert Material | 铜合金 |
| Profile (W x H) | Standard | Stacking Method | 9.20 [0.362] |
| Contact Material | Copper Alloy | Housing Material | High Temperature Thermoplastic |
| Length - Overall | 0.60 [0.024] | Mounting Feature | Standard |
| Package Quantity | Tray | Size / Dimension | 69.7 x 9.2 x 27mm |
| Termination Rows | 焊接 | Termination Style | Solder |
| Number of Contacts | 200 | Insulation Material | Thermoplastic |
| Number of Positions | 200 | Length - Stack Height | 9.2 mm [ .362 in ] |
| Clamp Material - Plating | Tin | ||
Product Info
| Type | SO DIMM Socket | Gender | SKT |
| Features | Board Guide, Latches | Key Type | Standard |
| Card Type | Memory Card | Ejector Side | Both Ends |
| Manufacturer | Tyco Electronics | Product Type | SO DIMM |
| Center Gender | None | Number of Keys | 1 |
| Number of Bands | 2 | ||
