188744-1
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Strip CONN RCPT CONTACT HE13/HE14 TIN Crimp Contact 24-28 awg tin HE14 Headers & Wire Housings CRIMP SOCKET TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 28-24AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL CrimpContact24-28awgtinHE14 TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡镀镍触点 CONTACT REC HE14 COSI TIN PLATED |
| Category |
Business
| Other Names | A107025CT | Product Category | Headers & Wire Housings |
| Standard Package | Tape & Reel | Factory Pack Quantity | 20000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | 15mΩ | Current Rating (Max) | :3A |
Mechanical
| Weight | 0.007 | Packaging | Tape & Reel (TR) |
| Wire Gauge | 24-28 AWG | Termination | Crimp |
| Weight (g): | 12 | Contact Size | :24 |
| Contact Type | Signal | Pin or Socket | Socket |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Tin Over Nickel |
| Contact Material | Phosphor Bronze | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Contact Termination | Crimp |
| Contact Finish Thickness | 100µin (2.54µm) | Wire Gauge or Range - AWG | :28AWG |
| Wire Gauge or Range - mm2 | :0.22mm² | Diameter - Outside, Non-Expanded | :1.5mm |
Product Info
| Name | 端子 | Unit | PCS |
| Gender | SKT | Series | HE13 / HE14 |
| Quantity | 80000.0 | CAD Drawing | 3D CAD Model |
| Product Type | Contacts | Manufacturing Country | 波兰 |
| Equipment Part Numbers | 188744-1.pdf | Minimum Order Quantity | 1 |
| For Use With/Related Products | :0.1 AMPMODU Headers, Housings | ||
Environmental
| Operating Temperature | +105°C | Usable Temperature Range | -65to+105°C |
| Operating Temperature - Junction | 105°C | ||
Documents & Media
Similar Parts
281839-6
te connectivity / amp

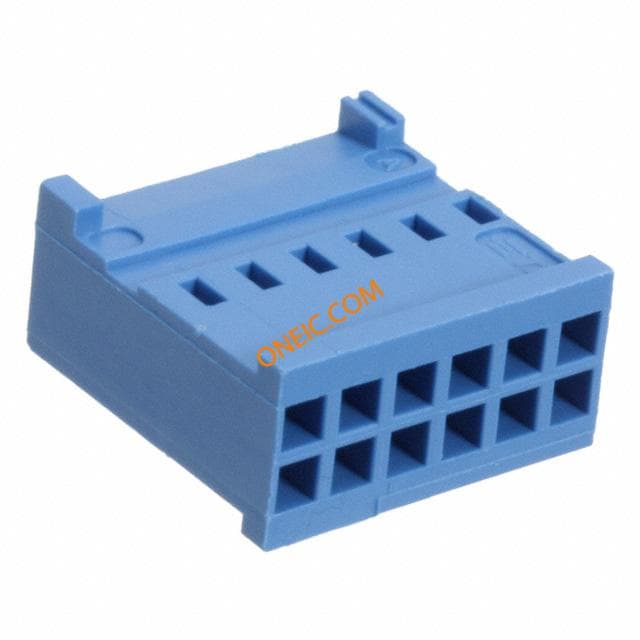

Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 2X6POS IDC .100 12way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X06 POS Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 12WAY 12waydoublerowHE14crimpsocketshell Cable socket housing Pitch2.54 mm Poles 2 x 6 HE-14, 281839-6, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X6 P
1-281838-2
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 12POS .100 CRIMP 12way single row HE14 crimp socket shell Headers & Wire Housings RECPT 1X12P CRIMP HE14 Conn Housing RCP 12 POS 2.54mm Crimp ST Loose Piece Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 12WAY Connector: wire-board; HE14; plug; female; for cable; PIN:12 TE Connectivity AMPMODU HE13/HE14 系列 2.54mm 节距 12 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 12 P
281839-3
te connectivity / amp

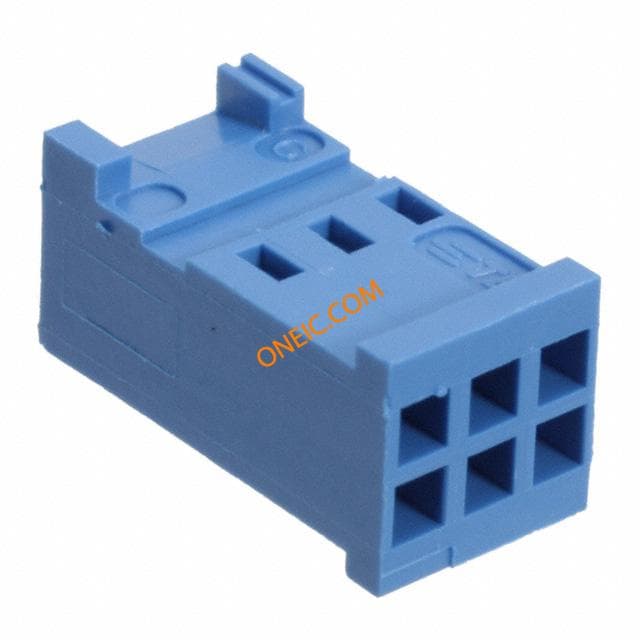

Conn Housing RCP 6 POS 2.54mm Crimp ST Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 3X2POS IDC .100 6 way double row HE14 crimp socket shell Headers & Wire Housings RECPT 2X03 POS Conn Housing RCP 6 POS 2.54mm Crimp ST Loose Piece Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 6WAY 6waydoublerowHE14crimpsocketshell Plug; wire-board; female; PIN:6; w/o terminals; 2.54mm; for cable Cable socket housing Pitch2.54 mm Poles 2 x 3 HE-14, 281839-3, TE Connectivity TE Connectivity AMPMODU HE13/HE14 系列 2 行 2.54mm 节距 3 路 直 母 电缆安装 PCB 连接器外壳 HOUSING HE13 HE14 COSI 2X3 P
182734-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN CONTACT 24-28AWG TIN CRIMP HE14 crimp terminal Headers & Wire Housings CRIMP SOCKET TIN HE14 182734-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Terminate To WireWire Insulation Diameter = .80 - 1.50 mmWire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET,HE14,PK200 HE14crimpterminal Contact; female; 0.08÷0.24mm2; 24÷28AWG; HE14; tinned; crimped Crimp socket Female, 182734-2, TE Connectivity TE Connectivity AMPMODU HE14 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT REC HE14 COSI LOOSE P
