点击放大查看
182921-1
| Manufacturer | |
| Description | Conn CPC SKT 4 POS ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RCPT CPC 4POS PANEL MT REV 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector 11-4 RCPT REV SEX Conn CPC SKT 4 POS ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, CPC, SIZE 11, 4WAY, SKT Housing,rcpt,series1,shellsize11,4W Connector: circular; Series: CPC Series 1; socket; female; PIN:4 Female receptacle series CPC 4-pin CPC 1 4P Female 11, 182921-1, TE Connectivity TE Connectivity 4路 面板安装 直向 连接器 插座 , 母触点 CPC SQ FL. RCPT REV SEX |
| Category |
Business
| Tradename | CPC Series 1 | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | UL Listing | Recognized |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | Yes | Material Flammability Rating | UL 94V-0 |
Electrical
| Number of Channels | 4 | Connector - Voltage Input | w/o terminals |
Mechanical
| Sealed | No | Weight | 0.01 |
| Packaging | Bulk | Shell Size | 11 |
| Orientation | Keyed | Shell Style | Receptacle |
| Thread Size | 5/8 - 24 UNEF-2A | Contact Size | 16 |
| Contact Type | Crimp | Housing Color | Black |
| Mounting Type | Panel Mount | Connector Type | Receptacle for Female Contacts |
| Contact Finish | :- | Fastening Type | Threaded |
| Mounting Style | Panel | Package / Case | size 11 |
| Connector Style | Receptacle | Insertion Angle | :11-4 |
| Locking Feature | threaded joint, external thread | Material - Body | :Thermoplastic |
| Contact Material | :- | Housing Material | Thermoplastic |
| Package Quantity | 25 | Panel Mount Type | Square Flange |
| Primary Material | Connector | Connector - Cable | socket |
| Termination Style | Wire | 1st Contact Gender | Female |
| Mating Orientation | Keyed | Number of Contacts | 4 |
| Contact Termination | :- | Insulation Diameter | 2.54 [0.100] |
| Number of Positions | 4 | Shell Size - Insert | All Plastic |
| Shell Material, Finish | Thermoplastic | Material - Housing & Prism | thermoplastic |
| 1st Connector Mounting Type | :Panel | 2nd Connector Mounting Feature | Reverse |
Product Info
| Spg | 100 | Note | Contacts Not Provided |
| Type | CPC | Gender | RCP |
| Series | Series 1 | Preloaded | No |
| CAD Drawing | 3D CAD Model | Manufacturer | Series1 |
| Product Type | Connector | Adapter Series | CPC Series 1 |
| Number of Units | 1 | Other Specifications | With |
| For Use With/Related Products | Socket Contacts | ||
Environmental
| Ingress Protection | IP65 | ||
Documents & Media
Similar Parts
182651-1
te connectivity / amp
Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Standard Circular Connector 11-4 PLUG Circular Plastic Connectors CONN PLUG 4POS REV FREE HANGING 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, PIN CONTACT, 4WAY 4wpincontactcablemntplug,13A,ser1 Connector: circular; Series: CPC Series 1; plug; male; PIN:4 Cable plug, series CPC 4-pin CPC 1 4P Male 11, 182651-1, TE Connectivity TE Connectivity 4路 自由悬挂 直向 连接器 插头 RECEPTACLE CASE
206429-1
te connectivity / amp
Conn Sealed CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN PLUG CPC 4POS REV SER 1 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector PLUG 4 POSITION shell size 11 Conn Sealed CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONN, CIRCULAR, PLUG, 4 WAY, 11-4 ConnectorHousing;CPCPlugAssy;4Pos.;Sz.11;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:4 Plug CPC1 Poles=4, accepts male contacts / Free hanging/cable mount, 206429-1, TE Connectivity TE Connectivity 4路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 11-4

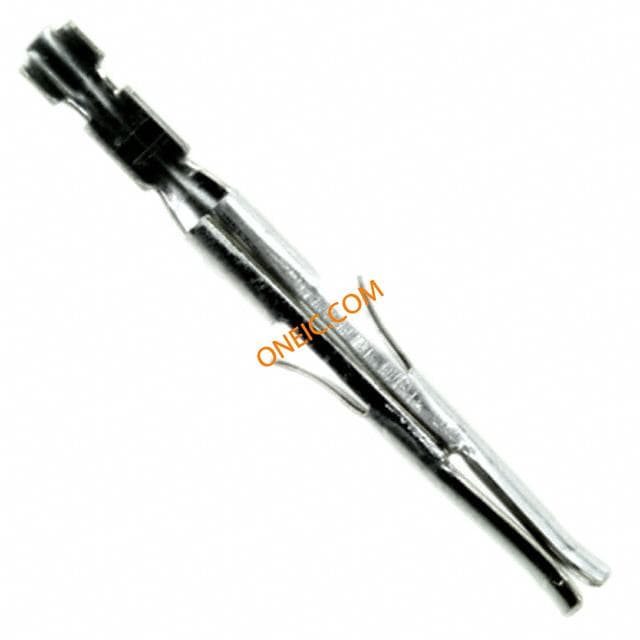

207437-2
