182647-1
| Manufacturer | |
| Description | Conn CPC SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Circular Plastic Connectors CONN PLUG CPC 4POS FREE HANGING 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector 11-4 PLUG Conn CPC SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 11-4, FREE 4waysktcontactcablemntplug,13A,ser1 Connector: circular; Series: CPC Series 1; plug; female; PIN:4 Plug CPC 1 4P Male 11, 182647-1, TE Connectivity TE Connectivity 4路 电缆安装 直向 连接器 插头 , 母触点 11-4 CPC PLUG |
| Category |
Business
| Tradename | CPC Series 1 | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | UL Listing | Recognized |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant / ELV compliant | Approval Agency Marking | Yes |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Resistance | None | Voltage Rating | 600 V ac |
| Voltage - Working | :250V | Number of Channels | 4.0 |
| Current Rating (Max) | :13A | Insulation Resistance | :5000Mohm |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Sealed | No | Weight | 0.008 |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 11 | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 5/8 - 24 UNEF-2A | Contact Form | 4Signal |
| Contact Size | 16 | Contact Type | Socket |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Housing | Fastening Type | Threaded Coupling |
| Mounting Style | Free Hanging | Package / Case | size 11 |
| Connector Style | Plug | Insertion Angle | :11-4 |
| Locking Feature | threaded joint, internal thread | Material - Body | :Glass Filled Thermoplastic |
| Housing Material | Thermoplastic - GF | Package Quantity | 100 |
| Connector - Cable | plug | 1st Contact Gender | Female |
| Color - Connectors | :Black | Mating Orientation | Keyed |
| Number of Contacts | 4 | Number of Positions | 0.0 |
| Shell Size - Insert | All Plastic | Shell Material, Finish | Thermoplastic |
| Material - Housing & Prism | thermoplastic | 1st Connector Mounting Type | :Free |
| 2nd Connector Mounting Feature | Standard | Shell Size - Insert (Convert To) | 11-4 |
Product Info
| Spg | 100 | Note | Contacts Not Provided |
| Type | CPC | Gender | PL |
| Series | Series 1 | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | Housings |
| Adapter Series | CPC Series 1 | Number of Units | 1 |
| RF Family/Standard | 182647 | Other Specifications | With |
Environmental
| Ingress Protection | Without | Operating Temperature | :105°C |
Documents & Media
Similar Parts
163084-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 18-16AWG CRIMP GOLD Contact female 18-16awg crimp,gold Standard Circular Contacts 062 SOC.ASS. TYP3+ Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, 18-16AWG Contactfemale18-16awgcrimp,gold Contact; female; 0.75÷1.5mm2; 16÷18AWG; Type III+; gold plated TE Connectivity Type III 系列 13A 母 压接端接 圆形 连接器 触芯, 18 → 15 AWG，16 AWG 线规格 062 SOC.ASS. TYP3+
206153-1
te connectivity / amp
Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN RECEPT CPC 4POS STD SER 1 4 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECEPTACLE 4 PIN free hanging s.s. 11 Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, RCPT, 11-4, FREE ConnectorHousing;CPCReceptacle;4Pos.;Sz.11;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; male; w/o terminals Connector: circular; Series: CPC Series 1; plug; male; PIN:4 Receptacle CPC1 Poles=4, accepts male contacts / Free hanging/cable mount, 206153-1, TE Connectivity TE Connectivity 4路 电缆安装 直向 连接器 插座 , 公触点 11-4 F.H. RECEPT. STD. SEX
182658-1
te connectivity / amp
Connector Accessories Cable Clamp Thermoplastic Black CPC Accessories CONN CABLE CLAMP CPC SIZE 11 CPC cable clamp,Shell size 11B Standard Circular Connector 11 SIZE STD CLAMP Cable Clamps and Clips Clamp Thermoplastic Black Individual Cable Clamps and Clips Clamp Screw Thermoplastic Black Individual Cable Clamps and Clips Clamp Screw Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 11Body Style = StraightCable Diameter (Max.) = 8.36 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, SIZE 11 Cabel hood and fastener; Series: CPC; Case: size 11; UL94V-0 Cap size 11 8.3 mm, 182658-1, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 8.36mm 捆束直径 11 SIZE CPC STD CLAMP
163084-1
te connectivity / amp
062 SOC.ASS. TYP3+ Multimate CONN SOCKET 18-16AWG CRIMP TIN Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 15AWG Standard Circular Contacts 062 SOC.ASS. TYP3+ Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 18-16AWG FEMALECRIMPCONTACTIII+ Contact; female; 0.75÷1.5mm2; 15÷18AWG; Type III+; tinned; crimped Crimp contact female, 163084-1, TE Connectivity TE Connectivity Type III + 系列 母 压接端接 圆形 连接器 触芯, 使用于III+ 型系列连接器, 18 → 15 AWG 线规格 RECEPTACLE
163088-2
te connectivity / amp
TYPE III SOCKET Multimate CONTACT SKT 20-24AWG CRIMP GOLD Type III+ Series Female Circular Connector Contact, Crimp,Wire size 18 to 15AWG Standard Circular Contacts SOCKET 24-20 AWG 163088-2 Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, III+, GOLD 1.57MMSKT24-20AWGAU Contact; female; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated Crimp contact 13 A Female 20...24 AWG, 163088-2, TE Connectivity TE Connectivity Type III+ 系列 母 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 24 → 20 AWG 线规格 LOOSE PC SOCKET TYPEIII+ CONTACT SIZE16
206403-1
te connectivity / amp

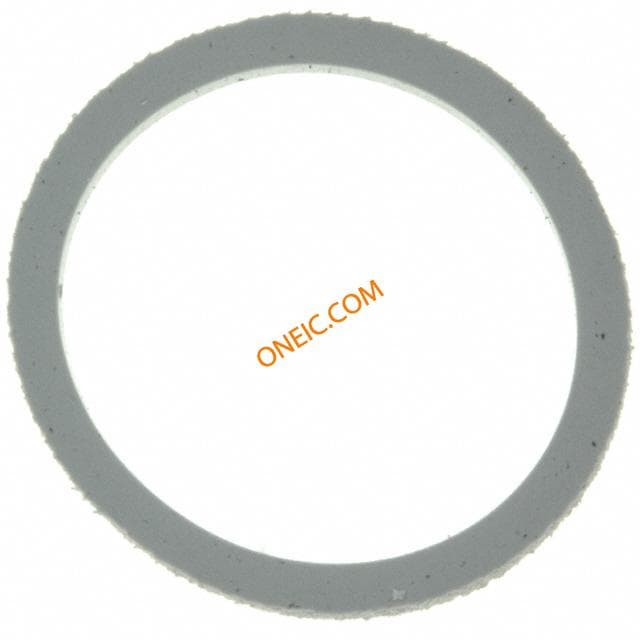

Connector Accessories Peripheral Seal Elastomer CPC Accessories CONN SEAL PERIPHERAL SIZE 11 Circular Connector Seal Diameter 13.05mm Standard Circular Connector PERIPHERAL SEAL 11 Connector Accessories Peripheral Seal Elastomer Product Highlights:Peripheral SealShell Size = 11Search Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CPCPERIPHERALSEAL(FORRECEPTACLESONLY),SHELLSZ.11 Peripheral Seal,Housing size 11, 206403-1, TE Connectivity 连接器封套, 13.05mm直径 #11 PERIPHERAL SEAL
