182645-1
| Manufacturer | |
| Description | Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS FREE HANGING 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector 13-9 PLUG Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SOCKET CONTACT, 9WAY Connector: circular; Series: CPC Series 1; plug; female; PIN:9 Plug CPC 1 9P Male 13, 182645-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插座 13-9 CPC PLUG |
| Category |
Business
| Tradename | CPC Series 1 | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | UL Listing | Recognized |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | :CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | Yes | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Number of Channels | 9 | Current Rating (Max) | :13A |
| Insulation Resistance | :5000Mohm | Connector - Voltage Input | w/o terminals |
Mechanical
| Sealed | No | Weight | 0.008 |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 13 | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 3/4 - 20 UNEF-2A | Contact Form | 9Signal |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Plug for Female Contacts | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | size 13 |
| Connector Style | Plug | Insertion Angle | :13-19 |
| Locking Feature | threaded joint, internal thread | Material - Body | :Nylon (Polyamide) |
| Housing Material | Thermoplastic | Package Quantity | 50 |
| Connector - Cable | plug | Termination Style | Wire |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Mating Orientation | Keyed | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Size - Insert | All Plastic |
| Shell Material, Finish | Thermoplastic | Material - Housing & Prism | thermoplastic |
| 1st Connector Mounting Type | :Free | 2nd Connector Mounting Feature | Standard |
Product Info
| Spg | 100 | Note | Contacts Not Provided |
| Type | CPC | Gender | PL |
| Series | Series 1 | Preloaded | No |
| CAD Drawing | 3D CAD Model | Product Type | Connector |
| Adapter Series | CPC Series 1 | Number of Units | 1 |
| RF Family/Standard | 182645 | Other Specifications | Without |
| For Use With/Related Products | Socket Contacts | ||
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
163084-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 18-16AWG CRIMP GOLD Contact female 18-16awg crimp,gold Standard Circular Contacts 062 SOC.ASS. TYP3+ Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, 18-16AWG Contactfemale18-16awgcrimp,gold Contact; female; 0.75÷1.5mm2; 16÷18AWG; Type III+; gold plated TE Connectivity Type III 系列 13A 母 压接端接 圆形 连接器 触芯, 18 → 15 AWG，16 AWG 线规格 062 SOC.ASS. TYP3+
182663-1
te connectivity / amp
Connector Accessories Clamp Thermoplastic Black Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 13 CPC cable clamp,Shell size 13 Standard Circular Connector 13 SIZE STD CLAMP Connector Accessories Clamp Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 13Body Style = StraightCable Diameter (Max.) = 11.51 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CIRCULAR CLAMP, SIZE 13, THERMOPLASTIC Cabel hood and fastener; Series: CPC; Case: size 13; UL94V-0 Cap size 13 11.5 mm, 182663-1, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 11.51mm 捆束直径 13 SIZE CPC STD CLAMP
182922-1
te connectivity / amp
Conn CPC PIN 9 POS ST Panel Mount 9 Terminal 1 Port Standard Circular Connector 13-9 RCPT STD SEX CPC Connectors CONN RCPT CPC 9POS PANEL MT 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Conn CPC PIN 9 POS ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, CPC, SIZE 13, 9WAY, PIN Housing,rcpt,series1,shellsize13,9W Connector: circular; Series: CPC Series 1; socket; male; PIN:9 Receptacle CPC 1 9P Male 13, 182922-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 公触点 CPC SQ.FL.RCPT STD SEX

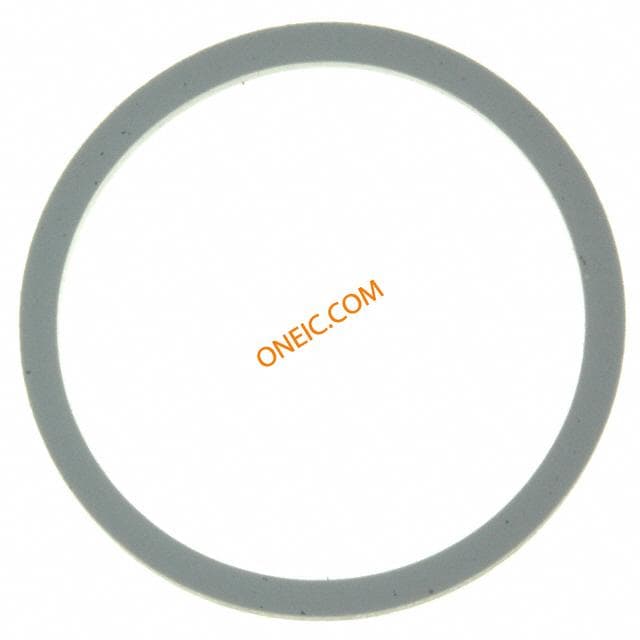

206403-4
