179228-7
| Manufacturer | |
| Description | Headers & Wire Housings RCPT 7 POS CRIMP 2mm 2mm AMP CT CONN RCPT 7POS SGL CRIMP 2MM Receptacle housing, 2mm, 7 way, CT Conn Housing RCP 7 POS 2mm Crimp ST Cable Mount Conn Housing RCP 7 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 7Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Receptaclehousing,2mm,7way,CT TE Connectivity AMP CT 系列 2mm 节距 7 路 直 母 压接连接器外壳 CT CRIMP-2 REC HSG 7P NATURAL |
| Category |
Business
| Tradename | Common Termination | Other Names | A98607 |
| Product Category | Headers & Wire Housings | Standard Package | 40,000 |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | CSA File Number | LR 7189 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 125 VAC, 125 VDC | Resistance - Input | 1000 |
| Connector Impedance | 压接 | Current Rating (Max) | 4/Contact A |
| Voltage - Supply (Min) | 125VDC/125VAC | Voltage - Protection Rating (VPR) | 2000 VAC |
Mechanical
| Color | Natural | Depth | 6.6mm |
| Pitch | 2 mm | Shape | 矩形 |
| Width | 4.6mm | Height | 4.6 mm |
| Length | 16mm | Packaging | Bulk |
| Body Color | 自然 | Wire Gauge | 22-30 |
| Orientation | 直 | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | Natural |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Crimp |
| Mounting Style | Wire | Number of Rows | 1 |
| Connector Usage | Receptacle | Housing Material | Nylon |
| Length - Overall | 2.00 [0.079] | Package Quantity | 2500 |
| Panel Mount Type | Without | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 7 |
| Contact Termination | Crimp | Number of Positions | 7 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Contact Layout, Typical | 同轴 | Static Discharge Shielding | 不带 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | Female | Series | AMP CT |
| Sealable | 否 | Product Type | Receptacles / Sockets - Housings |
| Connection Type | Wire | For Use With/Related Products | Wire-to-Board Connector |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -30C to 105C |
Documents & Media
Similar Parts

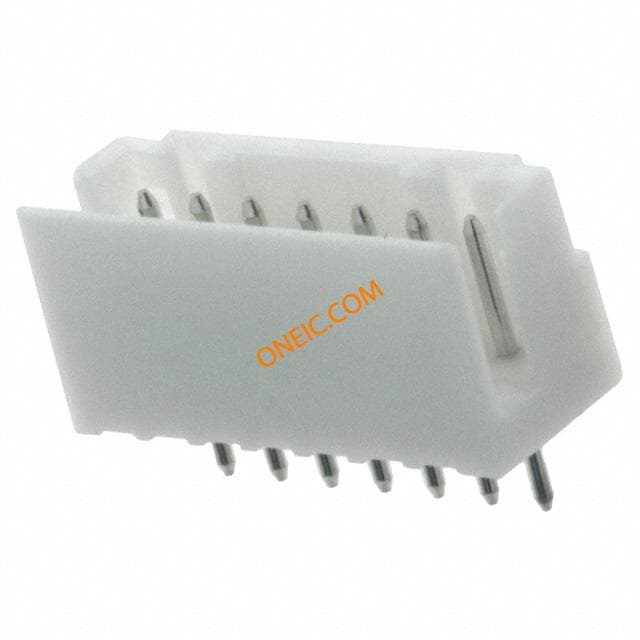

292133-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 7POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 7P W/O KIN 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:Wire-to-BoardApplies To Printed Circuit Board2.00 mm CenterlineConnectorHeaderSearch Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 7P W/O KIN
179227-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 26-22AWG CRIMP Crimp socket contact, 22-26 AWG, CT Headers & Wire Housings CONTACT CRIMP RECPT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, SKT GOLD CRIMP CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CONTACT,RECEPTACLE,CRIMPTYPEII TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 CRIMP TYPE II REC CONTACT
179609-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 30-26AWG CRIMP Crimp socket contact, 26-30 AWG, CT Headers & Wire Housings RCPT CONTACT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, CRIMP, SOCKET, 30-26AWG, REEL AMPCTCRIMPType2ReceptacleContact TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 AMP CT CRIMP TTYPE-2 REC CONT.

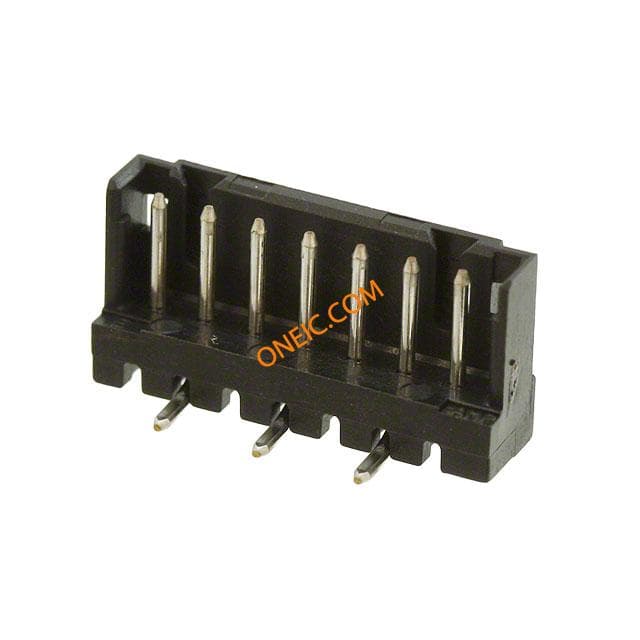

292172-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 7POS SMD VERT TIN Headers & Wire Housings CT POST HDR ASSY 7P IN-TUBE BL CT POST HDR ASSY 7P IN-TUBE BL CT POST HDR ASSY 7P IN-TUBE BL Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors,
179227-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN SOCKET 2MM 22-26AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, AMP CT CRIMP-2 REC CONT AU

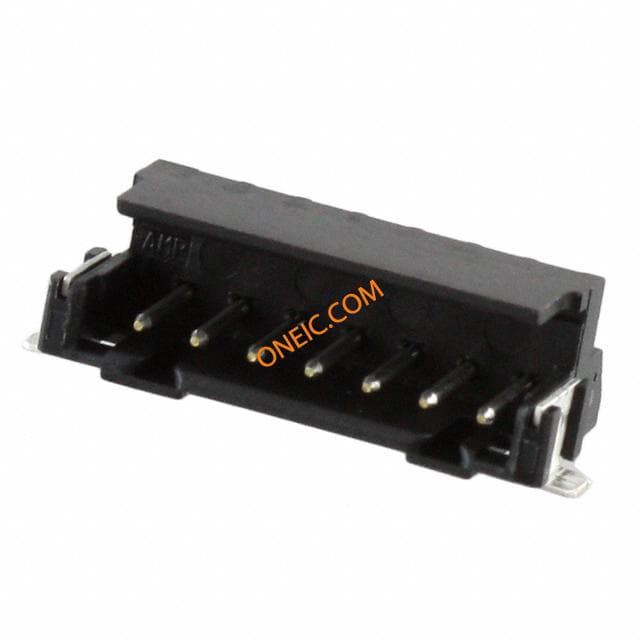

2-292173-7
