176271-1
| Manufacturer | |
| Description | Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece Board to Board & Mezzanine Connectors 2P PLUG HOUSING 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG HOUSING 2POS .156 Housing,plug,free hanging,3.96mm2way Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPlugLoose Piece3.96 mm Centerline, MatrixNumber of Positions = 2Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector PLUG, 2 WAY Housing,plug,freehanging,3.96mm2way TE Connectivity AMP Universal Power 系列 1 行 3.96mm 节距 2 路 直 公 电缆安装 PCB 壳体 AMP UNIVERSAL POWER PLUG 2P |
| Category |
Business
| Other Names | 1762711 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 600 |
| Current Rating (Max) | 13 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 19.3mm |
| Pitch | 3.96 mm | Width | 9.65mm |
| Height | 9.65 mm | Length | 9.06mm |
| Weight | 0.488 | Packaging | Bulk |
| Wire Gauge | 16-26 AWG | Contact Type | Female Socket |
| Pitch - Post | 3.96 [.156] | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Tin | Fastening Type | Latch Lock |
| Number of Rows | 1 | Locking Feature | Latch |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Length - Overall | 9.06 mm | Package Quantity | Loose Piece |
| Primary Material | Connector | 1st Contact Gender | :Socket |
| Mating Orientation | Without | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
| Shell Size - Insert | :- | Contact Layout, Typical | In-Line |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Amp Universal Power |
| CAD Drawing | 3D CAD Model | Manufacturer | 176271Series |
| Product Type | Plugs | For Use With/Related Products | Universal Power Connector |
Environmental
| Operating Temperature | -30C to 105C | ||
Documents & Media
Similar Parts
175152-1
te connectivity / amp

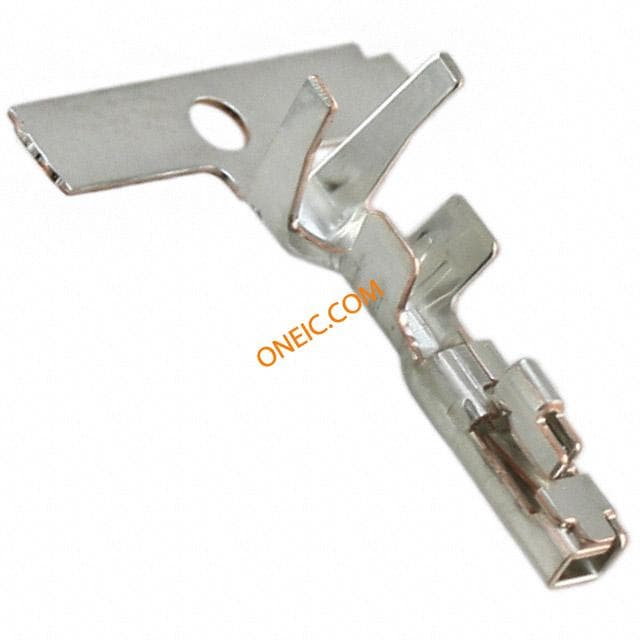

Contact SKT Crimp ST Cable Mount Strip CONN RCPT 20-16AWG TIN Contact,crimp,receptacle,Sn,20-16awg Power to the Board PIN 16-20 AWG RL AU Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 1.70 - 3.30 mmReceptacleStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector TE Connectivity AMP Universal Power 系列 母 压接接线端子, 压接, 镀锡触点 UNIVERSAL POWER REC
176975-4
te connectivity / amp
Conn Power HDR 2 POS 3.96mm Solder ST Thru-Hole 2 Terminal 1 Port Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN HEADER 2POS VERT TIN .156 AC Power Plugs & Receptacles UNIV POWER MOD R/A HEADER
175151-1
te connectivity / amp

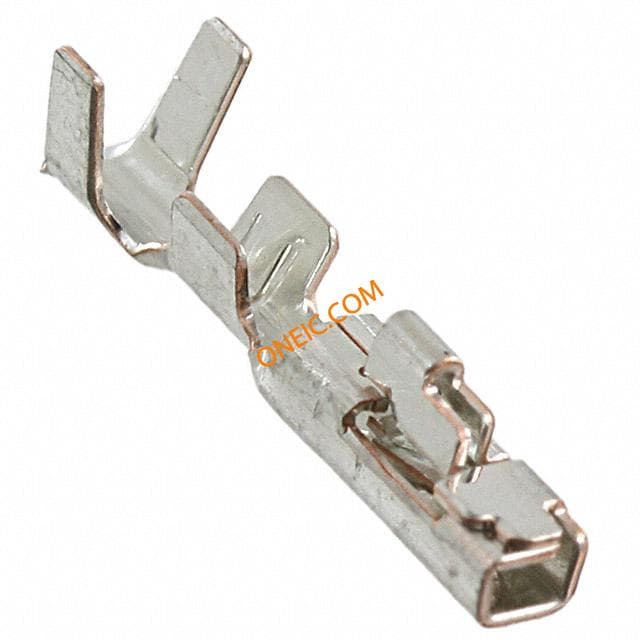

Contact SKT Crimp ST Cable Mount Strip CONN RCPT 26-22AWG CRIMP TIN Contact, Rec, 26-22 AWG, U-P Power to the Board AMP UNIVERSAL POWER REC CONT. 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmReceptacleStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector Contact,Rec,26-22AWG,U-P TE Connectivity AMP Universal Power 系列 母 压接接线端子, 压接, 镀锡触点 AMP UNIVERSAL POWER REC CONT.
