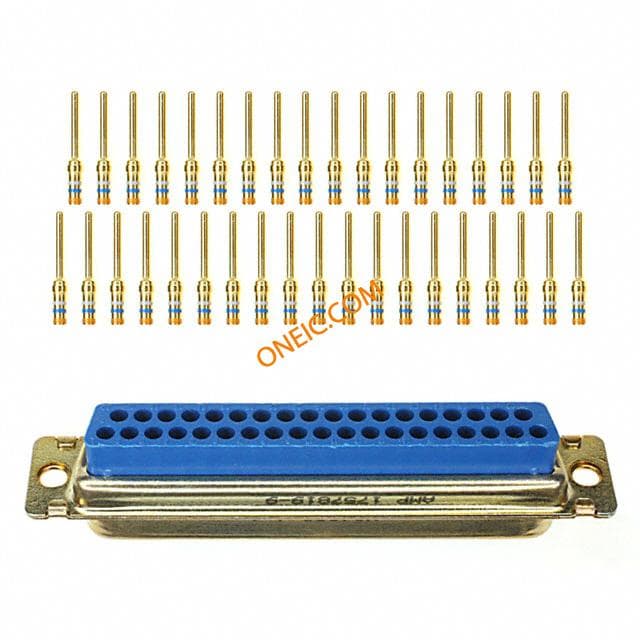

1757840-4
| Manufacturer | |
| Description | Conn D-Subminiature SKT 37 POS Solder RA Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors AMPLIMITE R/A RCPT ASY 109 ZN 4 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE,R/A RCPT ASY,109,ZN,4 AMPLIMITE,R/A RCPT ASY,109,ZN,4 Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub |
| Category |
Business
| Standard Pack | 6 | Part # Aliases | M24308 M24308/23-52 |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Qualification | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | Yes | ||
Electrical
| Connector Impedance | No | ||
Mechanical
| Diameter | 0.76 [0.030] | Shell Size | 4 |
| Contact Size | 20 | Non-Magnetic | No |
| Mounting Type | Right Angle | Shell Plating | Zinc |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Shell Material | Steel | Contact Material | Brass, Beryllium Copper |
| Termination Style | Through Hole | Number of Contacts | 37 |
| Number of Positions | 37 | Bushing, Grommet Type | No |
| Mounting Hole Diameter | 2.92-3.18 [.115-.125] | Termination Post Length | 4.78 [0.188] |
Product Info
| Gender | Receptacle | Series | 109 |
| Density | Standard | Socket Type | With |
| Manufacturer | Tyco Electronics | Product Type | Connector |
| Connection Type | Printed Circuit Board | Equipment Part Numbers | M24308/23-52 |
