1757829-4
| Manufacturer | |
| Description | Conn D-Subminiature PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn D-Subminiature PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Printed Circuit BoardNumber of Positions = 37Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,PLUG ASY,POSTD,109,ZN,4 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| Qualification | No | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | Yes |
Electrical
| Connector Impedance | No | Connector - Voltage Input | No |
Mechanical
| Outline | 4 | Diameter | 0.76 [0.030] |
| Packaging | 包装 | Shell Size | 4 |
| Termination | Solder | Contact Size | 20 |
| Non-Magnetic | No | Shell Finish | 锌 |
| Mounting Type | Through Hole | Shell Plating | Zinc |
| Terminal Size | 20 | Connector Type | 印刷电路板 |
| Contact Finish | Gold over Nickel | Mounting Style | Mounting Holes |
| Number of Pins | With | Shell Material | Steel |
| Insert Material | Aluminum Alloy | Contact Material | Brass or Beryllium Copper |
| Housing Material | 钢 | Panel Mount Type | 垂直 |
| Connector - Cable | 否 | Termination Style | 插针 |
| Number of Positions | 37 | Plating - Thickness | Clear Blue Trichromate |
| Bushing, Grommet Type | No | Mounting Hole Diameter | 3.05 [.120] |
| Termination Post Length | 4.78 [0.188] | ||
Product Info
| Note | For solder dip product see part number 1757829-9. | Type | D-Subminiature |
| Gender | PIN | Series | 109 |
| Density | Standard | Arrangement | MS18276-1 |
| Manufacturer | Tyco Electronics | Product Type | Connector |
| Connection Type | Printed Circuit Board | Equipment Part Numbers | M24308/24-10 |
Similar Parts
M24308/2-4F
te connectivity / amp
Conn D-Subminiature SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port D-Sub Standard Connectors 37P RECEPTACLE Conn D-Subminiature SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port
$245.7520
Details
M24308/2-9F
te connectivity / amp
Conn D-Subminiature RCP 37 POS Crimp Thru-Hole 37 Terminal 1 Port
$176.3995
Details

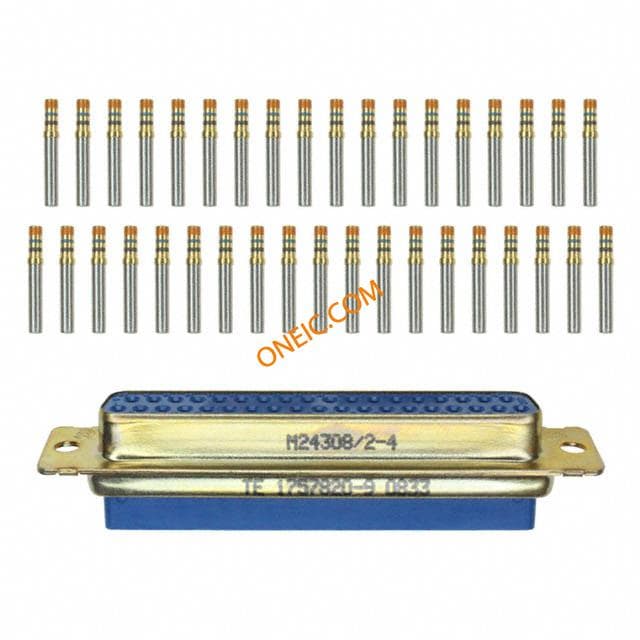

M24308/2-4
