175019-1
| Manufacturer | |
| Description | Quick Disconnect Terminal 16-22AWG RCP 15.9mm 6.8mm Pre-Tin Strip Automotive Connectors 187 FLAG REC 22-16 Positive Lock Connectors CONN RCPT .187 FLAG 22-16AWG Quick Disconnect Terminal 16-22AWG RCP 15.9mm 6.8mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmLine = AMP POSITIVE LOCK EX SeriesReceptacle Style = FlagWire Range = 0.30-1.40² [22-16] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL EX MKII 187 REC 22-16AWG PTBR |
| Category |
Business
| Product | Quick Connect Terminals | Other Names | A100920CT |
| Product Category | Automotive Connectors | Standard Package | 4,000 |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Core Type | Open | Voltage - Max | 250 |
| Switch Function | 快速断开, 快速断开 | ||
Mechanical
| Color | Not Required | Depth | 6.8 mm |
| Finish | Pre-Tin | Length | 15.9 mm |
| Material | Brass | Key Color | None |
| Packaging | Reel | Tab Width | 4.75 x 0.51 [.187 x .020] |
| Thickness | 0.28 [0.011] | Cable Type | 分离式导线 |
| Insulation | Not Insulated | Tab Length | 0.248" (6.30mm) |
| Wire Gauge | 16-22 AWG | Termination | Crimp |
| Body Material | Brass | Mounting Type | Right |
| Tab Thickness | 0.050" (1.27mm) | Terminal Type | Angled - 90°, Flag |
| Cable Material | Stranded | Connector Type | No |
| Contact Finish | Tin | Mounting Style | Wire |
| Plating - Body | Pre-Tin | Connector Style | Flag |
| Connector Usage | Wire & Cable | Insert Material | 黄铜 |
| Contact Material | Brass | Length - Overall | AMP POSITIVE LOCK EX Series |
| Package Quantity | Strip | Wire Termination | No |
| Termination Style | Crimp | Fits Terminal Size | 1.7 – 4.32 mm [ .066 – .17 in ] |
| Insulation Diameter | 1.70-4.32 [.066-.170] | Insulation Material | No |
| Thickness - Overall | .3 mm [ .011 in ] | Pin Size - Above Flange | 4.75 mm [ .187 in ] |
| Pin Size - Below Flange | .5 mm [ .019 in ] | Wire Gauge or Range - AWG | 22-16 |
| Wire Gauge or Range - mm2 | 0.30-1.40² [22-16] | Diameter - Outside, Non-Expanded | 4.32 mm [ .17 in ] |
Product Info
| Type | Quick Disconnect Ter | Gender | Female |
| Coded, Keyed | No | Product Type | Receptacle |
Environmental
| Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] | ||
Documents & Media
Similar Parts

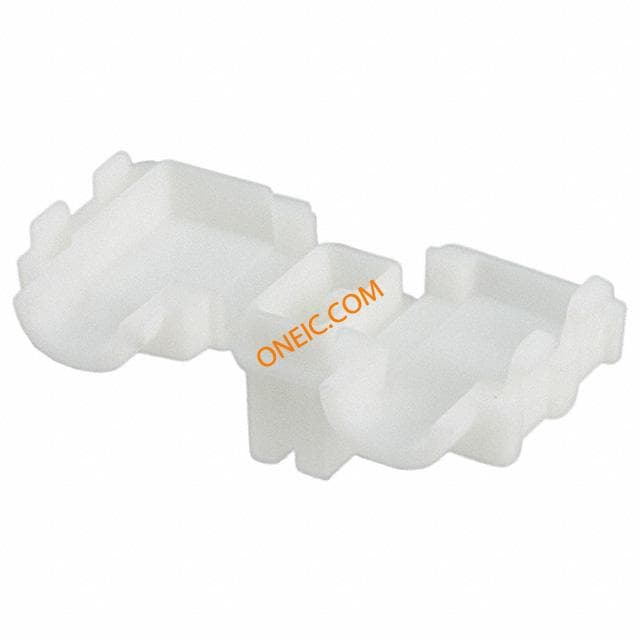

1-178708-1
